Airports for X-Plane

Clayton - Clayton Muni

Airport details

CountryUnited States of America
StateNew Mexico
RegionK2
AirspaceAlbuquerque Ctr
MunicipalityClayton
Elevation4963ft (1513m)
TimezoneGMT -7
Coordinates36.44628, -103.14995
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKCAO
IATA codeCAO
FAA codeCAO

Communication

Clayton Muni ASOS120.625
Clayton Muni CTAF/UNICOM122.800
Nearby Points of Interest:
Rabbit Ears
-
Amistad Gymnasium

Runway info

Runway 2 / 20
 length1924m (6312ft)
 bearing36° / 216°
 width23m (75ft)
 surfaceasphalt
 displ threshold116m (381ft) / 0m (0ft)
Runway 12 / 30
 length1251m (4104ft)
 bearing124° / 304°
 width18m (60ft)
 surfaceasphalt

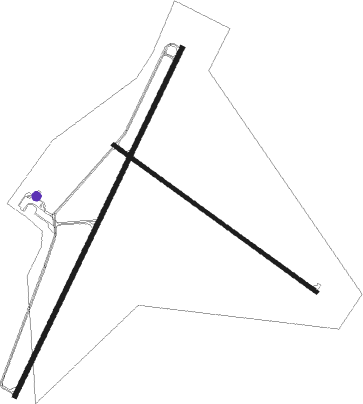

Airport layout - parking location Hangar


Parking locations

 Hangar  Hangars  Tie-Down

Nearby beacons

codeidentifierdistbearingfrequency
DHTDALHART VORTAC36.2120°112
TBETOBE VOR/DME53.3331°114.05

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02ASOYA (36°)ASOYA
CACAV (24mi, 35°) 7600ft
RW02CACAV (36°)CACAV 7600ft
RW02DHT (300°)DHT
DUBEC (34mi, 277°) 9000ft
CACAV (6mi, 343°) 7600ft
 RNAVCACAV 7600ft
ACERO (6mi, 36°) 6700ft
ZEMIB (2mi, 36°) 5960ft
KCAO (4mi, 38°) 5015ft
(6038mi, 109°) 5216ft
CEBBA (6031mi, 290°) 8000ft
CEBBA (turn)
RW20ACAGU (173°)ACAGU
BOTAC (10mi, 131°) 8000ft
CEBBA (5mi, 161°) 7600ft
RW20CEBBA (215°)CEBBA 7600ft
RW20DHT (300°)DHT
DECEL (37mi, 329°) 8000ft
CEBBA (7mi, 258°) 7600ft
 RNAVCEBBA 7600ft
FIPLI (6mi, 216°) 6800ft
JULOL (3mi, 216°) 5960ft
KCAO (3mi, 214°) 5019ft
(6038mi, 109°) 5220ft
CACAV (6046mi, 289°) 8000ft
CACAV (turn)
