Airports for X-Plane

Casa Grande

Airport details

CountryUnited States of America
StateArizona
RegionK2
AirspaceAlbuquerque Ctr
MunicipalityCasa Grande
Elevation1443ft (440m)
TimezoneGMT -7
Coordinates32.95505, -111.75981
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKCGZ
IATA codeCGZ
FAA codeCGZ

Communication

Casa Grande AWOS132.175
Casa Grande CTAF122.700
Casa Grande UNICOM122.700

Approach frequencies

ILS-cat-IRW05111.1518.00mi
3° GSRW05111.1518.00mi

Runway info

Runway 5 / 23
 length1585m (5200ft)
 bearing64° / 244°
 width30m (100ft)
 surfaceasphalt

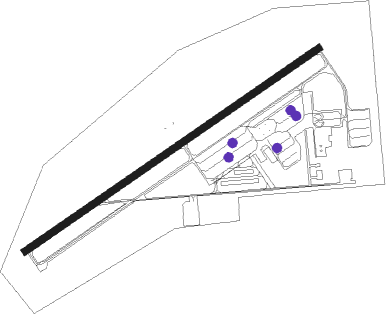

Airport layout - parking location Ramp


Taxiway locations

 A  B  D  E  F  G  H
Parking locations

 Fuel  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
TFDSTANFIELD (CASA GRANDE) VORTAC8.5245°114.80
IWAWILLIE (PHOENIX) VORTAC21.617°113.30
PXRPHOENIX VORTAC30.5336°115.60
AVQMARANA NDB42.6135°245
GBNGILA BEND VORTAC46270°116.60
LUFLUKE (GLENDALE) TACAN46.8313°113
RBJROBLES (TUCSON) NDB56.6156°220
RYNRYAN (TUCSON) NDB57.6144°338
DMADAVIS-MONTHAN (TUCSON) TACAN65.2132°117.60
TUSTUCSON VORTAC67136°116

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05TFD (65°)TFD 10000ft
TFD (turn) 3800ft
 RNAVTFD 3800ft
ROXIE (2mi, 64°) 3200ft
KCGZ (6mi, 65°) 1487ft
(6494mi, 106°) 2000ft
TFD (6502mi, 286°) 5900ft
TFD (turn)
RW23TFD (65°)TFD
WENOR (20mi, 64°) 5000ft
WENOR (turn) 5000ft
RW23TOTEC (318°)TOTEC
WENOR (14mi, 18°) 5000ft
WENOR (turn) 5000ft
 RNAVWENOR 5000ft
JOPAV (5mi, 228°) 3800ft
PROAS (3mi, 256°) 2640ft
UYABU (3mi, 256°) 1671ft
(6493mi, 106°) 2500ft
POTER (6514mi, 286°) 5000ft
POTER (turn)
