Airports for X-Plane

Chattanooga - Lovell Field

Airport details

CountryUnited States of America
StateTennessee
RegionK7
AirspaceAtlanta Ctr
MunicipalityChattanooga
Elevation683ft (208m)
TimezoneGMT -5
Coordinates35.03519, -85.20355
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKCHA
IATA codeCHA
FAA codeCHA

Communication

Lovell Field ATIS119.850
Lovell Field CTAF118.300
Lovell Field UNICOM122.950
Lovell Field Clearance DEL120.950
Lovell Field Ground Control121.700
Lovell Field CHATTANOOGA Tower118.300
Lovell Field CHATTANOOGA Tower122.500
Lovell Field CHATTANOOGA Approach126.500
Lovell Field CHATTANOOGA Approach119.200
Lovell Field CHATTANOOGA Approach125.100
Lovell Field CHATTANOOGA Departure119.200
Lovell Field CHATTANOOGA Departure125.100

Approach frequencies

ILS-cat-IIRW20109.518.00mi
ILS-cat-IRW02108.318.00mi
3° GSRW02108.318.00mi
3° GSRW20109.518.00mi
Nearby Points of Interest:
Jones Observatory
-
Seamour and Gerte Shavin House
-
Southern Railway 4501
-
Highland Park Methodist Episcopal Church
-
Ferger Place Historic District
-
Fort Wood Historic District
-
Trinity Methodist Episcopal Church
-
St. Elmo Historic District
-
Northside Presbyterian Church
-
First Baptist Church
-
First Baptist Church Education Building
-
John Ross House
-
Old Library Building
-
Hamilton County Courthouse
-
Joel W. Solomon Federal Building and United States Courthouse
-
Ross's Landing
-
Chattanooga Car Barns
-
Delta Queen
-
St. Paul's Episcopal Church
-
Lookout Mountain Incline Railway
-
Wauhatchie Pike
-
James County Courthouse
-
Ringgold Gap Battlefield
-
Lee and Gordon Mill
-
Tennessee River Blueway

Runway info

Runway 2 / 20
 length2261m (7418ft)
 bearing20° / 200°
 width46m (151ft)
 surfaceasphalt
 blast zone15m (49ft) / 0m (0ft)
Runway 15 / 33
 length1702m (5584ft)
 bearing140° / 320°
 width46m (151ft)
 surfaceasphalt
 displ threshold32m (105ft) / 175m (574ft)

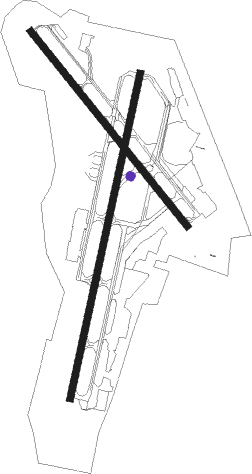

Airport layout - taxiway location E


Taxiway locations

 02  33  A  B  C  D  E  F
 G  H  J
Parking locations

 Gate  New

Nearby beacons

codeidentifierdistbearingfrequency
GQOCHOO CHOO (CHATTANOOGA) VORTAC5146°115.80
CQNDAISY (N.CHATTANOOGA) NDB8.219°341
DTEMARK ANTON (DAYTON) NDB29.931°394
HCHHINCH MTN (CROSSVILLE) VOR/DME46.117°117.60
RMGROME VORTAC52.5174°115.40
DJDCHERO NDB58.8138°415
HEMHUCHN NDB60.2338°233

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW02
 CHA757mi332°
RW20
 CHA757mi332°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02ADMIT (43°)ADMIT
FIDGO (14mi, 66°) 3800ft
RW02DUMBB (352°)DUMBB
FIDGO (16mi, 327°) 3800ft
RW02FIDGO (20°)FIDGO 6000ft
FIDGO (turn) 3800ft
 RNAVFIDGO 3800ft
CECAY (9mi, 20°) 2500ft
KCHA (6mi, 20°) 732ft
(5169mi, 112°) 883ft
HETIP (5166mi, 292°) 3800ft
HETIP (turn)
RW15BOOPS (202°)BOOPS
LIBKE (10mi, 246°) 4200ft
HEXEX (8mi, 241°) 4100ft
RW15GQO (326°)GQO
HEXEX (20mi, 322°) 4600ft
HEXEX (turn) 4100ft
RW15TOBAY (110°)TOBAY
ZOLOT (7mi, 103°) 4400ft
HEXEX (8mi, 60°) 4100ft
 RNAVHEXEX 4100ft
CIKSA (4mi, 140°) 3500ft
SUCOR (2mi, 140°) 3200ft
ICEKE (4mi, 140°) 1960ft
KCHA (5mi, 142°) 716ft
(5169mi, 112°) 1083ft
IYODA (5163mi, 292°) 3300ft
IYODA (turn)
RW20BOOPS (202°)BOOPS
HETIP (9mi, 204°) 3800ft
RW20COMAR (74°)COMAR
HETIP (32mi, 56°) 3800ft
HETIP (turn) 3800ft
RW20CRAND (283°)CRAND
HETIP (22mi, 317°) 3800ft
HETIP (turn) 3800ft
RW20DUBBS (243°)DUBBS
HETIP (18mi, 267°) 3800ft
HETIP (turn) 3800ft
RW20GQO (326°)GQO
HETIP (17mi, 6°) 3800ft
HETIP (turn) 3800ft
RW20PALER (148°)PALER
HETIP (11mi, 95°) 4000ft
HETIP (turn) 3800ft
 RNAVHETIP 3800ft
JOXAT (4mi, 200°) 3200ft
ZUBAN (4mi, 200°) 2500ft
COKIT (3mi, 200°) 1540ft
KCHA (3mi, 201°) 720ft
(5169mi, 112°) 873ft
FIDGO (5173mi, 292°) 3800ft
FIDGO (turn)
RW33CRAND (283°)CRAND
IYODA (12mi, 255°) 3300ft
RW33GQO (326°)GQO
IYODA (5mi, 133°) 3300ft
IYODA (turn) 3300ft
RW33UZOVO (2°)UZOVO
WOXIX (7mi, 29°) 3900ft
IYODA (9mi, 29°) 3300ft
 RNAVIYODA 3300ft
JILIS (4mi, 320°) 2500ft
FOGVI (3mi, 320°) 1600ft
KCHA (3mi, 317°) 712ft
(5169mi, 112°) 1083ft
HEXEX (5178mi, 292°) 4100ft
HEXEX (turn)
