Airports for X-Plane

Charleston - Charleston Afb Intl

Airport details

CountryUnited States of America
StateSouth Carolina
RegionK7
AirspaceJacksonville Ctr
MunicipalityNorth Charleston
Elevation42ft (13m)
TimezoneGMT -5
Coordinates32.89864, -80.04053
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKCHS
IATA codeCHS
FAA codeCHS

Communication

Charleston AFB Intl ATIS124.750
Charleston AFB Intl Clearance DEL127.325
Charleston AFB Intl Ground Control121.900
Charleston AFB Intl Tower126.000
Charleston AFB Intl Approach119.300
Charleston AFB Intl Approach120.700
Charleston AFB Intl Departure119.300
Charleston AFB Intl Departure120.700

Approach frequencies

ILS-cat-IIRW15109.718.00mi
ILS-cat-IRW33108.918.00mi
3° GSRW33108.918.00mi
3° GSRW15109.718.00mi
Nearby Points of Interest:
Drayton Hall
-
General Asbestos and Rubber Company Main Mill
-
St. Andrews Episcopal Church
-
Charleston Navy Yard Officers' Quarters Historic District
-
Ashley River Historic District
-
Charleston Naval Shipyard
-
H. L. Hunley
-
Middleton Place
-
Standard Oil Company Headquarters
-
Lowndes Grove
-
William Enston Home
-
Hampton Park Terrace
-
Greek Orthodox Church of the Holy Trinity
-
Josiah Smith Tennent House
-
James Sparrow House
-
William Robb House
-
Charleston Arsenal
-
Coming Street Cemetery
-
Presqui'ile
-
James Nicholson House
-
Robert Barnwell Rhett House
-
Jonathan Lucas House
-
Gov. Thomas Bennett House
-
West Point Rice Mill
-
South Carolina State Arsenal

Runway info

Runway 15 / 33
 length2747m (9012ft)
 bearing143° / 323°
 width46m (151ft)
 surfaceconcrete
 blast zone255m (837ft) / 255m (837ft)
Runway 03 / 21
 length2136m (7008ft)
 bearing28° / 208°
 width46m (151ft)
 surfaceconcrete
 blast zone255m (837ft) / 244m (801ft)

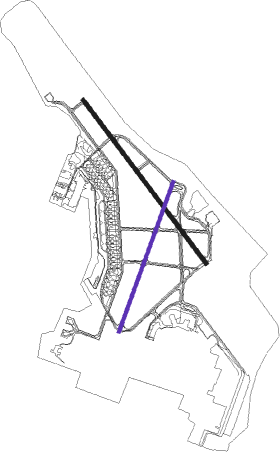

Airport layout - runway 03 / 21


Taxiway locations

   A  A1  C  D  E  F  G
 G1  G2  H  J  K  M
Parking locations

 A1  A2  A3  A4  A4A  A4B  A4C  A5
 Atlantic  B1  B10  B1A  B1C  B2  B2A  B3
 B4  B5  B6  B7  B8  B9  B9A  B9B
 B9X  Boeing  C1  C2  C3  C4  C5  Helicopter
 Hot  Parking  Signature

Nearby beacons

codeidentifierdistbearingfrequency
CHSCHARLESTON VORTAC0.2148°113.50
CHASHLY (CHARLESTON) NDB5.4324°329
DYBDORCHESTER COUNTY(SUMMERVILLE) NDB15.4305°365
VANVANCE VORTAC40.2325°110.40
PHHANDREWS NDB4243°255
MNIMANNING NDB42.2346°381
NBCBEAUFORT TACAN42.4238°110.50
CFYEVANS (LAKE CITY) NDB59.116°420
HYWHORRY (CONWAY) NDB71.945°370
SVWASSA (SAVANNAH) NDB71.9227°335

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW03
 SWPFX259mi16°
 PLMTO386mi55°
 LGRHD3108mi217°
 STUNO1117mi291°
RW15
 SWPFX259mi16°
 PLMTO386mi55°
 LGRHD3108mi217°
 STUNO1117mi291°
RW21
 SWPFX259mi16°
 PLMTO386mi55°
 LGRHD3108mi217°
 STUNO1117mi291°
RW33
 SWPFX259mi16°
 PLMTO386mi55°
 LGRHD3108mi217°
 STUNO1117mi291°

STAR starting pointsdistanceinbound heading
RW03
 BAGGY219.955°
 OSPRI722.6124°
 AMYLU326.2230°
RW15
 BAGGY219.955°
 OSPRI722.6124°
 AMYLU326.2230°
RW21
 BAGGY219.955°
 OSPRI722.6124°
 AMYLU326.2230°
RW33
 BAGGY219.955°
 OSPRI722.6124°
 AMYLU326.2230°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03-YCHS (328°)CHS
HERTZ (13mi, 209°) 3000ft
HERTZ (turn) 3000ft
RW03-YGMSTR (287°)GMSTR
LIMDE (26mi, 261°) 3300ft
HERTZ (7mi, 292°) 3000ft
RW03-YHAXOL (58°)HAXOL
HERTZ (7mi, 110°) 3000ft
RW03-YLIMDE (353°)LIMDE
HERTZ (7mi, 292°) 3000ft
RW03-YLOFTI (55°)LOFTI
HERTZ (10mi, 85°) 3000ft
RW03-YRIKKI (230°)RIKKI
SHRMP (32mi, 204°) 3300ft
LIMDE (7mi, 243°) 3300ft
HERTZ (7mi, 292°) 3000ft
RW03-YSEAMS (124°)SEAMS
ERGOW (6mi, 165°) 5000ft
HAXOL (18mi, 162°) 4000ft
HERTZ (7mi, 110°) 3000ft
RW03-YSHRMP (322°)SHRMP
LIMDE (7mi, 243°) 3300ft
HERTZ (7mi, 292°) 3000ft
 RNAVHERTZ 3000ft
CAVUB (7mi, 28°) 1700ft
KCHS (6mi, 27°) 71ft
(4904mi, 112°) 235ft
ALGOE (4900mi, 292°) 3000ft
ALGOE (turn) 3000ft
RW03-ZFEPID (28°)FEPID 3000ft
HODIL (4mi, 28°) 2100ft
ZUNSU (4mi, 28°) 1300ft
RW03-ZRECHY (81°)RECHY 4000ft
RORDY (6mi, 120°) 2400ft
ZUNSU (4mi, 77°) 1300ft
RW03-ZSTNNS (316°)STNNS 4000ft
JEKDA (3mi, 216°) 3200ft
UZADY (3mi, 251°) 2500ft
ZUNSU (4mi, 330°) 1300ft
 RNAVZUNSU 1300ft
KCHS (5mi, 27°) 71ft
(4904mi, 112°) 285ft
BAMDE (4900mi, 292°) 3000ft
BAMDE (turn) 3000ft
RW15-YCANID (239°)CANID
DESNE (13mi, 296°) 3200ft
MAMAE (8mi, 241°) 3000ft
RW15-YCEBTI (115°)CEBTI
MAMAE (7mi, 63°) 3000ft
RW15-YCHS (328°)CHS
MAMAE (13mi, 324°) 3000ft
MAMAE (turn) 3000ft
RW15-YDESNE (181°)DESNE
MAMAE (8mi, 241°) 3000ft
RW15-YGMSTR (287°)GMSTR
CANID (24mi, 315°) 6000ft
DESNE (13mi, 296°) 3200ft
MAMAE (8mi, 241°) 3000ft
RW15-YLOFTI (55°)LOFTI
CEBTI (20mi, 10°) 3000ft
MAMAE (7mi, 63°) 3000ft
RW15-YPOETS (143°)POETS
MAMAE (4mi, 143°) 3000ft
RW15-YRIKKI (230°)RIKKI
DESNE (19mi, 260°) 3200ft
MAMAE (8mi, 241°) 3000ft
RW15-YSEAMS (124°)SEAMS
POETS (9mi, 91°) 4000ft
MAMAE (4mi, 143°) 3000ft
 RNAVMAMAE 3000ft
ANURE (7mi, 143°) 1600ft
TUMSE (2mi, 143°) 820ft
KCHS (3mi, 145°) 93ft
(4904mi, 112°) 243ft
SHRMP (4895mi, 292°) 3000ft
SHRMP (turn)
RW15-ZKREIS (185°)KREIS 3000ft
JCEEE (4mi, 223°) 1900ft
TIPOE (3mi, 183°) 1100ft
RW15-ZLUTHR (143°)LUTHR 4000ft
MAMAE (4mi, 143°) 3000ft
JJAAY (5mi, 143°) 1800ft
ASHLY (2mi, 143°) 1500ft
TIPOE (1mi, 143°) 1100ft
RW15-ZPIPPY (91°)PIPPY 5000ft
WEKNG (4mi, 27°) 3500ft
ASHLY (5mi, 86°) 1500ft
TIPOE (1mi, 143°) 1100ft
 RNAVTIPOE 1100ft
KCHS (4mi, 145°) 93ft
SHRMP (13mi, 142°) 3000ft
SHRMP (turn)
RW21-YANNDI (209°)ANNDI
ALGOE (5mi, 209°) 3000ft
RW21-YCANID (239°)CANID
ALGOE (7mi, 290°) 3000ft
RW21-YCEBTI (115°)CEBTI
POETS (8mi, 30°) 4000ft
DAGBE (8mi, 91°) 3300ft
ALGOE (7mi, 112°) 3000ft
RW21-YCHS (328°)CHS
ALGOE (12mi, 28°) 3000ft
ALGOE (turn) 3000ft
RW21-YDAGBE (174°)DAGBE
ALGOE (7mi, 112°) 3000ft
RW21-YGMSTR (287°)GMSTR
CANID (24mi, 315°) 4000ft
ALGOE (7mi, 290°) 3000ft
RW21-YLOFTI (55°)LOFTI
CEBTI (20mi, 10°) 4000ft
POETS (8mi, 30°) 4000ft
DAGBE (8mi, 91°) 3300ft
ALGOE (7mi, 112°) 3000ft
RW21-YPOETS (143°)POETS
DAGBE (8mi, 91°) 3300ft
ALGOE (7mi, 112°) 3000ft
RW21-YRIKKI (230°)RIKKI
ANNDI (12mi, 257°) 4000ft
ALGOE (5mi, 209°) 3000ft
RW21-YSEAMS (124°)SEAMS
POETS (9mi, 91°) 4000ft
DAGBE (8mi, 91°) 3300ft
ALGOE (7mi, 112°) 3000ft
 RNAVALGOE 3000ft
AKETE (7mi, 208°) 1700ft
KCHS (5mi, 210°) 90ft
(4904mi, 112°) 293ft
HERTZ (4908mi, 292°) 3000ft
HERTZ (turn) 3000ft
RW21-ZADERY (121°)ADERY 4000ft
ZOVIR (3mi, 40°) 3200ft
FEGIM (3mi, 84°) 2000ft
PAKIC (3mi, 165°) 1100ft
RW21-ZBAMDE (209°)BAMDE 3000ft
ZELPO (6mi, 208°) 1900ft
PAKIC (3mi, 208°) 1100ft
RW21-ZMYERS (168°)MYERS 3000ft
FEGIM (3mi, 126°) 2000ft
PAKIC (3mi, 165°) 1100ft
 RNAVPAKIC 1100ft
KCHS (3mi, 210°) 90ft
FEPID (13mi, 208°) 3000ft
FEPID (turn)
RW33-YBUNCH (251°)BUNCH
MAVNE (14mi, 192°) 3800ft
SHRMP (7mi, 243°) 3000ft
RW33-YCHS (328°)CHS
SHRMP (13mi, 142°) 3000ft
SHRMP (turn) 3000ft
RW33-YDAASY (357°)DAASY
SHRMP (8mi, 61°) 3000ft
RW33-YGMSTR (287°)GMSTR
SHRMP (19mi, 267°) 3000ft
RW33-YLOFTI (55°)LOFTI
DAASY (16mi, 99°) 4000ft
SHRMP (8mi, 61°) 3000ft
RW33-YMAVNE (295°)MAVNE
SHRMP (7mi, 243°) 3000ft
RW33-YRIKKI (230°)RIKKI
BUNCH (12mi, 194°) 5000ft
MAVNE (14mi, 192°) 3800ft
SHRMP (7mi, 243°) 3000ft
RW33-YSEAMS (124°)SEAMS
TABIE (7mi, 150°) 5000ft
SMILY (23mi, 150°) 4000ft
DAASY (6mi, 118°) 4000ft
SHRMP (8mi, 61°) 3000ft
 RNAVSHRMP 3000ft
GAATR (7mi, 323°) 2000ft
SOGTY (3mi, 323°) 1040ft
KCHS (4mi, 320°) 89ft
(4904mi, 112°) 245ft
MAMAE (4911mi, 292°) 3000ft
MAMAE (turn) 3000ft
RW33-ZCZSAR (7°)CZSAR 3000ft
CITAA (3mi, 58°) 2000ft
DELLL (3mi, 12°) 1000ft
RW33-ZJAARD (53°)JAARD 4000ft
HOLII (3mi, 134°) 3100ft
CITAA (3mi, 95°) 2000ft
DELLL (3mi, 12°) 1000ft
RW33-ZSNOBB (271°)SNOBB 3000ft
MKENA (3mi, 215°) 2200ft
LIVYY (3mi, 257°) 1300ft
DELLL (1mi, 308°) 1000ft
 RNAVDELLL 1000ft
KCHS (3mi, 320°) 89ft
(4904mi, 112°) 419ft
MAMAE (4911mi, 292°) 3000ft
MAMAE (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AMYLU3AMYLUVHFleft39 (219)°< 17999ftDME 10.0miICAO rules
AMYLU3CRAAWVHFleft40 (220)°< 17999ftDME 10.0miICAO rules
BAGGY2BAGGYVHFleft239 (59)°< 17999ftDME 10.0miICAO rules
OSPRI7BUBOOVHFright298 (118)°DME 10.0miICAO rules
OSPRI7NINJAVHFleft337 (157)°DME 10.0miICAO rules
OSPRI7TRTLSVHFleft321 (141)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
