Airports for X-Plane

Cleveland - Cleveland Hopkins Intl

Airport details

CountryUnited States of America
StateOhio
RegionK5
AirspaceCleveland Ctr
MunicipalityCleveland
Elevation791ft (241m)
TimezoneGMT -5
Coordinates41.40942, -81.85470
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKCLE
IATA codeCLE
FAA codeCLE

Communication

Cleveland Hopkins Intl ATIS132.375
Cleveland Hopkins Intl UNICOM122.950
Cleveland Hopkins Intl Clearance DEL125.050
Cleveland Hopkins Intl Ground Control121.700
Cleveland Hopkins Intl Tower124.500
Cleveland Hopkins Intl Approach124.000
Cleveland Hopkins Intl Approach126.550
Cleveland Hopkins Intl Approach119.625
Cleveland Hopkins Intl Departure135.875
Cleveland Hopkins Intl Departure128.250

Approach frequencies

ILS-cat-IIIRW06L111.5518.00mi
ILS-cat-IIIRW24R111.5518.00mi
ILS-cat-IIRW24L109.918.00mi
ILS-cat-IIRW06R111.918.00mi
ILS-cat-IRW28110.718.00mi
3.1° GSRW06R111.918.00mi
3° GSRW28110.718.00mi
3° GSRW24R111.5518.00mi
3° GSRW06L111.5518.00mi
3° GSRW24L109.918.00mi
Nearby Points of Interest:
Zero Gravity Research Facility
-
Rocket Engine Test Facility
-
Baldwin-Wallace College North Campus Historic District
-
Baldwin–Wallace College South Campus Historic District
-
Buehl House
-
John and Maria Adams House
-
First Universalist Church of Olmsted
-
Bay View Hospital
-
Rocky River Bridge
-
Aaron Aldrich House
-
John M. Annis House
-
Archwood Avenue Historic District
-
Brooklyn Bank Building
-
Bomante House
-
Third Church of Christ, Scientist
-
Riverside Cemetery Chapel
-
Riverside Cemetery Gatehouse
-
Irishtown Bend Archeological District
-
Wilbur Cahoon House
-
Avon Isle
-
Detroit–Superior Bridge
-
Bingham Company Warehouse
-
Perry-Payne Building
-
Bradley Building
-
Public Square

Runway info

Runway 6L / 24R
 length2740m (8990ft)
 bearing58° / 238°
 width46m (151ft)
 surfaceconcrete
 blast zone122m (400ft) / 65m (213ft)
Runway 6R / 24L
 length3032m (9948ft)
 bearing58° / 238°
 width46m (151ft)
 surfaceconcrete
 displ threshold588m (1929ft) / 0m (0ft)
 blast zone120m (394ft) / 65m (213ft)
Runway 10 / 28
 length1830m (6004ft)
 bearing92° / 272°
 width46m (151ft)
 surfaceasphalt
 blast zone135m (443ft) / 137m (449ft)

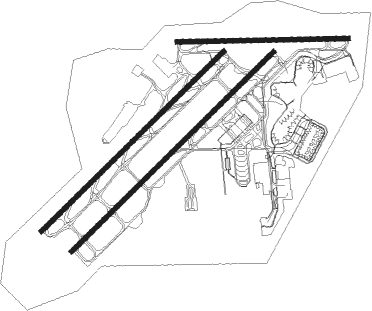

Airport layout


Taxiway locations

 A  E  E1  E2  G  G1  G2  G3
 G4  G5  G6  G7  H  J  K  L
 L1  L2  M1  M2  N  P  S  T
 U  V  V1  V2  W
Parking locations

 A1  A10  A11  A12  A14  A2  A3  A5
 A7  A8  A9  B10  B11  B2  B3  B4
 B5  B6  B7  B8  B9  C10  C11  C14
 C17  C18  C19  C2  C20  C21  C22  C23
 C24  C25  C26  C27  C29  C3  C4  C5
 C6  C7  C8  C9  CARGO  FedEx  GA  SE
 UPS

Nearby beacons

codeidentifierdistbearingfrequency
DJBDRYER VOR/DME14.1261°113.60
BFTABEY (CLEVELAND) NDB15.860°248
LQLLAKELAND (WILLOUGHBY) NDB26.960°263
AKAKRON NDB29.3126°362
CXRCHARDON VOR/DME31.781°112.70
ACOAKRON VOR/DME34.6115°114.40
BSVBRIGGS VOR/DME44.4148°112.40
MFDMANSFIELD VORTAC46.5234°108.80
MFMANNS (MANSFIELD) NDB46.9223°372

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW06L
 PFLYD142mi38°
 KKIDS195mi143°
 CAVVS483mi210°
 ZAAPA5212mi250°
 GTLKE4174mi270°
RW06R
 PFLYD142mi38°
 KKIDS195mi143°
 CAVVS483mi210°
 ZAAPA5212mi250°
 GTLKE4174mi270°
RW10
 CAVVS483mi210°
 ZAAPA5212mi250°
 GTLKE4174mi270°
RW24L
 PFLYD142mi38°
 KKIDS195mi143°
 CAVVS483mi210°
 ZAAPA5212mi250°
 GTLKE4174mi270°
RW24R
 PFLYD142mi38°
 KKIDS195mi143°
 CAVVS483mi210°
 ZAAPA5212mi250°
 GTLKE4174mi270°
RW28
 CAVVS483mi210°
 ZAAPA5212mi250°
 GTLKE4174mi270°

STAR starting pointsdistanceinbound heading
RW06 (ALL)
 BRWNZ431.1141°
 TRYBE426.4260°
 ROLLN222.1342°
RW06L
 ROKNN331.054°
RW06R
 ROKNN331.054°
RW24 (ALL)
 BRWNZ431.1141°
 TRYBE426.4260°
 ROLLN222.1342°
RW24L
 ROKNN331.054°
RW24R
 ROKNN331.054°
RW28
 ROKNN331.054°
 BRWNZ431.1141°
 TRYBE426.4260°
 ROLLN222.1342°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06LYGROHL (29°)GROHL 6000ft
FUZED (7mi, 343°) 3800ft
BETLL (3mi, 36°) 2900ft
RW06LYHICKR (82°)HICKR 5000ft
CRTEZ (5mi, 125°) 4000ft
BETLL (3mi, 80°) 2900ft
RW06LYKWENE (58°)KWENE 6000ft
DAYZD (6mi, 57°) 4000ft
BETLL (3mi, 58°) 2900ft
 RNAVBETLL 2900ft
DEVYL (2mi, 58°) 2300ft
BOEEE (turn) 2000ft
KCLE (5mi, 59°) 825ft
(5039mi, 117°) 973ft
ACAPO (5037mi, 297°)
PASLE (8mi, 351°) 3000ft
PASLE (turn)
RW06LZGROHL (29°)GROHL 6000ft
IFITZ (6mi, 344°) 4000ft
BETLL (3mi, 25°) 2900ft
DEVYL (2mi, 58°) 2300ft
RW06LZHICKR (82°)HICKR 5000ft
STEMR (3mi, 126°) 4000ft
BETLL (4mi, 91°) 2900ft
DEVYL (2mi, 58°) 2300ft
RW06LZJAAIN (309°)JAAIN 7000ft
TIANT (3mi, 238°) 6000ft
WIPPN (3mi, 238°) 5000ft
DEVYL (5mi, 312°) 2300ft
RW06LZJHUDY (135°)JHUDY 7000ft
FRIND (3mi, 238°) 6000ft
UVTHE (3mi, 238°) 5000ft
DEVYL (5mi, 132°) 2300ft
RW06LZKWENE (58°)KWENE 6000ft
DAYZD (6mi, 57°) 4000ft
BETLL (3mi, 58°) 2900ft
DEVYL (2mi, 58°) 2300ft
 RNAVDEVYL 2300ft
BOEEE (turn) 2000ft
KCLE (5mi, 59°) 825ft
(5039mi, 117°) 1123ft
ACAPO (5037mi, 297°)
PASLE (8mi, 351°) 3000ft
PASLE (turn)
RW06RYGROHL (29°)GROHL 6000ft
SHEEP (7mi, 348°) 3900ft
DOORZ (3mi, 37°) 2900ft
RW06RYHICKR (82°)HICKR 5000ft
DAUGS (5mi, 124°) 4000ft
DOORZ (3mi, 76°) 2900ft
RW06RYRUHSH (57°)RUHSH 6000ft
RMONZ (6mi, 57°) 4000ft
DOORZ (3mi, 58°) 2900ft
 RNAVDOORZ 2900ft
POAST (1mi, 58°) 2500ft
DILYN (2mi, 58°) 2000ft
KCLE (4mi, 56°) 825ft
(5039mi, 117°) 977ft
MOMBE (5036mi, 297°)
NEIIL (7mi, 91°) 3000ft
NEIIL (turn)
RW06RZGROHL (29°)GROHL 6000ft
BEEEE (6mi, 350°) 4000ft
DOORZ (3mi, 27°) 2900ft
POAST (1mi, 58°) 2500ft
RW06RZHICKR (82°)HICKR 5000ft
SCANZ (4mi, 122°) 4000ft
DOORZ (4mi, 90°) 2900ft
POAST (1mi, 58°) 2500ft
RW06RZJAAIN (309°)JAAIN 7000ft
TIANT (3mi, 238°) 6000ft
WIPPN (3mi, 238°) 5000ft
POAST (5mi, 312°) 2500ft
RW06RZJHUDY (135°)JHUDY 7000ft
FRIND (3mi, 238°) 6000ft
UVTHE (3mi, 238°) 5000ft
POAST (6mi, 132°) 2500ft
RW06RZRUHSH (57°)RUHSH 6000ft
RMONZ (6mi, 57°) 4000ft
DOORZ (3mi, 58°) 2900ft
POAST (1mi, 58°) 2500ft
 RNAVPOAST 2500ft
DILYN (2mi, 58°) 2000ft
KCLE (4mi, 56°) 825ft
(5039mi, 117°) 1127ft
MOMBE (5036mi, 297°)
NEIIL (7mi, 91°) 3000ft
NEIIL (turn)
RW10DJB (81°)DJB
FIMOL (5mi, 40°) 3000ft
RW10FIMOL (94°)FIMOL 3000ft
RW10GILLS (181°)GILLS
TAMDE (26mi, 220°) 3000ft
FIMOL (6mi, 146°) 3000ft
 RNAVFIMOL 3000ft
JUUBA (6mi, 92°) 2400ft
KCLE (5mi, 96°) 812ft
(5039mi, 117°) 1199ft
EKUME (5025mi, 297°) 4000ft
EKUME (turn)
RW24LYBUDRW (258°)BUDRW 6000ft
WIINR (7mi, 271°) 5000ft
ANJEY (4mi, 271°) 4000ft
ALOMR (3mi, 255°) 3000ft
RW24LYLLROY (211°)LLROY 5000ft
KARAY (6mi, 161°) 4000ft
ALOMR (3mi, 217°) 3000ft
RW24LYTHRTN (238°)THRTN 5000ft
HHERB (3mi, 238°) 4000ft
ALOMR (3mi, 238°) 3000ft
 RNAVALOMR 3000ft
FELLR (3mi, 238°) 2000ft
KCLE (4mi, 239°) 838ft
(5039mi, 117°) 986ft
HASLE (5042mi, 297°)
SAROW (15mi, 166°) 3000ft
SAROW (turn)
RW24LZBUDRW (258°)BUDRW 6000ft
WIINR (7mi, 271°) 5000ft
EYEDD (4mi, 271°) 4000ft
ALOMR (3mi, 255°) 3000ft
RW24LZCLAPT (286°)CLAPT 7000ft
LAILA (4mi, 57°) 5500ft
ALOMR (5mi, 311°) 3000ft
RW24LZDAHOO (164°)DAHOO 7000ft
BABBA (5mi, 57°) 5500ft
ALOMR (5mi, 131°) 3000ft
RW24LZLLROY (211°)LLROY 5000ft
HKRSN (5mi, 164°) 4000ft
ALOMR (4mi, 204°) 3000ft
RW24LZTHRTN (238°)THRTN 5000ft
HHERB (3mi, 238°) 4000ft
ALOMR (3mi, 238°) 3000ft
 RNAVALOMR 3000ft
FELLR (3mi, 238°) 2000ft
KCLE (4mi, 239°) 838ft
(5039mi, 117°) 1140ft
HASLE (5042mi, 297°)
SAROW (15mi, 166°) 3000ft
SAROW (turn)
RW24RYBUDRW (258°)BUDRW 6000ft
WIINR (7mi, 271°) 5000ft
ANJEY (4mi, 271°) 4000ft
SHERK (3mi, 256°) 3000ft
RW24RYLLROY (211°)LLROY 5000ft
BORNY (6mi, 164°) 4000ft
SHERK (3mi, 218°) 3000ft
RW24RYPAULB (237°)PAULB 5000ft
GRHMM (3mi, 238°) 4000ft
SHERK (3mi, 238°) 3000ft
 RNAVSHERK 3000ft
GROZA (3mi, 238°) 2000ft
KCLE (4mi, 236°) 835ft
(5039mi, 117°) 980ft
ZAPAN (5041mi, 297°)
DJB (11mi, 267°) 3000ft
DJB (turn)
RW24RZBUDRW (258°)BUDRW 6000ft
WIINR (7mi, 271°) 5000ft
HAMEE (4mi, 272°) 4000ft
SHERK (3mi, 256°) 3000ft
RW24RZCLAPT (286°)CLAPT 7000ft
ZLASH (4mi, 56°) 5000ft
SHERK (5mi, 311°) 3000ft
RW24RZDAHOO (164°)DAHOO 7000ft
HAULN (4mi, 56°) 5000ft
SHERK (5mi, 131°) 3000ft
RW24RZLLROY (211°)LLROY 5000ft
KEEEP (5mi, 169°) 4000ft
SHERK (3mi, 207°) 3000ft
RW24RZPAULB (237°)PAULB 5000ft
GRHMM (3mi, 238°) 4000ft
SHERK (3mi, 238°) 3000ft
 RNAVSHERK 3000ft
GROZA (3mi, 238°) 2000ft
KCLE (4mi, 236°) 835ft
(5039mi, 117°) 1064ft
ZAPAN (5041mi, 297°)
DJB (11mi, 267°) 3000ft
DJB (turn)
RW28HARDR (264°)HARDR 6000ft
WHONT (6mi, 252°) 4000ft
GETTT (1mi, 273°) 3600ft
RW28YYESS (271°)YYESS 6000ft
JHENY (3mi, 273°) 5000ft
WHONT (3mi, 273°) 4000ft
GETTT (1mi, 273°) 3600ft
 RNAVGETTT 3600ft
FOOLD (3mi, 273°) 2600ft
XUFPU (3mi, 273°) 1640ft
KCLE (4mi, 267°) 845ft
(5039mi, 117°) 1400ft
DJB (5052mi, 297°) 3000ft
DJB (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BRWNZ4BRWNZVHFleft293 (113)°DME 10.0miICAO rules
BRWNZ4DETMRVHFleft282 (102)°DME 10.0miICAO rules
BRWNZ4FRYYEVHFleft284 (104)°DME 10.0miICAO rules
ROKNN3ROKNNVHFright232 (52)°DME 10.0miICAO rules
ROLLN2ROLLNVHFright198 (18)°DME 10.0miICAO rules
TRYBE4DECRRVHFleft120 (300)°DME 10.0miICAO rules
TRYBE4HFNERVHFright78 (258)°DME 10.0miICAO rules
TRYBE4TRYBEVHFleft95 (275)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
