Airports for X-Plane

Coleman - Coleman Muni

Airport details

CountryUnited States of America
StateTexas
RegionK4
AirspaceFt Worth Ctr
MunicipalityColeman
Elevation1694ft (516m)
TimezoneGMT -6
Coordinates31.84114, -99.40361
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKCOM
IATA codeCOM
FAA codeCOM

Communication

Coleman Muni CTAF/UNICOM122.800
Nearby Points of Interest:
Ballinger Carnegie Library
-
Concho County Courthouse

Runway info

Runway 15 / 33
 length1375m (4511ft)
 bearing152° / 332°
 width23m (75ft)
 surfaceasphalt

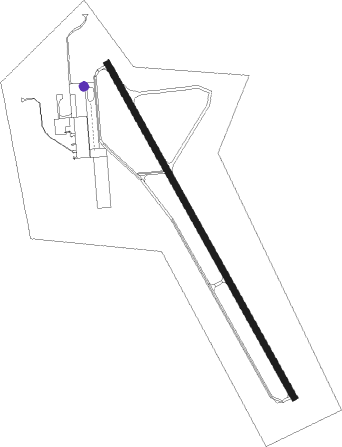

Airport layout - parking location North


Parking locations

 Hold  North  Terminal

Nearby beacons

codeidentifierdistbearingfrequency
BWDBROWNWOOD VOR/DME22.983°108.60
ABTOMHI (ABILENE) NDB30.7329°353
TQATUSCOLA (ABILENE) VOR/DME31.6314°111.60
DYSDYESS (ABILENE) TACAN41.6322°133.60
ABIABILENE VORTAC44.9324°113.70

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW15PUYOK (187°)PUYOK
WIBUG (8mi, 248°) 4000ft
RW15WIBUG (151°)WIBUG 4000ft
 RNAVWIBUG 4000ft
IREZO (8mi, 151°) 3500ft
KCOM (6mi, 151°) 1737ft
(5884mi, 108°) 3000ft
WIBUG (5889mi, 288°) 4000ft
WIBUG (turn)
RW33CUKKU (332°)CUKKU 4000ft
RW33EKGUZ (300°)EKGUZ 4000ft
CUKKU (8mi, 248°) 4000ft
 RNAVCUKKU 4000ft
OVHIL (7mi, 332°) 3500ft
HOPIV (4mi, 332°) 2320ft
KCOM (2mi, 332°) 1719ft
(5884mi, 108°) 1939ft
WIBUG (5889mi, 288°) 4000ft
WIBUG (turn)

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
