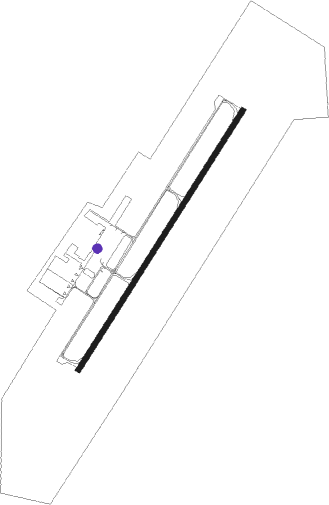

Norfolk - Chesapeake Rgnl
Airport details
| Country | United States of America |
| State | Virginia |
| Region | K6 |
| Airspace | Washington Ctr |
| Municipality | Chesapeake |
| Elevation | 20ft (6m) |
| Timezone | GMT -5 |
| Coordinates | 36.66416, -76.32436 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | KCPK |
| IATA code | n/a |
| FAA code | CPK |
Communication
| Chesapeake Rgnl AWOS 3 | 123.675 |
| Chesapeake Rgnl CTAF/UNICOM | 123.075 |
| Chesapeake Rgnl NORFOLK Approach/Departure | 118.900 |
Approach frequencies
| ILS-cat-I | RW05 | 111.7 | 18.00mi |
| 3° GS | RW05 | 111.7 | 18.00mi |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| NFE | CHESAPEAKE TACAN | 9.2 | 80° | 108.25 |
| OR | INGLE (NORFOLK) NDB | 11.1 | 22° | 329 |
| ORF | NORFOLK VORTAC | 14.9 | 29° | 116.90 |
| NGU | CHAMBERS (NORFOLK) TACAN | 16.7 | 10° | 113.95 |
| NTU | OCEANA TACAN | 16.8 | 61° | 116.60 |
| LLW | WOODVILLE (ELIZABETH CITY) NDB | 24.1 | 176° | 254 |
| LFI | LANGLEY (HAMPTON) TACAN | 25.3 | 355° | 112.30 |
| ECG | ELIZABETH CITY VOR/DME | 25.4 | 160° | 112.50 |
| CVI | COFIELD VORTAC | 31.6 | 242° | 114.60 |
| FKN | FRANKLIN VORTAC | 33.2 | 274° | 110.60 |
| AKQ | WAKEFIELD NDB | 37.7 | 295° | 274 |
| CCV | CAPE CHARLES VORTAC | 43.9 | 26° | 112.20 |
| HCM | HARCUM VORTAC | 50.6 | 334° | 108.80 |
| RBX | WRIGHT BROTHERS (MANTEO) VOR/DME | 54 | 140° | 111.60 |
| MQI | MANTEO NDB | 54.3 | 140° | 370 |
| HPW | HOPEWELL VORTAC | 55 | 310° | 112 |
| RIC | RICHMOND VORTAC | 69.3 | 310° | 114.10 |
Departure and arrival routes
| Transition altitude | 18000ft |
| Transition level | 18000ft |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| ALL | |||
| DRONE2 | 18.5 | 69° | |
| TERKS2 | 152.2 | 114° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW05 | DRONE (69°) | DRONE NALDE (10mi, 95°) 2000ft |
| RW05 | ECG (340°) | ECG SARVY (15mi, 304°) 2000ft NALDE (6mi, 332°) 2000ft |
| RW05 | NALDE (42°) | NALDE 2000ft |
| RW05 | SUNNS (39°) | SUNNS NALDE (5mi, 31°) 2000ft |
| RNAV | NALDE 2000ft TAVAE (6mi, 43°) 1700ft CEKAD (4mi, 43°) 520ft KCPK (2mi, 40°) 60ft (4749mi, 116°) 500ft NALDE (4754mi, 296°) 2300ft NALDE (turn) | |
| RW23 | ORF (209°) | ORF 3000ft ZIMON (6mi, 182°) 2600ft |
| RNAV | ZIMON 2600ft FUBSY (4mi, 223°) 1600ft KCPK (5mi, 224°) 74ft (4749mi, 116°) 310ft NALDE (4754mi, 296°) 2000ft NALDE (turn) |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| DRONE2 | DRONE | VHF | right | 233 (53)° | 1.0min timed | ICAO rules | |
| *) magnetic outbound (inbound) holding course | |||||||
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
