Airports for X-Plane

Charleston - Charleston Yeager

Airport details

CountryUnited States of America
StateWest Virginia
RegionK6
AirspaceIndianapolis Ctr
MunicipalityKanawha County
Elevation979ft (298m)
TimezoneGMT -5
Coordinates38.37593, -81.59300
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKCRW
IATA codeCRW
FAA codeCRW

Communication

Charleston Yeager ATIS127.600
Charleston Yeager UNICOM122.950
Charleston Yeager Clearance DEL118.550
Charleston Yeager Ground Control121.800
Charleston Yeager CHARLESTON Tower125.700
Charleston Yeager CHARLESTON Approach North124.100
Charleston Yeager CHARLESTON Approach/Departure128.500
Charleston Yeager CHARLESTON Approach South119.200
Charleston Yeager CHARLESTON Departure North124.100
Charleston Yeager CHARLESTON Departure South119.200

Approach frequencies

ILS-cat-IRW23110.318.00mi
ILS-cat-IRW05110.318.00mi
3° GSRW23110.318.00mi
3° GSRW05110.318.00mi

Runway info

Runway 5 / 23
 length2073m (6801ft)
 bearing54° / 234°
 width46m (150ft)
 surfaceconcrete
 displ threshold175m (574ft) / 158m (518ft)
 blast zone14m (46ft) / 0m (0ft)

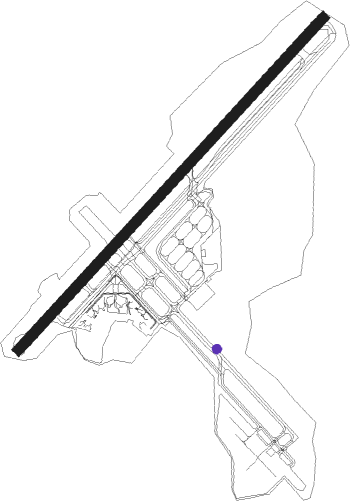

Airport layout - taxiway location C


Taxiway locations

 A  B  C  D
Parking locations

 Air  GA  GATE

Nearby beacons

codeidentifierdistbearingfrequency
HVQCHARLESTON VOR/DME8.4262°117.40
HNNDME30.4311°115.90
BKWBECKLEY VOR/DME42142°117.70
RNLRAINELLE VOR44.2117°116.60
PKVERSI (PARKERSBURG) NDB52.97°388
UGSUNIVERSITY (ATHENS) NDB58.5329°250

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05-YDIPUH (37°)DIPUH
CITMA (10mi, 12°) 4000ft
RW05-YHVQ (82°)HVQ
CITMA (7mi, 191°) 4000ft
CITMA (turn) 4000ft
 RNAVCITMA 4000ft
JETVO (6mi, 54°) 3000ft
WEPLU (3mi, 54°) 1920ft
KCRW (3mi, 54°) 1003ft
(5010mi, 115°) 1147ft
ENIVY (5002mi, 295°) 3000ft
ENIVY (turn)
RW23-YHVQ (82°)HVQ
ENIVY (19mi, 66°) 3500ft
ENIVY (turn) 3000ft
RW23-YITALY (246°)ITALY
ENIVY (9mi, 261°) 3000ft
RW23-YWARDO (228°)WARDO
ENIVY (12mi, 223°) 3000ft
 RNAVENIVY 3000ft
COSIK (6mi, 234°) 2400ft
ZUPUT (2mi, 234°) 1680ft
KCRW (3mi, 234°) 953ft
(5010mi, 115°) 1400ft
HVQ (5018mi, 295°) 3000ft
HVQ (turn)
RW23-ZHVQ (82°)HVQ
HOVET (9mi, 50°) 5200ft
ZUMGA (3mi, 54°) 4400ft
COSIK (5mi, 130°) 2400ft
RW23-ZITALY (246°)ITALY
ENIVY (9mi, 261°) 4000ft
COSIK (6mi, 234°) 2400ft
RW23-ZKETTA (201°)KETTA
ENIVY (12mi, 164°) 4000ft
COSIK (6mi, 234°) 2400ft
RW23-ZRULEY (96°)RULEY
FIGRA (19mi, 89°) 6000ft
HOVET (3mi, 72°) 5200ft
ZUMGA (3mi, 54°) 4400ft
COSIK (5mi, 130°) 2400ft
RW23-ZSCRIB (338°)SCRIB
ZAROG (11mi, 351°) 6000ft
ZERUT (3mi, 25°) 6000ft
HEPUN (3mi, 54°) 4400ft
WOLUL (4mi, 3°) 3400ft
COSIK (4mi, 272°) 2400ft
 RNAVCOSIK 2400ft
KCRW (5mi, 234°) 953ft
CITMA (13mi, 234°) 4000ft
CITMA (turn)
