Airports for X-Plane

Cincinnati - Northern Kentucky Intl

Airport details

CountryUnited States of America
StateKentucky
RegionK5
AirspaceIndianapolis Ctr
MunicipalityBoone County
Elevation895ft (273m)
TimezoneGMT -5
Coordinates39.04884, -84.66782
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKCVG
IATA codeCVG
FAA codeCVG

Communication

Northern Kentucky Intl ATIS-D135.300
Northern Kentucky Intl ATIS-A134.375
Northern Kentucky Intl UNICOM122.950
Northern Kentucky Intl Clearance DEL127.175
Northern Kentucky Intl Ground Control121.700
Northern Kentucky Intl Tower118.975
Northern Kentucky Intl Approach119.700
Northern Kentucky Intl Departure126.650

Approach frequencies

ILS-cat-IIIRW36R110.3518.00mi
ILS-cat-IIIRW36C109.918.00mi
ILS-cat-IIRW18R110.7518.00mi
ILS-cat-IIRW36L110.7518.00mi
ILS-cat-IRW09111.918.00mi
ILS-cat-IRW18C111.5518.00mi
ILS-cat-IRW27108.718.00mi
ILS-cat-IRW18L110.1518.00mi
3° GSRW36L110.7518.00mi
3° GSRW36R110.3518.00mi
3° GSRW18C111.5518.00mi
3° GSRW36C109.918.00mi
3° GSRW18R110.7518.00mi
3° GSRW09111.918.00mi
3° GSRW18L110.1518.00mi
3° GSRW27108.718.00mi
Nearby Points of Interest:
W. L. Williams House
-
Florence Fire Station
-
Clinton Blankenbeker House
-
Daniel Thew Wright House
-
Story Mound
-
Short Woods Park Mound
-
Pine Meer
-
Episcopal Church of the Resurrection
-
Village of Addyston Historic District
-
Beech Avenue Houses
-
George Scott House
-
Police Station No. 3
-
Elmwood Hall
-
Lower Price Hill Historic District
-
John Aston Warder House
-
St. Francis Hospital
-
Lewisburg Historic District
-
Bavarian Brewing Company
-
St. Augustine Church Complex
-
Ohio National Guard Armory
-
St. Peter's Lick Run Historic District
-
Dinsmore Homestead
-
Cincinnati and Whitewater Canal Tunnel
-
Mutter Gottes Historic District
-
Mother of God Roman Catholic Church

Runway info

Runway 18R / 36L
 length2443m (8015ft)
 bearing180° / 0°
 width46m (150ft)
 surfaceconcrete
 blast zone61m (200ft) / 61m (200ft)
Runway 18C / 36C
 length3359m (11020ft)
 bearing180° / 0°
 width46m (150ft)
 surfaceconcrete
 blast zone61m (200ft) / 61m (200ft)
Runway 18L / 36R
 length3054m (10020ft)
 bearing180° / 0°
 width46m (150ft)
 surfaceconcrete
 blast zone122m (400ft) / 122m (400ft)
Runway 9 / 27
 length3650m (11975ft)
 bearing90° / 270°
 width46m (150ft)
 surfaceconcrete
 blast zone61m (200ft) / 40m (131ft)

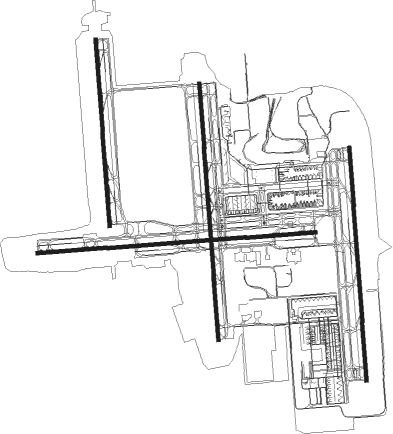

Airport layout


Taxiway locations

 A  B  B3  B4  B5  B6  C  C11
 C6  C7  D  D11  D2  D3  D4  D6
 D7  D8  D9  E  E10  E11  E6  E7
 E8  E9  F  G  J  J2  J3  J4
 J5  J6  K  K10  K11  K2  K3  K4
 K6  K7  K8  K9  M  M2  M4  M6
 M7  N  R  S  S3  S4  S5  S8
 T  T3  T4  T5  T6  T7  T8
Parking locations

 A1  A10  A11  A12  A13  A14  A15  A16
 A18  A19  A21  A3  A9  AmeriFlight  B1  B10
 B11  B12  B13  B15  B16  B17  B18  B19
 B2  B20A  B20B  B21  B22  B23  B24  B25
 B26A  B27  B28  B3  B4  B5  B6  B7
 B8  B9  Delta  DHL  R20  R21  R22  R23
 R6  R7

Nearby beacons

codeidentifierdistbearingfrequency
CVGCINCINNATI VORTAC2.5227°117.30
PWFSPORTYS (BATAVIA) NDB21.186°245
HKFHOOK FIELD (MIDDLETOWN) NDB28.826°239
FLMFALMOUTH VOR/DME29.2138°117
HLBBATESVILLE NDB32.7297°254
MWONIDA (MIDDLETOWN) NDB35.533°223
HWCUBLA (WILMINGTON) NDB41.169°299
GVR(MADISON) DME41.3250°114.65
RIDRICHMOND VOR/DME43.1346°110.60
MXQMIDWEST (WILMINGTON) VOR/DME46.366°112.90
SQPNTHR (CONNERSVILLE) NDB48.7328°227
ATBRUNY (DAYTON) NDB50.323°315
ILAIRBO (WILMINGTON) NDB50.764°407
FFTFRANKFORT VOR53.2196°109.40
FFOPATTERSON (DAYTON) TACAN54.238°115.20
GNBRIDL (LEXINGTON) NDB56170°340
UWLNEW CASTLE NDB58.3322°385
DQNDAYTON VOR/DME59.416°114.50
SGHDME60.746°113.20
XSFSPRINGFIELD TACAN60.946°133.80
IOBMOUNT STERLING NDB67.5145°210
BQM(LOUISVILLE) DME67.8231°112.20
LKLAANG (LOUISVILLE) NDB70.7227°414
IIULOUISVILLE VORTAC71224°114.80

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW09
 BLGRS462mi187°
 CVG511mi269°
 WHWTR1178mi308°
RW18C
 HAGOL480mi27°
 BNGLE453mi35°
 ROCKT1103mi69°
 GIPLE683mi103°
 KENLN566mi170°
 BLGRS4, SILKS462mi187°
 CHCLL571mi224°
 CVG511mi269°
 LOVEY6, WHWTR1178mi308°
RW18L
 HAGOL480mi27°
 BNGLE453mi35°
 ROCKT1103mi69°
 GIPLE683mi103°
 KENLN566mi170°
 SILKS4, BLGRS462mi187°
 CHCLL571mi224°
 CVG511mi269°
 LOVEY6, WHWTR1178mi308°
RW18R
 HAGOL480mi27°
 BNGLE453mi35°
 ROCKT1103mi69°
 GIPLE683mi103°
 KENLN566mi170°
 SILKS4, BLGRS462mi187°
 CHCLL571mi224°
 CVG511mi269°
 LOVEY6, WHWTR1178mi308°
RW27
 HAGOL480mi27°
 BNGLE453mi35°
 ROCKT1103mi69°
 GIPLE683mi103°
 KENLN566mi170°
 SILKS4, BLGRS462mi187°
 CHCLL571mi224°
 CVG511mi269°
 LOVEY6, WHWTR1178mi308°
RW36C
 HAGOL480mi27°
 BNGLE453mi35°
 ROCKT1103mi69°
 GIPLE683mi103°
 KENLN566mi170°
 SILKS4, BLGRS462mi187°
 CHCLL571mi224°
 CVG511mi269°
 WHWTR1, LOVEY6178mi308°
RW36L
 HAGOL480mi27°
 BNGLE453mi35°
 ROCKT1103mi69°
 GIPLE683mi103°
 KENLN566mi170°
 BLGRS4, SILKS462mi187°
 CHCLL571mi224°
 CVG511mi269°
 LOVEY6, WHWTR1178mi308°
RW36R
 HAGOL480mi27°
 BNGLE453mi35°
 ROCKT1103mi69°
 GIPLE683mi103°
 KENLN566mi170°
 BLGRS4, SILKS462mi187°
 CHCLL571mi224°
 CVG511mi269°
 LOVEY6, WHWTR1178mi308°

STAR starting pointsdistanceinbound heading
ALL
 SARGO343.664°
 CEGRM5, SHB647.3120°
 CINCE9, TIGRR338.9234°
 GAVNN643.4300°
 JAKIE544.2320°
 HARDU589.2322°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09-YJADOP (90°)JADOP 5000ft
SEMSE (3mi, 90°) 4000ft
 RNAVSEMSE 4000ft
KAVME (5mi, 90°) 2400ft
KCVG (6mi, 89°) 935ft
BLOCK (9mi, 91°)
CALIF (10mi, 123°) 3000ft
CALIF (turn)
RW09-ZJADOP (90°)JADOP 5000ft
SEMSE (3mi, 90°) 4000ft
 RNAVSEMSE 4000ft
KAVME (5mi, 90°) 2400ft
KCVG (6mi, 89°) 935ft
BLOCK (9mi, 91°)
CALIF (10mi, 123°) 3000ft
CALIF (turn)
RW18CYJUPAL (180°)JUPAL 8000ft
LAMAH (3mi, 180°) 7000ft
ANTRI (3mi, 180°) 6000ft
DULEY (3mi, 180°) 5000ft
KLEPR (3mi, 180°) 4000ft
 RNAVKLEPR 4000ft
LOGOZ (5mi, 180°) 2400ft
KCVG (6mi, 180°) 930ft
JITEV (6mi, 181°)
ZIRKE (11mi, 174°) 3000ft
ZIRKE (turn)
RW18CZJUPAL (180°)JUPAL 8000ft
LAMAH (3mi, 180°) 7000ft
ANTRI (3mi, 180°) 6000ft
DULEY (3mi, 180°) 5000ft
 RNAVDULEY 5000ft
KLEPR (3mi, 180°) 4000ft
LOGOZ (5mi, 180°) 2400ft
KCVG (6mi, 180°) 930ft
JITEV (6mi, 181°)
ZIRKE (11mi, 174°) 3000ft
ZIRKE (turn)
RW18LYSPUDR (184°)SPUDR 7000ft
PHILO (3mi, 180°) 6000ft
CRISM (3mi, 180°) 5000ft
BAIRE (3mi, 180°) 4000ft
 RNAVBAIRE 4000ft
FRAZE (5mi, 180°) 2400ft
KCVG (5mi, 195°) 941ft
LAPER (11mi, 174°)
FLM (21mi, 123°) 3000ft
FLM (turn)
RW18LZSPUDR (184°)SPUDR 7000ft
PHILO (3mi, 180°) 6000ft
CRISM (3mi, 180°) 5000ft
 RNAVCRISM 5000ft
BAIRE (3mi, 180°) 4000ft
FRAZE (5mi, 180°) 2400ft
KCVG (5mi, 195°) 941ft
LAPER (11mi, 174°)
FLM (21mi, 123°) 3000ft
FLM (turn)
RW18RYDRAEK (176°)DRAEK 5000ft
OPHUS (3mi, 180°) 4000ft
BRITL (3mi, 180°) 3000ft
 RNAVBRITL 3000ft
KRTHY (2mi, 180°) 2400ft
KCVG (6mi, 171°) 923ft
BEPEE (10mi, 186°)
AVIEW (18mi, 264°) 3000ft
AVIEW (turn)
RW18RZDRAEK (176°)DRAEK 5000ft
OPHUS (3mi, 180°) 4000ft
 RNAVOPHUS 4000ft
BRITL (3mi, 180°) 3000ft
KRTHY (2mi, 180°) 2400ft
KCVG (6mi, 171°) 923ft
BEPEE (10mi, 186°)
AVIEW (18mi, 264°) 3000ft
AVIEW (turn)
RW27-YVOBCU (271°)VOBCU 5000ft
CIPVO (2mi, 270°) 4400ft
BLOCK (3mi, 270°) 3500ft
 RNAVBLOCK 3500ft
WEGDA (3mi, 270°) 2400ft
KCVG (5mi, 271°) 930ft
SEMSE (11mi, 269°) 3000ft
AVIEW (14mi, 221°)
AVIEW (turn)
RW27-ZVOBCU (271°)VOBCU 5000ft
CIPVO (2mi, 270°) 4400ft
 RNAVCIPVO 4400ft
BLOCK (3mi, 270°) 3500ft
WEGDA (3mi, 270°) 2400ft
KCVG (5mi, 271°) 930ft
SEMSE (11mi, 269°)
AVIEW (14mi, 221°) 3000ft
AVIEW (turn)
RW36CYFLM (318°)FLM
DARKS (14mi, 268°) 7000ft
PUPPT (8mi, 339°) 6000ft
UMPTA (3mi, 0°) 5000ft
CIMRU (3mi, 0°) 4000ft
 RNAVCIMRU 4000ft
JITEV (5mi, 0°) 2400ft
KCVG (6mi, 1°) 893ft
LOGOZ (6mi, 360°)
NEATS (10mi, 2°) 3000ft
NEATS (turn)
RW36CZFLM (318°)FLM
DARKS (14mi, 268°) 7000ft
PUPPT (8mi, 339°) 6000ft
UMPTA (3mi, 0°) 5000ft
 RNAVUMPTA 5000ft
CIMRU (3mi, 0°) 4000ft
JITEV (5mi, 0°) 2400ft
KCVG (6mi, 1°) 893ft
LOGOZ (6mi, 360°)
NEATS (10mi, 2°) 3000ft
NEATS (turn)
RW36LYFLM (318°)FLM
CRITR (17mi, 280°) 6000ft
BRTCL (7mi, 353°) 5000ft
BEPEE (3mi, 0°) 4000ft
CUTAC (3mi, 0°) 3000ft
 RNAVCUTAC 3000ft
ROPRR (2mi, 0°) 2400ft
KCVG (5mi, 12°) 928ft
KRTHY (6mi, 351°)
BATHY (19mi, 316°) 3000ft
BATHY (turn)
RW36LZFLM (318°)FLM
CRITR (17mi, 280°) 6000ft
BRTCL (7mi, 353°) 5000ft
BEPEE (3mi, 0°) 4000ft
 RNAVBEPEE 4000ft
CUTAC (3mi, 0°) 3000ft
ROPRR (2mi, 0°) 2400ft
KCVG (5mi, 12°) 928ft
KRTHY (6mi, 351°)
BATHY (19mi, 316°) 3000ft
BATHY (turn)
RW36RYFLM (318°)FLM
DARKS (14mi, 268°) 6000ft
NUYLI (11mi, 351°) 5000ft
LAPER (3mi, 0°) 4000ft
 RNAVLAPER 4000ft
TROYF (5mi, 0°) 2400ft
KCVG (6mi, 348°) 951ft
BAIRE (10mi, 8°)
MOAKS (21mi, 80°) 3000ft
MOAKS (turn)
RW36RZFLM (318°)FLM
DARKS (14mi, 268°) 6000ft
NUYLI (11mi, 351°) 5000ft
 RNAVNUYLI 5000ft
LAPER (3mi, 0°) 4000ft
TROYF (5mi, 0°) 2400ft
KCVG (6mi, 348°) 951ft
BAIRE (10mi, 8°)
MOAKS (21mi, 80°) 3000ft
MOAKS (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CEGRM5CEGRMVHFleft292 (112)°< 17999ft1.0min timed230
CINCE9BOWRRVHFleft68 (248)°1.0min timedICAO rules
CINCE9HEDEEVHFleft68 (248)°1.0min timedICAO rules
CINCE9TIGRRVHFleft51 (231)°1.0min timed230
GAVNN6GAVNNVHFleft130 (310)°DME 7.0mi230
HARDU5CHEDAVHFleft191 (11)°1.5min timedICAO rules
HARDU5HARDUVHFright154 (334)°DME 10.0miICAO rules
JAKIE5CHEDAVHFleft191 (11)°1.5min timedICAO rules
JAKIE5HAYZLVHFright157 (337)°DME 11.0miICAO rules
SARGO3ENLNDBright267 (87)°DME 10.0miICAO rules
SARGO3JKUKAVHFleft243 (63)°DME 7.0mi265
SARGO3JRICOVHFleft252 (72)°DME 12.0miICAO rules
SARGO3SARGOVHFleft245 (65)°DME 7.0miICAO rules
SHB6CEGRMVHFleft292 (112)°< 17999ft1.0min timed230
SHB6VHPNDBleft272 (92)°1.0min timedICAO rules
TIGRR3BOWRRVHFleft68 (248)°1.0min timedICAO rules
TIGRR3HEDEEVHFleft68 (248)°1.0min timedICAO rules
TIGRR3TIGRRVHFleft51 (231)°1.0min timed230
*) magnetic outbound (inbound) holding course
