Airports for X-Plane

Denver - Denver Intl

Airport details

CountryUnited States of America
StateColorado
RegionK2
AirspaceDenver Ctr
MunicipalityDenver
Elevation5434ft (1656m)
TimezoneGMT -7
Coordinates39.86167, -104.67316
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKDEN
IATA codeDEN
FAA codeDEN

Communication

Denver Intl ATIS125.600
Denver Intl ATIS134.025
Denver Intl UNICOM122.950
Denver Intl Clearance DEL118.750
Denver Intl Ground Control121.850
Denver Intl Ground Control127.500
Denver Intl Tower133.300
Denver Intl Tower135.300
Denver Intl Tower124.300
Denver Intl Tower132.350
Denver Intl Approach119.300
Denver Intl Approach120.350
Denver Intl Departure WEST126.100
Denver Intl Departure NORTH127.050
Denver Intl Departure EAST128.250
Denver Intl Departure SOUTH128.450

Approach frequencies

ILS-cat-IIIRW34R111.118.00mi
ILS-cat-IIIRW35L108.518.00mi
ILS-cat-IIIRW35R110.1518.00mi
ILS-cat-IIIRW34L111.918.00mi
ILS-cat-IRW16L111.118.00mi
ILS-cat-IRW17R108.518.00mi
ILS-cat-IRW17L110.1518.00mi
ILS-cat-IRW16R111.918.00mi
ILS-cat-IRW07111.5518.00mi
ILS-cat-IRW25111.5518.00mi
ILS-cat-IRW08108.918.00mi
ILS-cat-IRW26108.918.00mi
3° GSRW07111.5518.00mi
3° GSRW25111.5518.00mi
3° GSRW17R108.518.00mi
3° GSRW16L111.118.00mi
3° GSRW35L108.518.00mi
3° GSRW17L110.1518.00mi
3° GSRW26108.918.00mi
3° GSRW35R110.1518.00mi
3° GSRW16R111.918.00mi
3° GSRW08108.918.00mi
3° GSRW34L111.918.00mi
3° GSRW34R111.118.00mi
Nearby Points of Interest:
Beierle Farm
-
DeLaney Barn
-
Gully Homestead
-
Granville Fuller House
-
Blanche A. Wilson House
-
M.J. Lavina Robidoux House
-
William Smith House
-
Thede Farmhouse
-
Richthofen Place Parkway
-
City Park Golf
-
East Sixth Avenue Parkway
-
Cranmer House
-
Lloyd M. Joshel House
-
Pearce–McAllister Cottage
-
Bonfils Memorial Theatre
-
Owen E. LeFevre House
-
Melvin School
-
Cornwall Apartments
-
Christ Methodist Episcopal Church
-
Tears-McFarlane House
-
Caroline Bancroft House
-
Doyle–Benton House
-
Bailey House
-
Adolph J. Zang House
-
Temple Emanuel

Runway info

Runway 16R / 34L
 length4884m (16024ft)
 bearing181° / 1°
 width61m (200ft)
 surfaceconcrete
 blast zone122m (400ft) / 122m (400ft)
Runway 16L / 34R
 length3664m (12021ft)
 bearing181° / 1°
 width46m (150ft)
 surfaceconcrete
 blast zone122m (400ft) / 122m (400ft)
Runway 17R / 35L
 length3663m (12018ft)
 bearing181° / 1°
 width46m (150ft)
 surfaceconcrete
 blast zone122m (400ft) / 122m (400ft)
Runway 17L / 35R
 length3663m (12018ft)
 bearing181° / 1°
 width46m (150ft)
 surfaceconcrete
 blast zone123m (404ft) / 122m (400ft)
Runway 7 / 25
 length3648m (11969ft)
 bearing90° / 270°
 width46m (150ft)
 surfaceconcrete
 blast zone121m (397ft) / 122m (400ft)
Runway 8 / 26
 length3648m (11969ft)
 bearing90° / 270°
 width46m (150ft)
 surfaceconcrete
 blast zone122m (400ft) / 122m (400ft)

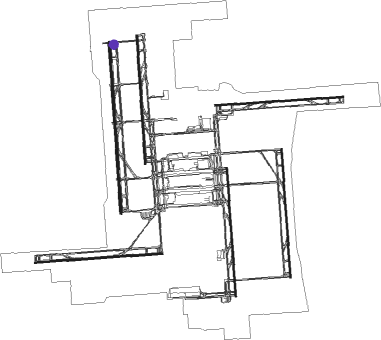

Airport layout - taxiway location D12


Taxiway locations

 A  AA  AN  AS  B  B10  B3  B4
 B7  B8  B9  BN  BS  CN  CS  D
 D11  D12  D2  D3  D5  D6  D8  D9
 DN  DS  EA  EC  ED  F  F1  F10
 F12  F2  F3  F4  F6  F7  F8  F9
 G  H  J  K  L  M  M10  M2
 M4  M5  M6  M7  M9  P  P2  P3
 P4  P6  P7  P8  P9  R  R1  R2
 R3  R4  R6  R7  R8  R9  SA  SC
 WA  WB  WC  WD  WE  Z  Z1  ZN
 ZS
Parking locations

 A71  A73  A75  A77  A79  A81  A83  AE2
 AE4  AE6  AE8  Cargo  CE1  CE2  CE3  CE4
 CE5  CE6  De-Ice  Fedex  Frontier  Gate  Regional  Signature
 United  UPS

Nearby beacons

codeidentifierdistbearingfrequency
DVVMILE HIGH (DENVER) VORTAC2.956°114.70
DENDENVER VOR/DME3166°117.90
BKFBUCKLEY (AURORA) TACAN9.9207°109.60
FQFFALCON (DENVER) VORTAC10.5163°116.30
BJCJEFFCO (DENVER) VOR/DME21.6276°115.40
FNCOLLN (FT COLLINS-LOVELAND) NDB33329°400
GLLGILL VOR/DME38.911°114.20
BRKBLACK FOREST VOR/DME55.1178°112.50

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
ALL
 YELLO4258mi22°
 PLAIN1131mi106°
 ROCKI582mi275°
RW08
 HHOTH2121mi20°
 CHUWY1128mi47°
 EEONS8152mi81°
 EMMYS8153mi85°
 EXTAN7152mi96°
 EPKEE7181mi102°
 SLEEK2117mi151°
 SABTH2164mi156°
 SUDDZ1122mi198°
 SMMUR2106mi220°
 BAYLR6102mi253°
 CONNR794mi261°
 COORZ686mi268°
 ZIMMR383mi275°
 DDRTH1120mi315°
 XXWNG1102mi337°
RW16 (ALL)
 HHOTH2121mi20°
 CHUWY1128mi47°
 EMMYS8153mi85°
 SUDDZ1122mi198°
 CONNR794mi261°
 COORZ686mi268°
 ZIMMR383mi275°
 DDRTH1120mi315°
 XXWNG1102mi337°
RW16L
 EEONS8152mi81°
 EXTAN7152mi96°
 EPKEE7181mi102°
 SLEEK2117mi151°
 SABTH2164mi156°
 SMMUR2106mi220°
 BAYLR6102mi253°
RW16R
 EEONS8152mi81°
 EXTAN7152mi96°
 EPKEE7181mi102°
 SLEEK2117mi151°
 SABTH2164mi156°
 SMMUR2106mi220°
 BAYLR6102mi253°
RW17 (ALL)
 HHOTH2121mi20°
 CHUWY1128mi47°
 CONNR794mi261°
 COORZ686mi268°
 ZIMMR383mi275°
 DDRTH1120mi315°
 XXWNG1102mi337°
RW17L
 EEONS8152mi81°
 EMMYS8153mi85°
 EXTAN7152mi96°
 EPKEE7181mi102°
 SLEEK2117mi151°
 SABTH2164mi156°
 SUDDZ1122mi198°
 SMMUR2106mi220°
 BAYLR6102mi253°
RW17R
 EEONS8152mi81°
 EMMYS8153mi85°
 EXTAN7152mi96°
 EPKEE7181mi102°
 SLEEK2117mi151°
 SABTH2164mi156°
 SUDDZ1122mi198°
 SMMUR2106mi220°
 BAYLR6102mi253°
RW25
 HHOTH2121mi20°
 CHUWY1128mi47°
 EEONS8152mi81°
 EMMYS8153mi85°
 EXTAN7152mi96°
 EPKEE7181mi102°
 SLEEK2117mi151°
 SABTH2164mi156°
 SUDDZ1122mi198°
 SMMUR2106mi220°
 BAYLR6102mi253°
 CONNR794mi261°
 COORZ686mi268°
 ZIMMR383mi275°
 DDRTH1120mi315°
 XXWNG1102mi337°
RW34 (ALL)
 EEONS8152mi81°
 EMMYS8153mi85°
 EXTAN7152mi96°
 EPKEE7181mi102°
 SLEEK2117mi151°
 SABTH2164mi156°
 SUDDZ1122mi198°
 SMMUR2106mi220°
 BAYLR6102mi253°
 CONNR794mi261°
 COORZ686mi268°
RW34L
 HHOTH2121mi20°
 CHUWY1128mi47°
 ZIMMR383mi275°
 DDRTH1120mi315°
 XXWNG1102mi337°
RW34R
 HHOTH2121mi20°
 CHUWY1128mi47°
 ZIMMR383mi275°
 DDRTH1120mi315°
 XXWNG1102mi337°
RW35 (ALL)
 EXTAN7152mi96°
 EPKEE7181mi102°
 SLEEK2117mi151°
 SABTH2164mi156°
 SUDDZ1122mi198°
 SMMUR2106mi220°
 BAYLR6102mi253°
 CONNR794mi261°
 COORZ686mi268°
RW35L
 HHOTH2121mi20°
 CHUWY1128mi47°
 EEONS8152mi81°
 EMMYS8153mi85°
 ZIMMR383mi275°
 DDRTH1120mi315°
 XXWNG1102mi337°
RW35R
 HHOTH2121mi20°
 CHUWY1128mi47°
 EEONS8152mi81°
 EMMYS8153mi85°
 ZIMMR383mi275°
 DDRTH1120mi315°
 XXWNG1102mi337°

STAR starting pointsdistanceinbound heading
ALL
 LARKS246.646°
 POWDR146.760°
 TOMSN845.9123°
 RAMMS845.9138°
 LANDR242.8234°
 DANDD143.9302°
 QUAIL144.1318°
RW07
 TBARR343.845°
 SSKII343.759°
 LONGZ243.1125°
 FLATI342.7140°
 AALLE339.2234°
 LAWGR340.0247°
 CLASH440.3302°
 NIIXX340.4319°
RW08
 TBARR343.845°
 SSKII343.759°
 LONGZ243.1125°
 FLATI342.7140°
 AALLE339.2234°
 LAWGR340.0247°
 CLASH440.3302°
 NIIXX340.4319°
RW16 (ALL)
 TBARR343.845°
 SSKII343.759°
 LONGZ243.1125°
 FLATI342.7140°
 AALLE339.2234°
 LAWGR340.0247°
RW16L
 CLASH440.3302°
 NIIXX340.4319°
RW16R
 CLASH440.3302°
 NIIXX340.4319°
RW17 (ALL)
 TBARR343.845°
 SSKII343.759°
 LONGZ243.1125°
 FLATI342.7140°
 AALLE339.2234°
 LAWGR340.0247°
 CLASH440.3302°
 NIIXX340.4319°
RW25
 TBARR343.845°
 SSKII343.759°
 LONGZ243.1125°
 FLATI342.7140°
 AALLE339.2234°
 LAWGR340.0247°
 CLASH440.3302°
 NIIXX340.4319°
RW26
 TBARR343.845°
 SSKII343.759°
 LONGZ243.1125°
 FLATI342.7140°
 AALLE339.2234°
 LAWGR340.0247°
 CLASH440.3302°
 NIIXX340.4319°
RW34 (ALL)
 TBARR343.845°
 SSKII343.759°
 LONGZ243.1125°
 FLATI342.7140°
 AALLE339.2234°
 LAWGR340.0247°
 CLASH440.3302°
 NIIXX340.4319°
RW35 (ALL)
 TBARR343.845°
 SSKII343.759°
 AALLE339.2234°
 LAWGR340.0247°
 NIIXX340.4319°
RW35L
 LONGZ243.1125°
 FLATI342.7140°
 CLASH440.3302°
RW35R
 LONGZ243.1125°
 FLATI342.7140°
 CLASH440.3302°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07-ZBBOOK (33°)BBOOK 11000ft
BEEKY (4mi, 270°) 9800ft
TAILR (6mi, 1°) 7000ft
RW07-ZHAITR (127°)HAITR 11000ft
DWLLT (4mi, 270°) 9800ft
MNCHH (5mi, 181°) 7200ft
TAILR (turn) 7000ft
RW07-ZSARAH (86°)SARAH
MNCHH (6mi, 90°) 7200ft
TAILR (turn) 7000ft
 RNAVTAILR 7000ft
KDEN (8mi, 83°) 5405ft
(6079mi, 111°) 5900ft
CIDMU (6074mi, 291°)
LIMEX (28mi, 90°) 10000ft
LIMEX (turn)
RW16LZJOBOB (178°)JOBOB
LEETS (11mi, 181°) 7000ft
 RNAVLEETS 7000ft
KDEN (7mi, 174°) 5410ft
(6079mi, 111°) 5900ft
BINBE (6093mi, 291°) 10000ft
BINBE (turn)
RW16RZCLFFF (110°)CLFFF 11000ft
CEPEE (4mi, 1°) 10000ft
AAGEE (4mi, 53°) 8600ft
JABRO (1mi, 90°) 8300ft
JETSN (4mi, 128°) 7000ft
RW16RZSAKIC (176°)SAKIC
JETSN (11mi, 181°) 7000ft
 RNAVJETSN 7000ft
KDEN (7mi, 170°) 5377ft
(6079mi, 111°) 5900ft
BINBE (6093mi, 291°) 10000ft
BINBE (turn)
RW17LZGWENS (187°)GWENS
JAPET (11mi, 181°) 7500ft
 RNAVJAPET 7500ft
IRINE (2mi, 181°) 7000ft
KDEN (6mi, 200°) 5376ft
(6079mi, 111°) 5900ft
LIMEX (6046mi, 291°) 10000ft
LIMEX (turn)
RW17RZHOOPE (183°)HOOPE
JNKBX (11mi, 181°) 7700ft
RW17RZQWIKE (245°)QWIKE 11000ft
STAAM (3mi, 1°) 10000ft
DAVTE (4mi, 308°) 9000ft
PAYOG (turn) 8800ft
JNKBX (4mi, 233°) 7700ft
 RNAVJNKBX 7700ft
JOULE (2mi, 181°) 7000ft
KDEN (5mi, 190°) 5438ft
JAKUR (14mi, 177°)
HOHUM (18mi, 214°) 10000ft
HOHUM (turn)
RW26-ZCAPTJ (228°)CAPTJ 11000ft
BCALN (3mi, 90°) 10000ft
JPBAG (6mi, 181°) 7300ft
GRASP (1mi, 270°) 7000ft
RW26-ZFUZZZ (268°)FUZZZ
JPBAG (6mi, 271°) 7300ft
GRASP (1mi, 270°) 7000ft
RW26-ZJIBAT (304°)JIBAT 11000ft
HOTDG (3mi, 90°) 10000ft
JPBAG (6mi, 0°) 7300ft
GRASP (1mi, 270°) 7000ft
 RNAVGRASP 7000ft
KDEN (8mi, 265°) 5349ft
(6079mi, 111°) 6000ft
NIWOT (6089mi, 291°) 10000ft
NIWOT (turn)
RW34LZKALHR (5°)KALHR
MERKL (3mi, 1°) 10000ft
RNOLD (4mi, 1°) 9000ft
TUGGL (5mi, 1°) 7600ft
WINTR (2mi, 1°) 7000ft
 RNAVWINTR 7000ft
KDEN (6mi, 14°) 5377ft
(6079mi, 111°) 5900ft
HYGEN (6099mi, 291°) 10000ft
HYGEN (turn)
RW34RZBOOBU (3°)BOOBU
BENGL (3mi, 1°) 10000ft
BOENG (5mi, 1°) 9000ft
BSAYN (4mi, 1°) 7700ft
RW34RZHIMOM (62°)HIMOM 11000ft
MCMUL (3mi, 182°) 10000ft
KUGLN (4mi, 129°) 8700ft
BSAYN (4mi, 53°) 7700ft
 RNAVBSAYN 7700ft
CORDE (2mi, 1°) 7000ft
KDEN (5mi, 11°) 5413ft
(6079mi, 111°) 6000ft
HYGEN (6099mi, 291°) 10000ft
HYGEN (turn)
RW35LZCRUUP (358°)CRUUP
CHOLA (3mi, 1°) 10000ft
CELBI (3mi, 1°) 9000ft
DYMON (6mi, 1°) 7000ft
 RNAVDYMON 7000ft
KDEN (7mi, 354°) 5491ft
(6079mi, 111°) 10000ft
GLL (6067mi, 291°) 10000ft
GLL (turn)
RW35RZDOGGG (290°)DOGGG 11000ft
MSIMS (3mi, 181°) 10000ft
FRONZ (7mi, 271°) 7000ft
RW35RZDORRY (355°)DORRY
DEANE (3mi, 1°) 9000ft
DRUMM (3mi, 1°) 9000ft
FRONZ (7mi, 1°) 7000ft
 RNAVFRONZ 7000ft
KDEN (7mi, 345°) 5429ft
(6079mi, 111°) 5900ft
YIMZO (6057mi, 291°) 8000ft
YIMZO (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AALLE3AALLEVHFleft58 (238)°DME 10.0miICAO rules
AALLE3BIDDRVHFright59 (239)°DME 11.0miICAO rules
AALLE3HEDDDVHFleft51 (231)°DME 10.0miICAO rules
AALLE3NYTROVHFright354 (174)°DME 12.0miICAO rules
AALLE3PORDRVHFleft59 (239)°DME 12.0miICAO rules
CLASH4CLASHVHFleft113 (293)°DME 10.0miICAO rules
CLASH4DYLLNVHFleft114 (294)°< 60000ftDME 12.0miICAO rules
CLASH4EVRLYVHFleft116 (296)°DME 10.0miICAO rules
CLASH4ININNVHFleft98 (278)°DME 12.0miICAO rules
CLASH4LYNKNVHFright114 (294)°DME 12.0miICAO rules
CLASH4OATHEVHFright81 (261)°1.5min timedICAO rules
DANDD1DANDDVHFleft125 (305)°1.0min timedICAO rules
DANDD1KIPPYVHFright125 (305)°1.0min timedICAO rules
DANDD1OATHEVHFright81 (261)°1.5min timedICAO rules
DANDD1PRAGGVHFright125 (305)°1.0min timedICAO rules
FLATI3BBOCOVHFleft287 (107)°DME 11.0miICAO rules
FLATI3ELLDOVHFright288 (108)°DME 10.0miICAO rules
FLATI3GNOLAVHFright304 (124)°DME 12.0miICAO rules
FLATI3HIPEEVHFleft281 (101)°DME 12.0miICAO rules
FLATI3MSTSHVHFright280 (100)°DME 12.0miICAO rules
LANDR2BFFNDBright65 (245)°1.5min timedICAO rules
LANDR2LANDRVHFleft38 (218)°1.0min timedICAO rules
LANDR2LIBIEVHFleft34 (214)°1.0min timedICAO rules
LANDR2SNYNDBleft74 (254)°1.0min timedICAO rules
LARKS2HBUNDBleft211 (31)°1.0min timedICAO rules
LARKS2HICKYVHFleft220 (40)°1.0min timedICAO rules
LARKS2LARKSVHFleft220 (40)°1.0min timedICAO rules
LARKS2MURFEVHFleft220 (40)°1.0min timedICAO rules
LARKS2TERROVHFright220 (40)°1.0min timedICAO rules
LAWGR3BRWRYVHFright70 (250)°DME 12.0miICAO rules
LAWGR3DUNKLVHFright70 (250)°DME 12.0miICAO rules
LAWGR3LAWGRVHFright68 (248)°DME 12.0miICAO rules
LAWGR3PLZNRVHFright68 (248)°DME 10.0miICAO rules
LAWGR3PPINTVHFright68 (248)°DME 10.0miICAO rules
LONGZ2BYYKEVHFright268 (88)°DME 12.0miICAO rules
LONGZ2FLNELVHFleft274 (94)°DME 10.0miICAO rules
LONGZ2GRAYZVHFleft267 (87)°DME 12.0miICAO rules
LONGZ2TORYSVHFright249 (69)°DME 12.0miICAO rules
LONGZ2VESTLVHFright268 (88)°DME 12.0miICAO rules
NIIXX3HAGGRVHFright124 (304)°DME 10.0miICAO rules
NIIXX3IDOLLVHFleft124 (304)°< 60000ftDME 10.0miICAO rules
NIIXX3KOORNVHFleft125 (305)°DME 12.0miICAO rules
NIIXX3NARNOVHFright149 (329)°DME 12.0miICAO rules
NIIXX3NIIXXVHFleft124 (304)°DME 10.0miICAO rules
POWDR1GRIPPVHFright218 (38)°1.0min timedICAO rules
POWDR1HBUNDBleft211 (31)°1.0min timedICAO rules
POWDR1SKEEDVHFright225 (45)°1.0min timedICAO rules
QUAIL1CONALVHFright132 (312)°1.0min timedICAO rules
QUAIL1HGONDBleft132 (312)°1.0min timedICAO rules
QUAIL1HYMNSVHFleft123 (303)°1.0min timedICAO rules
QUAIL1QUAILVHFright127 (307)°1.0min timedICAO rules
RAMMS8ALPOEVHFright276 (96)°1.0min timedICAO rules
RAMMS8AUTIMVHFright276 (96)°1.0min timedICAO rules
RAMMS8RAMMSVHFright314 (134)°1.0min timedICAO rules
SSKII3BGDEEVHFright237 (57)°DME 12.0miICAO rules
SSKII3KTOOOVHFright237 (57)°DME 12.0miICAO rules
SSKII3SNOEEVHFright235 (55)°DME 12.0miICAO rules
SSKII3SSKIIVHFright237 (57)°DME 12.0miICAO rules
SSKII3WUNZEVHFright238 (58)°DME 12.0miICAO rules
TBARR3LIFTEVHFright222 (42)°DME 12.0miICAO rules
TBARR3MNARKVHFleft223 (43)°DME 10.0miICAO rules
TBARR3NVVERVHFleft185 (5)°DME 12.0miICAO rules
TBARR3TBARRVHFleft222 (42)°DME 12.0miICAO rules
TBARR3WUNZEVHFright238 (58)°DME 12.0miICAO rules
TOMSN8CHENDBright288 (108)°1.0min timedICAO rules
TOMSN8FROGSVHFright258 (78)°< 17999ft1.0min timedICAO rules
TOMSN8GOULLVHFright256 (76)°DME 10.0miICAO rules
TOMSN8TOMSNVHFright306 (126)°< 17999ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
