Airports for X-Plane

Chicago/west Chicago - Du Page

Airport details

CountryUnited States of America
StateIllinois
RegionK5
AirspaceChicago Ctr
MunicipalityWest Chicago
Elevation756ft (230m)
TimezoneGMT -6
Coordinates41.90705, -88.24800
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKDPA
IATA codeDPA
FAA codeDPA

Communication

Du Page ATIS132.075
Du Page UNICOM122.950
Du Page Clearance DEL119.750
Du Page Ground Control121.800
Du Page Tower120.900
Du Page CHICAGO Approach/Departure133.500

Approach frequencies

ILS-cat-IRW10109.518.00mi
ILS-cat-IRW02L111.718.00mi
3° GSRW10109.518.00mi
3° GSRW02L111.718.00mi
Nearby Points of Interest:
West Chicago City Museum
-
Wayne Village Historic District
-
Oaklawn Farm
-
Hunt House
-
North Geneva Historic District
-
Andrew Weisel House
-
Joel H. Hubbard House
-
Central Geneva Historic District
-
Pure Oil Station
-
Elizabeth Place
-
Geneva Country Day School
-
Fabyan Villa
-
Riverbank Laboratories
-
Mrs. A. W. Gridley House
-
Judge Isaac Wilson House
-
Eastside Community Center
-
Louise White School
-
First Methodist Church of Batavia
-
Durant House
-
Batavia Institute
-
Grand Theatre
-
DuPage County Courthouse
-
Blanchard Hall
-
Ora Pelton House
-
Gifford-Davidson House

Runway info

Runway 2L / 20R
 length2310m (7579ft)
 bearing19° / 199°
 width46m (150ft)
 surfaceconcrete
Runway 2R / 20L
 length1968m (6457ft)
 bearing18° / 198°
 width30m (100ft)
 surfaceconcrete
Runway 10 / 28
 length1449m (4754ft)
 bearing94° / 274°
 width23m (75ft)
 surfaceasphalt
Runway 15 / 33
 length1037m (3402ft)
 bearing140° / 320°
 width30m (100ft)
 surfaceasphalt
 displ threshold0m (0ft) / 58m (190ft)
 blast zone0m (0ft) / 58m (190ft)

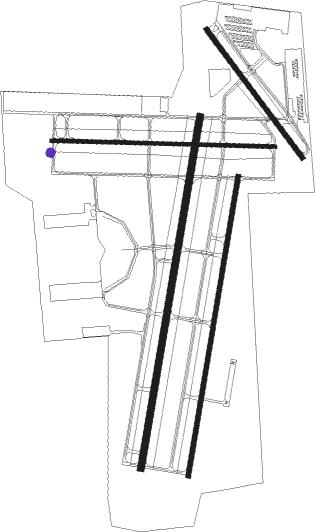

Airport layout - taxiway location F


Taxiway locations

 20L  20R  28  33  B  E  F  G
 H  T  Z
Parking locations

 GA1  GA10  GA2  GA3  GA4  GA5  GA6  GA7
 GA8  GA9  Hangars  Terminal  TERMINAL1  TERMINAL2  TERMINAL3  TERMINAL4
 TERMINAL5

Nearby beacons

codeidentifierdistbearingfrequency
DPADUPAGE (CHICAGO) VOR/DME4.6261°108.40
GCODME16.376°108.25
JOTJOLIET VOR/DME21.8191°112.30
OBKNORTHBROOK VOR/DME2343°113
MXKEDZI (CHICAGO) NDB26.8107°248
CGTCHICAGO HEIGHTS VORTAC38.5120°114.20
UGWAUKE (CHICAGO/WAUKEGAN) NDB38.939°379
EONPEOTONE VORTAC43.4144°113.20
ENWDME43.825°109.20
GYGARIE (GARY) NDB45.8110°236
RFDDME46.5289°110.80
BUU(BURLINGTON) DME47356°114.50
DTGDWIGHT NDB47.2194°344
RAPASER (RACINE) NDB4924°206
IKKDME53.1154°111.60
JVLJANESVILLE VOR/DME54.6307°114.30
HRK(RACINE) DME54.827°117.70
IKLUKOW (KANKAKEE) NDB55.6159°272

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW02 (ALL)
 ELANR6126mi150°
 DARCY6176mi153°
 CARYN697mi166°
 BLOKR680mi176°
 ADELL697mi195°
 OBENE3201mi281°
RW10
 ELANR6126mi150°
 DARCY6176mi153°
 CARYN697mi166°
 BLOKR680mi176°
 ADELL697mi195°
 OBENE3201mi281°
RW15
 ELANR6126mi150°
 DARCY6176mi153°
 CARYN697mi166°
 BLOKR680mi176°
 ADELL697mi195°
 OBENE3201mi281°
RW20 (ALL)
 ELANR6126mi150°
 DARCY6176mi153°
 CARYN697mi166°
 BLOKR680mi176°
 ADELL697mi195°
 OBENE3201mi281°
RW28
 ELANR6126mi150°
 DARCY6176mi153°
 CARYN697mi166°
 BLOKR680mi176°
 ADELL697mi195°
 OBENE3201mi281°
RW33
 ELANR6126mi150°
 DARCY6176mi153°
 CARYN697mi166°
 BLOKR680mi176°
 ADELL697mi195°
 OBENE3201mi281°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02LBOMER (19°)BOMER 3000ft
RW02LJOT (11°)JOT
BOMER (10mi, 1°) 3000ft
RW02LPLANO (51°)PLANO
CEXAB (8mi, 88°) 3000ft
BOMER (8mi, 53°) 3000ft
 RNAVBOMER 3000ft
ZETKO (6mi, 18°) 2500ft
KDPA (6mi, 19°) 801ft
(5327mi, 115°) 1300ft
NUELG (5345mi, 295°) 3000ft
NUELG (turn)
RW02RGIDVE (18°)GIDVE 3000ft
RW02RJOT (11°)JOT
GIDVE (9mi, 1°) 3000ft
RW02RPLANO (51°)PLANO
CEXAB (8mi, 88°) 3000ft
GIDVE (7mi, 58°) 3000ft
 RNAVGIDVE 3000ft
HEGBI (7mi, 18°) 2500ft
KDPA (6mi, 17°) 800ft
(5327mi, 115°) 1300ft
NUELG (5345mi, 295°) 3000ft
NUELG (turn)
RW10DPA (81°)DPA
NUMIZ (8mi, 285°) 2600ft
NUMIZ (turn) 2600ft
RW10HINCK (79°)HINCK
NUMIZ (10mi, 56°) 2600ft
RW10NUELG (101°)NUELG
NUMIZ (7mi, 110°) 2600ft
 RNAVNUMIZ 2600ft
HOSAV (6mi, 94°) 2600ft
KOHYO (4mi, 94°) 1400ft
KDPA (2mi, 100°) 803ft
(5327mi, 115°) 956ft
PEPRE (5321mi, 295°)
JOT (23mi, 209°) 2600ft
JOT (turn)
RW20LDPA (81°)DPA
JOLON (15mi, 39°) 3000ft
JOLON (turn) 3000ft
RW20LFARMM (165°)FARMM
JOLON (16mi, 143°) 3000ft
RW20LNUELG (101°)NUELG
JOLON (22mi, 77°) 3000ft
JOLON (turn) 3000ft
 RNAVJOLON 3000ft
ZOGUB (6mi, 199°) 2500ft
PECBI (3mi, 199°) 1400ft
KDPA (2mi, 202°) 799ft
(5327mi, 115°) 1159ft
GIDVE (5330mi, 295°)
JOT (9mi, 181°) 2500ft
JOT (turn)
RW20RDPA (81°)DPA
DUKBE (15mi, 38°) 3000ft
DUKBE (turn) 3000ft
RW20RFARMM (165°)FARMM
DUKBE (16mi, 143°) 3000ft
RW20RNUELG (101°)NUELG
DUKBE (22mi, 76°) 3000ft
DUKBE (turn) 3000ft
 RNAVDUKBE 3000ft
FRTZZ (6mi, 199°) 2500ft
SUCOP (4mi, 199°) 1360ft
KDPA (2mi, 197°) 796ft
(5327mi, 115°) 1043ft
FABUG (5328mi, 295°)
JOT (16mi, 188°) 2500ft
JOT (turn)

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
