Airports for X-Plane

Shreveport - Shreveport Downtown

Airport details

CountryUnited States of America
StateLouisiana
RegionK4
AirspaceFt Worth Ctr
MunicipalityShreveport
Elevation179ft (55m)
TimezoneGMT -6
Coordinates32.54022, -93.74503
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKDTN
IATA codeDTN
FAA codeDTN

Communication

SHREVEPORT DOWNTOWN ASOS118.525
SHREVEPORT DOWNTOWN CTAF120.225
SHREVEPORT DOWNTOWN UNICOM122.950
SHREVEPORT DOWNTOWN Clearance DEL120.750
SHREVEPORT DOWNTOWN Ground Control121.650
SHREVEPORT DOWNTOWN Tower120.225
SHREVEPORT DOWNTOWN Approach/Departure123.750
SHREVEPORT DOWNTOWN Approach/Departure119.900

Approach frequencies

LOCRW14111.718.00mi

Runway info

Runway 14 / 32
 length1531m (5023ft)
 bearing136° / 316°
 width46m (150ft)
 surfaceasphalt
 blast zone89m (292ft) / 0m (0ft)
Runway 5 / 23
 length975m (3199ft)
 bearing60° / 240°
 width23m (75ft)
 surfaceasphalt
 displ threshold70m (230ft) / 0m (0ft)

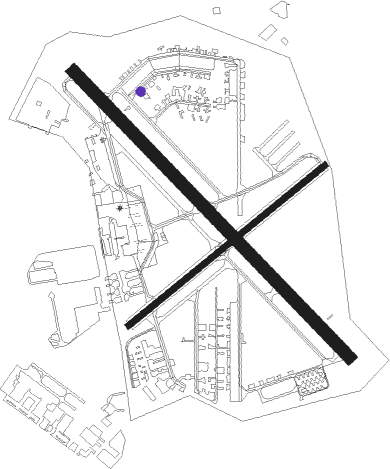

Airport layout - parking location H1


Taxiway locations

 23  32  5  E
Parking locations

 A1  A2  A3  A4  A5  A6  A7  A8
 AUX  C1  C2  C3  C4  C5  D1  D10
 D11  D12  D13  D2  D3  D4  D5  D6
 D7  D8  D9  G1  G10  G11  G12  G13
 G14  G15  G16  G2  G3  G4  G5  G6
 G7  G8  G9  GA  H1  H10  H2  H3
 H4  H5  H6  H7  H8  H9  J1  J10
 J11  J2  J3  J4  J5  J6  J7  J8
 J9  P1  P10  P11  P2  P3  P4  P5
 P6  P7  P8  P9  Q1  Q2  Q3  Q4
 Q5  R1  R10  R11  R2  R3  R4  R5
 R6  R7  R8  R9

Nearby beacons

codeidentifierdistbearingfrequency
BADBARKSDALE (BOSSIER CITY) TACAN4.4116°115.80
EMGELM GROVE VORTAC11.3133°111.20
EICBELCHER (SHREVEPORT) VORTAC14.2344°117.40
RPFCARTHAGE NDB35.3237°332
ATAATLANTA NDB40.6322°347
CZJAMASON (CENTER) NDB47.2210°341
TXTECCO (TEXARKANA) NDB59.6351°234
TXKTEXARKANA VORTAC60.7341°116.30
OOCNATCHITOCHES NDB62.9143°407

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05YOORR (68°)YOORR 2100ft
 RNAVYOORR 2100ft
PHONS (6mi, 68°) 2000ft
WUMAP (5mi, 68°) 437ft
(5595mi, 109°) 579ft
PITBE (5584mi, 289°) 2000ft
PITBE (turn)
RW14EIC (164°)EIC
ZOROD (6mi, 244°) 3100ft
ZOROD (turn) 3100ft
RW14KANNE (99°)KANNE
ZOROD (17mi, 72°) 3100ft
 RNAVZOROD 3100ft
JUVES (3mi, 135°) 2600ft
SOMUE (5mi, 136°) 1900ft
KDTN (6mi, 136°) 218ft
(5595mi, 109°) 429ft
GOCTE (5592mi, 289°)
EMG (6mi, 131°) 3000ft
EMG (turn)
RW23PITBE (240°)PITBE 2000ft
 RNAVPITBE 2000ft
WRONG (6mi, 240°) 2000ft
KDTN (6mi, 240°) 218ft
(5595mi, 109°) 579ft
ZOROD (5603mi, 289°) 3100ft
ZOROD (turn)
RW32JENNA (284°)JENNA
SHOED (9mi, 282°) 3100ft
PEPOE (8mi, 235°) 3100ft
RW32MOKPE (10°)MOKPE
CREPY (10mi, 40°) 4000ft
PEPOE (8mi, 55°) 3100ft
 RNAVPEPOE 3100ft
WEGON (7mi, 316°) 1900ft
KDTN (6mi, 316°) 219ft
(5595mi, 109°) 579ft
ZOROD (5603mi, 289°) 3100ft
ZOROD (turn)
