Airports for X-Plane

Houston - Ellington Fld

Airport details

CountryUnited States of America
StateTexas
RegionK4
AirspaceHouston Oceanic Ctr
MunicipalityHouston
Elevation32ft (10m)
TimezoneGMT -6
Coordinates29.60733, -95.15875
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKEFD
IATA codeEFD
FAA codeEFD

Communication

Ellington Fld ATIS135.575
Ellington Fld UNICOM122.950
Ellington Fld Ground Control121.600
Ellington Fld Tower126.050
Ellington Fld HOUSTON Approach134.450
Ellington Fld Houston Dep134.450

Approach frequencies

ILS-cat-IRW35L111.118.00mi
ILS-cat-IRW22110.118.00mi
ILS-cat-IRW17R110.318.00mi
3° GSRW35L111.118.00mi
3° GSRW22110.118.00mi
3° GSRW17R110.318.00mi
Nearby Points of Interest:
Lunar and Planetary Institute
-
Christopher C. Kraft Jr. Mission Control Center
-
Washburn Tunnel
-
San Jacinto Battleground State Historic Site
-
Houston Negro Hospital School of Nursing Building
-
Houston Negro Hospital
-
Almeda Road Bridge over Brays Bayou
-
Arthur B. Cohn House
-
National Biscuit Company Building
-
Benjamin Apartments
-
Aviary at the Houston Zoo
-
First Evangelical Church
-
McKee Street Bridge
-
United States Customhouse
-
Isabella Court
-
1910 Harris County Courthouse
-
Antioch Missionary Baptist Church
-
Houston Post-Dispatch Building
-
San Jacinto Street Bridge over Buffalo Bayou
-
Stowers Building
-
City National Bank Building
-
James Bute Company Warehouse
-
Pillot Building
-
S. H. Kress and Co. Building
-
Scanlan Building

Runway info

Runway 17R / 35L
 length2753m (9032ft)
 bearing179° / 359°
 width46m (150ft)
 surfaceconcrete
 blast zone255m (837ft) / 255m (837ft)
Runway 4 / 22
 length2442m (8012ft)
 bearing48° / 228°
 width46m (150ft)
 surfaceconcrete
 blast zone122m (400ft) / 255m (837ft)
Runway 17L / 35R
 length1411m (4629ft)
 bearing179° / 359°
 width23m (75ft)
 surfaceconcrete

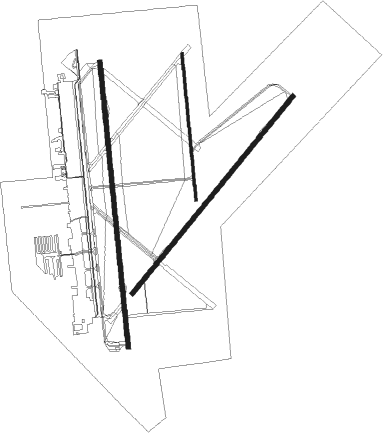

Airport layout


Taxiway locations

 A  B  C  D  E  F  G  H
Parking locations

 GA  NASA  Southwest

Nearby beacons

codeidentifierdistbearingfrequency
EFDELLINGTON (HOUSTON) TACAN0213°109.40
MHFTRINITY (SMITH POINT) VOR/DME21.798°113.60
IAHHUMBLE (HOUSTON) VORTAC23.1332°116.60
BVPNIXIN (HOUSTON) NDB23.3352°326
VUHSCHOLES (GALVESTON) VOR/DME25.3139°113
DASDAISETTA VORTAC4441°116.90
CXALIBI (HOUSTON) NDB52.2339°281
GDEGOODHUE (BEAUMONT) NDB56.664°368
TNVNAVASOTA VOR/DME62.1307°115.90

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
ALL
 ELD1252mi33°
 AEX3273mi71°
 IDU1258mi243°
 PSX2172mi271°
 LOA4223mi328°
 CRIED1164mi338°
 GIFFA1107mi357°
RW04
 INDIE8222mi27°
 LURIC8217mi39°
 STRYA8224mi66°
 MMALT5145mi89°
 HOODO786mi112°
 WATFO5102mi144°
 KARRR6143mi231°
 BORRN475mi278°
 STYCK8164mi338°
 BLTWY7108mi344°
 WYLSN8117mi348°
RW17 (ALL)
 INDIE8222mi27°
 LURIC8217mi39°
 STRYA8224mi66°
 MMALT5145mi89°
 HOODO786mi112°
 WATFO5102mi144°
 KARRR6143mi231°
 BORRN475mi278°
 STYCK8164mi338°
 BLTWY7108mi344°
 WYLSN8117mi348°
RW22
 INDIE8222mi27°
 LURIC8217mi39°
 STRYA8224mi66°
 MMALT5145mi89°
 HOODO786mi112°
 WATFO5102mi144°
 KARRR6143mi231°
 BORRN475mi278°
 STYCK8164mi338°
 BLTWY7108mi344°
 WYLSN8117mi348°
RW35 (ALL)
 INDIE8222mi27°
 LURIC8217mi39°
 STRYA8224mi66°
 MMALT5145mi89°
 HOODO786mi112°
 WATFO5102mi144°
 KARRR6143mi231°
 BORRN475mi278°
 STYCK8164mi338°
 BLTWY7108mi344°
 WYLSN8117mi348°

STAR starting pointsdistanceinbound heading
ALL
 TSHRT151.473°
 SNIFY166.3120°
 BLUBL472.7121°
 OHIIO432.1188°
 HUDZY434.9215°
 CESAN474.8226°
 WAPPL657.1233°
 TKNIQ342.4298°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04ZITIB (19°)ZITIB
FODGE (6mi, 310°) 1700ft
 RNAVFODGE 1700ft
IGNAW (6mi, 48°) 1700ft
KEFD (6mi, 45°) 76ft
(5674mi, 107°) 432ft
EWOFY (5670mi, 287°)
CEROP (16mi, 130°)
WATFO (8mi, 228°) 3100ft
WATFO (turn)
RW22OPTOC (256°)OPTOC
SEVSY (10mi, 291°) 2000ft
 RNAVSEVSY 2000ft
WZDOM (6mi, 228°) 2000ft
YAKUD (4mi, 228°) 780ft
KEFD (3mi, 232°) 84ft
(5674mi, 107°) 500ft
WATFO (5665mi, 287°) 3100ft
WATFO (turn)
RW35LWESIM (33°)WESIM
PAHSU (10mi, 80°) 2400ft
RW35LZEVAX (326°)ZEVAX
PAHSU (10mi, 278°) 2400ft
 RNAVPAHSU 2400ft
MARZY (8mi, 359°) 2100ft
HUGAN (5mi, 359°) 520ft
KEFD (2mi, 7°) 82ft
(5674mi, 107°) 1500ft
WATFO (5665mi, 287°) 3100ft
WATFO (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BLUBL4ELLVRVHFright351 (171)°18000ft - 45000ft1.5min timedICAO rules
HUDZY4BRWCKVHFleft55 (235)°DME 20.0miICAO rules
HUDZY4WAPPLVHFleft55 (235)°DME 10.0miICAO rules
OHIIO4LYMBOVHFright71 (251)°DME 20.0miICAO rules
OHIIO4ZEEKKVHFright46 (226)°DME 10.0miICAO rules
SNIFY1ELLVRVHFright351 (171)°18000ft - 45000ft1.5min timedICAO rules
TKNIQ3TKNIQVHFleft91 (271)°DME 10.0miICAO rules
TSHRT1ALIEFVHFright209 (29)°DME 10.0miICAO rules
TSHRT1HYDRLVHFright209 (29)°DME 10.0miICAO rules
WAPPL6BRWCKVHFleft55 (235)°DME 20.0miICAO rules
WAPPL6WAPPLVHFleft55 (235)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
