Airports for X-Plane

Monroe - Monroe Muni

Airport details

CountryUnited States of America
StateWisconsin
RegionK5
AirspaceChicago Ctr
MunicipalityMonroe
Elevation1084ft (330m)
TimezoneGMT -6
Coordinates42.61490, -89.59040
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKEFT
IATA coden/a
FAA codeEFT

Communication

Monroe Muni AWOS 3118.375
Monroe Muni CTAF/UNICOM123.050
Monroe Muni ROCKFORD Approach/Departure126.000

Runway info

Runway 12 / 30
 length1522m (4993ft)
 bearing115° / 295°
 width23m (75ft)
 surfaceasphalt
 blast zone91m (299ft) / 0m (0ft)
Runway 2 / 20
 length915m (3002ft)
 bearing22° / 202°
 width23m (75ft)
 surfaceasphalt
 blast zone64m (210ft) / 137m (449ft)

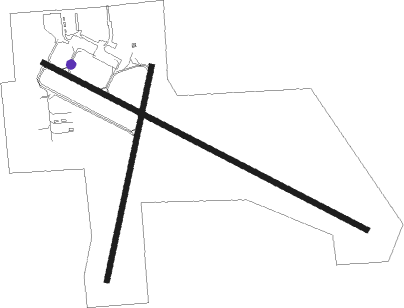

Airport layout - taxiway location A1


Taxiway locations

 30  A  A1  A2  A3
Parking locations

 Ramp

Nearby beacons

codeidentifierdistbearingfrequency
JVLJANESVILLE VOR/DME21.797°114.30
RFDDME29.1135°110.80
MSNMADISON VORTAC33.625°108.60
PLLPOLO VOR/DME39.1174°111.20
LNRROCK DME47.2321°116.05
RYVROCK RIVER (WATERTOWN) NDB50.757°371
DLLDELLS (BARABOO) VORTAC56.7350°117
UNUJUNEAU NDB62.547°344
FNHILLZ (CLINTON) NDB62.8223°517
CVADAVENPORT VORTAC67.4225°113.80

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW12BAULK (97°)BAULK
NUBUE (15mi, 97°) 3000ft
ALOOF (5mi, 39°) 3000ft
RW12DALEY (146°)DALEY
MARKM (7mi, 162°) 3000ft
ALOOF (5mi, 220°) 3000ft
RW12MADDY (58°)MADDY
NUBUE (10mi, 329°) 3000ft
ALOOF (5mi, 39°) 3000ft
 RNAVALOOF 3000ft
IGOGY (6mi, 114°) 2700ft
KEFT (5mi, 115°) 1126ft
FALKN (3mi, 113°)
DAVIS (11mi, 134°) 3000ft
DAVIS (turn)
RW30DAVIS (310°)DAVIS
XOTIY (5mi, 13°) 3000ft
RW30GENZU (276°)GENZU
XOTIY (5mi, 220°) 3000ft
 RNAVXOTIY 3000ft
ZEBRU (6mi, 294°) 2700ft
KEFT (5mi, 294°) 1104ft
(5387mi, 115°) 1490ft
DAVIS (5378mi, 295°) 3000ft
DAVIS (turn)
