Airports for X-Plane

El Paso - El Paso Intl

Airport details

CountryUnited States of America
StateTexas
RegionK4
AirspaceAlbuquerque Ctr
MunicipalityEl Paso
Elevation3958ft (1206m)
TimezoneGMT -7
Coordinates31.80733, -106.37636
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKELP
IATA codeELP
FAA codeELP

Communication

El Paso Intl ATIS120.000
El Paso Intl UNICOM122.950
El Paso Intl Clearance DEL125.000
El Paso Intl Ground Control121.900
El Paso Intl Tower118.300
El Paso Intl Approach124.250
El Paso Intl Approach119.150
El Paso Intl Departure119.150

Approach frequencies

LOCRW04111.518.00mi
ILS-cat-IRW22111.518.00mi
3° GSRW22111.518.00mi
Nearby Points of Interest:
Fort Bliss Main Post Historic District
-
Chamizal National Memorial
-
House at 912 Magoffin Avenue
-
United States Court House
-
U.S. Post Office
-
Popular Department Store
-
Roberts-Banner Building
-
State National Bank
-
First Mortgage Company Building
-
Old Bnai Zion Synagogue
-
Anson Mills Building
-
Alhambra Theatre
-
Woman's Club of El Paso
-
Sunset Heights
-
Henry C. Trost House
-
Franklin Canal
-
O. T. Bassett Tower
-
Hueco Tanks
-
Frank and Amelia Jones House

Runway info

Runway 4 / 22
 length3664m (12021ft)
 bearing54° / 234°
 width46m (150ft)
 surfaceasphalt
 blast zone255m (837ft) / 61m (200ft)
Runway 8R / 26L
 length2755m (9039ft)
 bearing93° / 273°
 width46m (150ft)
 surfaceasphalt
 blast zone15m (49ft) / 53m (174ft)
Runway 8L / 26R
 length1674m (5492ft)
 bearing93° / 273°
 width23m (75ft)
 surfaceconcrete

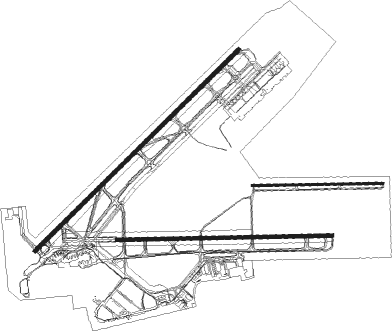

Airport layout


Taxiway locations

 A  D  F  G  H  J  K  K1
 K2  L  M  N  P  Q  R  S
 T  U  V  W  Y  Y1  Y2  Y3
Parking locations

 ATI  Atlsntic  Dade  DHL  El  FedEx  Gate  NASA
 Remote  Sierra  Surratt  UPS  USBP

Nearby beacons

codeidentifierdistbearingfrequency
ELVALTR (EL PASO) NDB4.348°242
ELPEL PASO VORTAC4.885°115.20
EWMNEWMAN VORTAC10.136°112.40
CJSJUAREZ (CIUDAD JUAREZ) VOR/DME10.5196°116.70

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW04
 LATVE3128mi49°
 TDOWN366mi93°
 NEVUE3182mi104°
 JCOXX2122mi275°
RW08R
 LATVE3128mi49°
 TDOWN366mi93°
 NEVUE3182mi104°
 ATKNN5102mi329°
RW22
 LATVE3128mi49°
 TDOWN366mi93°
 NEVUE3182mi104°
 ATKNN5102mi329°
RW26L
 LATVE3128mi49°
 TDOWN366mi93°
 NEVUE3182mi104°
 ATKNN5102mi329°

STAR starting pointsdistanceinbound heading
ALL
 SAMMR324.3262°
 BEAHR332.2291°
RW04
 HSKNS133.992°
 MOLLY523.4126°
 WAZKO123.8137°
RW08R
 MOLLY523.4126°
 WAZKO123.8137°
RW22
 MOLLY523.4126°
 WAZKO123.8137°
RW26 (ALL)
 MOLLY523.4126°
RW26L
 WAZKO123.8137°
RW26R
 WAZKO123.8137°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04-YBECON (87°)BECON 9000ft
ZORVA (10mi, 95°) 5900ft
WEGUD (2mi, 95°) 5300ft
DWLNG (turn) 5000ft
RW04-YKOACH (96°)KOACH 8000ft
WUTIN (4mi, 113°) 6100ft
BEZIC (3mi, 113°) 5600ft
WEGUD (turn) 5300ft
DWLNG (turn) 5000ft
 RNAVDWLNG 5000ft
UDECI (1mi, 65°)
KELP (3mi, 63°) 3972ft
(6238mi, 107°) 4400ft
FABAN (6217mi, 287°) 7500ft
FABAN (turn)
RW04-ZBEAHR (285°)BEAHR 8000ft
PEBCY (12mi, 272°) 6200ft
FEPOR (3mi, 272°) 6200ft
GEDEY (turn) 5900ft
CURIS (3mi, 292°) 5100ft
RW04-ZSARRT (257°)SARRT 8000ft
HAMGI (13mi, 245°) 6700ft
GEDEY (3mi, 245°) 5900ft
CURIS (3mi, 292°) 5100ft
 RNAVCURIS 5100ft
UDECI (1mi, 22°)
KELP (3mi, 63°) 3972ft
(6238mi, 107°) 4400ft
FABAN (6217mi, 287°) 7500ft
FABAN (turn)
RW08RXBECON (87°)BECON 9000ft
KESHI (9mi, 95°) 6300ft
HHFIV (3mi, 93°) 5800ft
TEEAA (2mi, 69°) 5100ft
ZOOTZ (turn) 5000ft
RW08RXHAAKU (321°)HAAKU 8000ft
LGUNA (5mi, 273°) 6400ft
ZOOTZ (4mi, 332°) 5000ft
RW08RXKOACH (96°)KOACH 8000ft
WUTIN (4mi, 113°) 7000ft
UNYSE (3mi, 119°) 6200ft
HHFIV (1mi, 106°) 5800ft
TEEAA (2mi, 69°) 5100ft
ZOOTZ (turn) 5000ft
 RNAVZOOTZ 5000ft
JJARM (2mi, 68°)
KELP (2mi, 85°) 3977ft
(6238mi, 107°) 4400ft
FABAN (6217mi, 287°) 7500ft
FABAN (turn)
RW22-YWHOLE (255°)WHOLE
PIERS (11mi, 271°) 8800ft
PRISO (6mi, 271°) 6600ft
 RNAVPRISO 6600ft
FISPI (5mi, 234°) 5900ft
VALTR (3mi, 234°) 5100ft
KELP (4mi, 228°) 4004ft
(6238mi, 107°) 4600ft
PUDRE (6239mi, 287°) 4600ft
ELP (6mi, 83°) 6900ft
ELP (turn)
RW22-ZBEAHR (285°)BEAHR 8000ft
EKIDE (6mi, 307°) 8000ft
FABOR (6mi, 307°) 6100ft
GODLE (2mi, 288°) 5600ft
EMOLE (2mi, 253°) 5100ft
RW22-ZSARRT (257°)SARRT 8000ft
CABNU (4mi, 271°) 6900ft
GODLE (4mi, 271°) 5600ft
EMOLE (2mi, 253°) 5100ft
RW22-ZTELIE (232°)TELIE 6600ft
FISPI (5mi, 234°) 5900ft
EMOLE (3mi, 234°) 5100ft
RW22-ZWIKKR (151°)WIKKR 9000ft
VICMA (6mi, 116°) 7000ft
UGAYA (3mi, 116°) 6500ft
JOSUE (2mi, 134°) 6000ft
EMOLE (3mi, 195°) 5100ft
 RNAVEMOLE 5100ft
KELP (4mi, 228°) 4005ft
(6238mi, 107°) 4400ft
FABAN (6217mi, 287°) 7500ft
FABAN (turn)
RW26LYFABAN (282°)FABAN
BUSEY (12mi, 290°) 6900ft
RW26LYPIERS (244°)PIERS
BUSEY (10mi, 203°) 6900ft
 RNAVBUSEY 6900ft
HOWRD (7mi, 273°) 5200ft
GUVNE (2mi, 273°) 4540ft
WANUN (turn) 4243ft
(6236mi, 107°) 4380ft
FABAN (6217mi, 287°) 7500ft
FABAN (turn)
RW26LZBEAHR (285°)BEAHR 8000ft
AGOPE (5mi, 289°) 7000ft
OLTIE (5mi, 289°) 5500ft
HOWRD (turn) 5200ft
RW26LZBUSEY (274°)BUSEY 6900ft
HOWRD (7mi, 273°) 5200ft
RW26LZSARRT (257°)SARRT 8000ft
FINAB (4mi, 244°) 6800ft
BIVDE (3mi, 244°) 5500ft
HOWRD (2mi, 259°) 5200ft
RW26LZWIKKR (151°)WIKKR 9000ft
KASPN (8mi, 121°) 7600ft
JETOG (7mi, 121°) 6400ft
HOWRD (5mi, 202°) 5200ft
 RNAVHOWRD 5200ft
KELP (5mi, 277°) 4017ft
(6238mi, 107°) 4400ft
FABAN (6217mi, 287°) 7500ft
FABAN (turn)
RW26RFABAN (282°)FABAN
APUVE (11mi, 293°) 6900ft
RW26RPIERS (244°)PIERS
APUVE (10mi, 198°) 6900ft
 RNAVAPUVE 6900ft
WUGPI (4mi, 273°) 6200ft
HODAK (3mi, 273°) 5400ft
JALMO (2mi, 273°) 4620ft
KELP (3mi, 273°) 3994ft
(6238mi, 107°) 4362ft
FABAN (6217mi, 287°) 7500ft
FABAN (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BEAHR3DLINEVHFleft89 (269)°DME 7.0miICAO rules
HSKNS1HSKNSVHFleft263 (83)°DME 10.0miICAO rules
SAMMR3SKIIRVHFright75 (255)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
