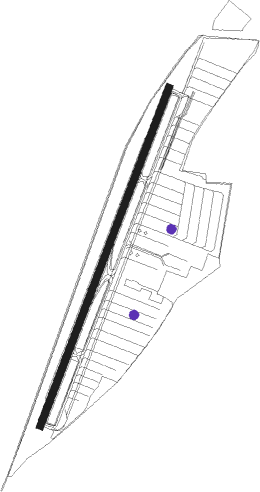

El Monte - San Gabriel Valley Muni
Airport details
| Country | United States of America |
| State | California |
| Region | K2 |
| Airspace | Los Angeles Ctr |
| Municipality | El Monte |
| Elevation | 293ft (89m) |
| Timezone | GMT -8 |
| Coordinates | 34.08669, -118.03352 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | KEMT |
| IATA code | EMT |
| FAA code | EMT |
Communication
| San Gabriel Valley Muni ATIS | 118.750 |
| San Gabriel Valley Muni Ground | 125.900 |
| San Gabriel Valley Muni Tower | 121.200 |
| San Gabriel Valley Muni SOCAL Approach | 125.500 |
| San Gabriel Valley Muni SOCAL Departure | 125.500 |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| POM | POMONA VORTAC | 12.2 | 92° | 110.40 |
| SLI | SEAL BEACH (LOS ALAMITOS) VORTAC | 18.2 | 184° | 115.70 |
| SMO | SANTA MONICA VOR/DME | 21.5 | 260° | 110.80 |
| LAX | LOS ANGELES VORTAC | 21.8 | 249° | 113.60 |
| VNY | VAN NUYS VOR/DME | 24.2 | 287° | 113.10 |
| PDZ | PARADISE (ONTARIO) VORTAC | 27 | 108° | 112.20 |
| ELB | EL TORO (SANTA ANA) VOR/DME | 28.9 | 144° | 117.20 |
| RAL | RIVERSIDE VOR | 30.1 | 103° | 112.40 |
| PMD | PALMDALE VORTAC | 32.7 | 357° | 114.50 |
| SB | PETIS (SAN BERNARDINO) NDB | 33.2 | 93° | 397 |
| RIV | MARCH (RIVERSIDE) TACAN | 39.2 | 103° | 113 |
| VCV | VICTORVILLE VOR/DME | 44.1 | 52° | 109.05 |
| LHS | LAKE HUGHES VORTAC | 44.8 | 318° | 114.35 |
| FIM | FILLMORE VORTAC | 45.1 | 288° | 112.50 |
| HDF | HOMELAND (RIVERSIDE) VOR | 46.1 | 110° | 113.40 |
| SXC | SANTA CATALINA VORTAC | 46.8 | 209° | 111.40 |
| EDW | EDWARDS VORTAC | 55.8 | 19° | 116.40 |
| NFG | CAMP PENDLETON (OCEANSIDE TACAN | 58.5 | 141° | 111.80 |
| GMN | GORMAN VORTAC | 59.4 | 311° | 116.10 |
| OCN | OCEANSIDE VORTAC | 59.4 | 144° | 115.30 |
Departure and arrival routes
| Transition altitude | 18000ft |
| Transition level | 18000ft |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| ALL | |||
| ZIGGY7 | 37.1 | 267° | |
| RW01 | |||
| SETER5 | 47.3 | 281° | |
| RW19 | |||
| SETER5 | 47.3 | 281° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RWNVB | DARTS (106°) | DARTS IMEFY (4mi, 107°) 3800ft LERDE (2mi, 107°) 3100ft |
| RNAV | LERDE 3100ft WALLY (3mi, 107°) 2200ft ZEPUN (3mi, 107°) 1120ft BDWEL (turn) 960ft (6781mi, 106°) 960ft ADAMM (6772mi, 286°) PDZ (15mi, 109°) 4000ft PDZ (turn) |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| SETER5 | JLI | NDB | left | 108 (288)° | 1.5min timed | ICAO rules | |
| ZIGGY7 | PETIS | VHF | right | 76 (256)° | 1.0min timed | ICAO rules | |
| *) magnetic outbound (inbound) holding course | |||||||
