Airports for X-Plane

Fort Worth - Fort Worth Meacham Intl

Airport details

CountryUnited States of America
StateTexas
RegionK4
AirspaceFt Worth Ctr
MunicipalityFort Worth
Elevation708ft (216m)
TimezoneGMT -6
Coordinates32.81535, -97.36389
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKFTW
IATA codeFTW
FAA codeFTW

Communication

Fort Worth Meacham Intl ATIS120.700
Fort Worth Meacham Intl Clearance DEL124.650
Fort Worth Meacham Intl Ground Control121.900
Fort Worth Meacham Intl Tower118.300
Fort Worth Meacham Intl Approach118.100
Fort Worth Meacham Intl Departure118.100

Approach frequencies

ILS-cat-IRW16109.918.00mi
ILS-cat-IRW34109.918.00mi
3° GSRW16109.918.00mi
3° GSRW34109.918.00mi
Nearby Points of Interest:
Henderson Street Bridge
-
Paddock Viaduct
-
Heritage Park Plaza
-
Tarrant County Courthouse
-
William J. Bryce House
-
Cotton Belt Railroad Industrial Historic District
-
Butler Place Historic District
-
Eighth Avenue Historic District
-
Burk Burnett Building
-
Stephen F. Austin Elementary School
-
Thomas Shiels House
-
Grand Avenue Historic District
-
Elizabeth Boulevard Historic District
-
Leuda-May Historic District
-
Ridglea Theatre
-
Central Handley Historic District
-
Fort Worth
-
Knights of Pythias Building
-
First National Bank Building
-
F. W. Woolworth Building
-
Fort Worth Elks Lodge 124
-
Kress Building
-
Markeen Apartments
-
Electric Building

Runway info

Runway 16 / 34
 length2293m (7523ft)
 bearing170° / 350°
 width46m (150ft)
 surfaceconcrete
 blast zone91m (299ft) / 61m (200ft)
Runway 17 / 35
 length1225m (4019ft)
 bearing170° / 350°
 width23m (75ft)
 surfaceasphalt
 blast zone61m (200ft) / 61m (200ft)

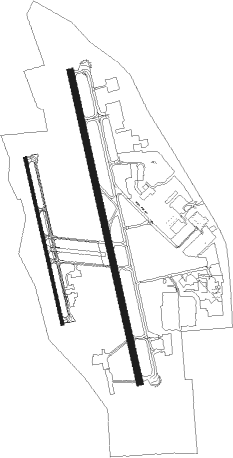

Airport layout


Taxiway locations

 A  A1  A2  A3  A6  B  B1  C
 D  E  H  J  M  N  S  W
Parking locations

 American  Am_Aero_1  Baker  Broadies  DQA_1  DQA_2  DQA_3  DQA_4
 DQA_5  DQA_6  FBO  H7  H8  IAC_Heavy  Jet  J_Pad_Start
 L  Ramp  Richardson  Texas  Tower  W_Pad

Nearby beacons

codeidentifierdistbearingfrequency
FTMUFIN (FORT WORTH) NDB4.6353°365
NFWNAS JRB FORT WORTH (FT WO TACAN4.6240°108.70
FUZRANGER (DALLAS-FORT WORTH VORTAC10.368°115.70
TTTMAVERICK VOR/DME16.681°113.10
CVECOWBOY (DALLAS) VOR/DME23.681°116.20
DTPINCK (DENTON) NDB29.320°257
MQPMILLSAP (MINERAL WELLS) VORTAC32.4262°117.70
PQFMESQUITE NDB42.190°248
JENGLEN ROSE TACAN47.2218°115
UKWBOWIE VORTAC49328°117.15
CGQPOWELL (CORSICANA) NDB65.5129°344
CRSCORSICANA NDB68.1129°396

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
ALL
 TEX196mi13°
 DALL8171mi78°
 KUSSO8200mi99°
 GARL1103mi103°
 JPOOL378mi168°
 SWABR8101mi262°
 WORTH7292mi287°

STAR starting pointsdistanceinbound heading
ALL
 LIKES327.746°
 MOTZA1, WESAT232.8141°
 SASIE6, TRUUK254.2230°
 DODJE6, REEKO350.7304°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16UKW (148°)UKW
FOXEB (36mi, 148°) 3000ft
WOROD (5mi, 83°) 3000ft
RW16WOROD (171°)WOROD 3000ft
 RNAVWOROD 3000ft
MESDE (6mi, 170°) 2500ft
KFTW (6mi, 173°) 767ft
PAXXE (11mi, 169°) 3000ft
PAXXE (turn)
RW34BARGO (356°)BARGO
PAXXE (12mi, 2°) 3000ft
RW34CURLE (10°)CURLE
PAXXE (5mi, 52°) 3000ft
RW34PAXXE (349°)PAXXE 3000ft
 RNAVPAXXE 3000ft
DOJED (6mi, 350°) 2200ft
WAGMU (2mi, 350°) 1560ft
KFTW (3mi, 346°) 734ft
(5777mi, 109°) 880ft
WOROD (5777mi, 289°) 3000ft
WOROD (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DODJE6CAPTIVHFleft73 (253)°1.0min timedICAO rules
DODJE6CQYNDBleft95 (275)°< 60000ft1.0min timedICAO rules
DODJE6GGGNDBright114 (294)°< 17999ft1.0min timedICAO rules
DODJE6HERRIVHFleft101 (281)°1.0min timedICAO rules
DODJE6WEIRSVHFleft128 (308)°< 17999ft1.0min timedICAO rules
LIKES3BRRUSVHFright260 (80)°DME 10.0miICAO rules
LIKES3FOSSLVHFright205 (25)°DME 10.0miICAO rules
MOTZA1ACKMEVHFright15 (195)°1.0min timedICAO rules
MOTZA1HEATRVHFleft299 (119)°1.5min timedICAO rules
MOTZA1KAJAYVHFright283 (103)°1.5min timedICAO rules
MOTZA1MOOSEVHFleft15 (195)°1.0min timedICAO rules
MOTZA1PLEBSVHFleft283 (103)°1.0min timedICAO rules
MOTZA1SPSNDBleft348 (168)°1.0min timedICAO rules
MOTZA1TURKIVHFright266 (86)°1.5min timedICAO rules
MOTZA1UKWNDBleft283 (103)°1.0min timedICAO rules
MOTZA1ZANTOVHFleft283 (103)°1.5min timedICAO rules
REEKO3PURRSVHFleft136 (316)°DME 10.0miICAO rules
REEKO3VDUBBVHFleft83 (263)°DME 10.0miICAO rules
SASIE6BIRLEVHFright35 (215)°1.5min timedICAO rules
SASIE6BYPNDBright45 (225)°< 60000ft1.0min timedICAO rules
SASIE6GAATZVHFright35 (215)°1.0min timedICAO rules
SASIE6GLOVEVHFright64 (244)°18000ft - 45000ft1.5min timedICAO rules
SASIE6ROBEYVHFleft64 (244)°1.0min timedICAO rules
TRUUK2PRIZZVHFleft38 (218)°DME 10.0miICAO rules
WESAT2FAWNTVHFright360 (180)°DME 10.0miICAO rules
WESAT2FLOWNVHFleft285 (105)°DME 10.0miICAO rules
WESAT2GREKEVHFleft287 (107)°DME 10.0miICAO rules
WESAT2ROTTRVHFleft355 (175)°DME 10.0miICAO rules
WESAT2TURKIVHFright266 (86)°1.5min timedICAO rules
*) magnetic outbound (inbound) holding course
