Airports for X-Plane

Fort Lewis/tacoma - Gray Aaf

Airport details

CountryUnited States of America
StateWashington
RegionK1
AirspaceSeattle Ctr
MunicipalityPierce County
Elevation299ft (91m)
TimezoneGMT -8
Coordinates47.07986, -122.58222
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKGRF
IATA codeGRF
FAA codeGRF

Communication

Gray AAF ATIS124.650
Gray AAF CTAF119.325
Gray AAF Ground Control/Clearance DEL121.900
Gray AAF Tower119.325
Gray AAF SEATTLE Approach/Departure120.100

Approach frequencies

ILS-cat-IRW15108.318.00mi
3° GSRW15108.318.00mi
Nearby Points of Interest:
Lewis Army Museum
-
DuPont Village Historic District
-
Thornewood
-
Rhodesleigh
-
Nisqually River
-
Fort Steilacoom
-
Tacoma Mausoleum
-
Engine House No. 8
-
Fox Island School
-
Engine House No. 11
-
Tacoma Narrows Bridge
-
Woodard Bay Natural Resources Conservation Area
-
Engine House No. 4
-
Nihon Go Gakko
-
Union Station
-
Albers Brothers Mill
-
Luzon Building
-
North Slope
-
Pythian Temple
-
National Bank of Tacoma
-
Old City Hall Historic District
-
Engine House No. 13
-
Rhodes House
-
Stadium District
-
Fireboat Station

Runway info

Runway 15 / 33
 length1867m (6125ft)
 bearing161° / 341°
 width46m (150ft)
 surfaceasphalt
 blast zone32m (105ft) / 32m (105ft)

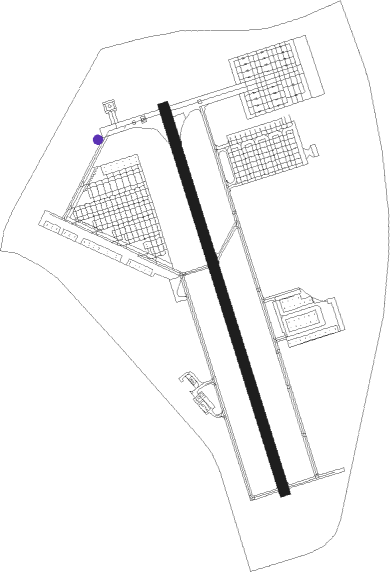

Airport layout - taxiway location H


Taxiway locations

 A  B  C  D  F  H
Parking locations

 East  Northeast  Southeast  VIP  West

Nearby beacons

codeidentifierdistbearingfrequency
TCMMC CHORD (TACOMA) TACAN5.958°109.60
OLMOLYMPIA VORTAC14.6251°113.40
SEASEATTLE VORTAC2437°116.80
PAEPAINE (EVERETT) VOR/DME51.920°110.60
AWWATON (ARLINGTON) NDB62.223°382

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW15CARRO (128°)CARRO
CIKRI (9mi, 102°) 2000ft
RW15OLM (71°)OLM
CIKRI (20mi, 44°) 2000ft
CIKRI (turn) 2000ft
RW15SEA (217°)SEA
CIKRI (17mi, 240°) 2000ft
 RNAVCIKRI 2000ft
EMOFO (6mi, 161°) 1600ft
ZAPEB (2mi, 161°) 1020ft
KGRF (3mi, 163°) 355ft
(6697mi, 111°) 701ft
CIKRI (6695mi, 291°) 2000ft
CIKRI (turn)
RW33ALDER (327°)ALDER
HUMUT (8mi, 301°) 3300ft
RW33OLM (71°)OLM
ECEKO (7mi, 132°) 4000ft
HUMUT (10mi, 82°) 3300ft
 RNAVHUMUT 3300ft
ETAHO (6mi, 0°) 1600ft
UGVIF (2mi, 341°) 980ft
KGRF (3mi, 340°) 356ft
(6697mi, 111°) 701ft
CIKRI (6695mi, 291°) 2000ft
CIKRI (turn)
