Airports for X-Plane

Greensboro - Piedmont Triad Intl

Airport details

CountryUnited States of America
StateNorth Carolina
RegionK7
AirspaceAtlanta Ctr
MunicipalityGuilford County
Elevation921ft (281m)
TimezoneGMT -5
Coordinates36.10133, -79.94112
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKGSO
IATA codeGSO
FAA codeGSO

Communication

Piedmont Triad Intl ATIS128.550
Piedmont Triad Intl UNICOM122.950
Piedmont Triad Intl Clearance DEL121.750
Piedmont Triad Intl Ground Control121.900
Piedmont Triad Intl Tower119.100
Piedmont Triad Intl Approach126.600
Piedmont Triad Intl Approach124.350
Piedmont Triad Intl Departure126.600
Piedmont Triad Intl Departure124.350

Approach frequencies

ILS-cat-IIIRW05L109.5518.00mi
ILS-cat-IIRW05R111.918.00mi
ILS-cat-IIRW23L109.318.00mi
ILS-cat-IRW32111.1518.00mi
ILS-cat-IRW23R109.5518.00mi
3° GSRW05R111.918.00mi
3° GSRW05L109.5518.00mi
3° GSRW23R109.5518.00mi
3° GSRW23L109.318.00mi
3° GSRW32111.1518.00mi

Runway info

Runway 5R / 23L
 length3053m (10016ft)
 bearing52° / 232°
 width46m (151ft)
 surfaceasphalt
 blast zone58m (190ft) / 60m (197ft)
Runway 14 / 32
 length1952m (6404ft)
 bearing129° / 309°
 width46m (151ft)
 surfaceasphalt
 blast zone0m (0ft) / 58m (190ft)
Runway 5L / 23R
 length2744m (9003ft)
 bearing52° / 232°
 width46m (151ft)
 surfaceasphalt
 blast zone122m (400ft) / 123m (404ft)

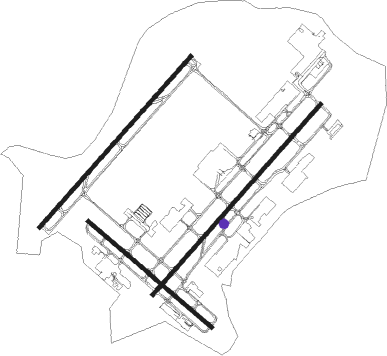

Airport layout - taxiway location M3


Taxiway locations

 05L  23R  A  A2  A3  A4  C  C1
 D  D1  D2  E  H  H1  H2  H4
 J  J1  J2  J3  J5  J6  J7  K
 K1  K2  K3  K5  K6  M  M1  M2
 M3  M4  M5  M6
Parking locations

 Air  Atlantic  Citation  FedEx  Gate  HAECO  Koury  Samaritan's
 Signature  Swift

Nearby beacons

codeidentifierdistbearingfrequency
GSOGREENSBORO VORTAC3.7212°116.20
INREENO (WINSTON SALEM) NDB11.1262°317
HBALAMM NDB18.8109°361
SIFSLAMMER (REIDSVILLE) NDB18.932°423
LIBLIBERTY VORTAC23.6131°113
UVBALES (MARTINSVILLE) NDB29.33°396
RUROVDY (SALISBURY) NDB34.6236°275
VUALLER (ALBEMARLE) NDB37.4193°346
DANDANVILLE VOR40.552°113.10
HURPERSON (ROXBORO) NDB43.181°220
SDZSANDHILLS (SOUTHERN PINES VORTAC55.9158°111.80
SBVSOUTH BOSTON VORTAC56.558°110.40
PSKPULASKI (DUBLIN) VORTAC69.9322°116.80
POBPOPE (FAYETTEVILLE) NDB71.2132°338
POBPOPE (FAYETTEVILLE) TACAN71.8135°113.80

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW05 (ALL)
 QUAK757mi58°
RW05L
 TRI950mi286°
 TRSHA148mi312°
RW05R
 TRI950mi286°
 TRSHA148mi312°
RW14
 QUAK757mi58°
 TRI950mi286°
 TRSHA148mi312°
RW23 (ALL)
 QUAK757mi58°
 TRSHA148mi312°
RW23L
 TRI950mi286°
RW23R
 TRI950mi286°
RW32
 QUAK757mi58°
 TRI950mi286°
 TRSHA148mi312°

STAR starting pointsdistanceinbound heading
ALL
 BROOK452.194°
 HENBY337.3172°
 BLOCC236.9329°
RW05L
 TRAKS319.589°
RW05R
 TRAKS319.589°
RW14
 TRAKS319.589°
RW23 (ALL)
 TRAKS319.589°
RW32
 TRAKS319.589°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05LJEVEN (54°)JEVEN 2900ft
RW05LNUMUE (30°)NUMUE 2900ft
JEVEN (5mi, 310°) 2900ft
RW05LWAKIM (75°)WAKIM 2900ft
JEVEN (5mi, 130°) 2900ft
 RNAVJEVEN 2900ft
CIVES (6mi, 52°) 2500ft
CONLO (3mi, 52°) 1600ft
KGSO (3mi, 62°) 971ft
TUPUE (13mi, 50°) 2800ft
TUPUE (turn)
RW05RCOSIS (50°)COSIS 3000ft
RW05RCUPET (71°)CUPET 3000ft
COSIS (5mi, 130°) 3000ft
RW05RFINIR (27°)FINIR 3000ft
COSIS (5mi, 310°) 3000ft
 RNAVCOSIS 3000ft
FONIT (6mi, 52°) 2800ft
KGSO (6mi, 49°) 953ft
JELEB (13mi, 53°) 3200ft
JELEB (turn)
RW14COKIM (152°)COKIM 3200ft
FAMOV (5mi, 231°) 3200ft
RW14FAMOV (127°)FAMOV 3200ft
RW14HERIP (107°)HERIP 3200ft
FAMOV (5mi, 51°) 3200ft
 RNAVFAMOV 3200ft
GUKPE (6mi, 129°) 2700ft
ZOLPO (4mi, 129°) 1520ft
KGSO (2mi, 117°) 984ft
IRKUW (12mi, 131°) 3700ft
IRKUW (turn)
RW23LGICES (252°)GICES 3200ft
JELEB (5mi, 310°) 3200ft
RW23LJELEB (233°)JELEB 3200ft
RW23LJUTSO (212°)JUTSO 3200ft
JELEB (5mi, 130°) 3200ft
 RNAVJELEB 3200ft
NERLE (6mi, 232°) 2900ft
KGSO (7mi, 234°) 938ft
COSIS (12mi, 230°) 3000ft
COSIS (turn)
RW23RCOLKI (250°)COLKI 3100ft
TUPUE (5mi, 310°) 2800ft
RW23RHEROR (207°)HEROR 3100ft
TUPUE (5mi, 130°) 2800ft
RW23RTUPUE (230°)TUPUE 2800ft
 RNAVTUPUE 2800ft
HEVED (6mi, 232°) 2800ft
KGSO (7mi, 228°) 910ft
JEVEN (12mi, 234°) 2500ft
JEVEN (turn)
RW32IRKUW (311°)IRKUW 3700ft
RW32PUXEE (281°)PUXEE 3700ft
IRKUW (8mi, 231°) 3700ft
RW32ZIGDI (347°)ZIGDI 3700ft
IRKUW (8mi, 51°) 3700ft
 RNAVIRKUW 3700ft
OKZIF (6mi, 309°) 2700ft
KGSO (6mi, 314°) 952ft
(4918mi, 114°) 1100ft
FAMOV (4927mi, 294°) 3700ft
FAMOV (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BLOCC2BLOCCVHFright180 (0)°DME 5.0miICAO rules
BROOK4BROOKVHFleft282 (102)°DME 4.0miICAO rules
BROOK4TRAKSVHFleft282 (102)°1.0min timedICAO rules
HENBY3HENBYVHFleft1 (181)°DME 11.0miICAO rules
*) magnetic outbound (inbound) holding course
