Gary - Gary Chicago Intl

Airport details

CountryUnited States of America
StateIndiana
RegionK5
AirspaceChicago Ctr
MunicipalityGary
Elevation587ft (179m)
TimezoneGMT -6
Coordinates41.61725, -87.41453
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKGYY
IATA codeGYY
FAA codeGYY

Communication

Gary Chicago Intl ATIS134.575
Gary Chicago Intl CTAF125.600
Gary Chicago Intl Ground Control121.900
Gary Chicago Intl Tower125.600
Gary Chicago Intl CHICAGO Approach/Departure133.100

Approach frequencies

ILS-cat-IRW30108.7518.00mi
3° GSRW30108.7518.00mi
Nearby Points of Interest:
Combs Addition Historic District
-
Indiana Harbor Public Library
-
Eskilson Historic District
-
Lincoln Street Historic District
-
Wilbur Wynant House
-
Polk Street Terraces Historic District
-
Polk Street Concrete Cottage Historic District
-
American Sheet and Tin Mill Apartment Building
-
Monroe Terrace Historic District
-
Jackson-Monroe Terraces Historic District
-
Knights of Columbus Building
-
Morse Dell Plain House and Garden
-
Union Station
-
Louis J. Bailey Branch Library
-
Emerson School for Visual and Performing Arts
-
State Bank of Hammond Building
-
State Street Commercial Historic District
-
Ibach House
-
Hohman Avenue Commercial Historic District
-
Northern States Life Insurance Company
-
Jefferson Street Historic District
-
Stallbohm Barn-Kaske House
-
Whiting Memorial Community House
-
Roselawn-Forest Heights Historic District
-
George John Wolf House

Runway info

Runway 12 / 30
 length2697m (8848ft)
 bearing117° / 297°
 width46m (150ft)
 surfaceasphalt
 displ threshold0m (0ft) / 274m (899ft)
 blast zone61m (200ft) / 61m (200ft)
Runway 2 / 20
 length1100m (3609ft)
 bearing27° / 207°
 width30m (100ft)
 surfaceasphalt

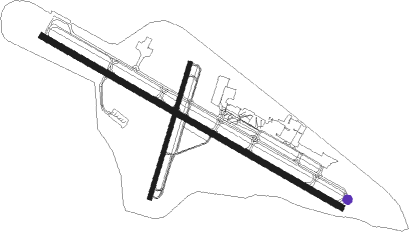

Airport layout - taxiway location A8


Taxiway locations

 A  A1  A2  A4  A5  A6  A7  A8
 B  B2  B3  C  E  F
Parking locations

 B.  Boeing  GA1  GA2  Gary  Indiana

Nearby beacons

codeidentifierdistbearingfrequency
GYGARIE (GARY) NDB4.7117°236
CGTCHICAGO HEIGHTS VORTAC9.5236°114.20
MXKEDZI (CHICAGO) NDB14.4294°248
VPSEDLY (VALPARAISO) NDB26.1107°212
EONPEOTONE VORTAC26.8227°113.20
GCODME31.4308°108.25
IKKDME38219°111.60
OXIKNOX VOR/DME38.7111°115.60
JOTJOLIET VOR/DME40.8266°112.30
IKLUKOW (KANKAKEE) NDB42.2219°272
OBKNORTHBROOK VOR/DME43.5318°113
DPADUPAGE (CHICAGO) VOR/DME45286°108.40
UGWAUKE (CHICAGO/WAUKEGAN) NDB53.6335°379
ENWDME63.3332°109.20

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW02
 DARCY6149mi167°
 ELANR699mi170°
 CARYN681mi199°
 BLOKR671mi216°
 ADELL697mi224°
RW12
 DARCY6149mi167°
 ELANR699mi170°
 CARYN681mi199°
 BLOKR671mi216°
 ADELL697mi224°
RW20
 DARCY6149mi167°
 ELANR699mi170°
 CARYN681mi199°
 BLOKR671mi216°
 ADELL697mi224°
RW30
 DARCY6149mi167°
 ELANR699mi170°
 CARYN681mi199°
 BLOKR671mi216°
 ADELL697mi224°

STAR starting pointsdistanceinbound heading
ALL
 LUCIT223.11°
 MOTIF654.170°
 GSH762.5274°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02ERACK (348°)ERACK
KILPY (8mi, 286°) 2800ft
RW02KILPY (28°)KILPY 2800ft
RW02TREYY (59°)TREYY
KILPY (8mi, 106°) 2800ft
 RNAVKILPY 2800ft
CORPI (8mi, 27°) 2300ft
DEASH (3mi, 27°) 1280ft
KGYY (2mi, 29°) 649ft
(5289mi, 115°) 2000ft
KILPY (5294mi, 295°) 2800ft
KILPY (turn)
RW12-YEVEPY (117°)EVEPY 2200ft
RW12-YHTDOG (331°)HTDOG 4000ft
JEDIM (24mi, 297°) 4000ft
EVEPY (8mi, 42°) 2200ft
RW12-YZANIN (151°)ZANIN
EVEPY (8mi, 222°) 2200ft
 RNAVEVEPY 2200ft
GAGME (7mi, 117°) 2200ft
CUSUB (3mi, 117°) 1400ft
KGYY (3mi, 117°) 647ft
(5289mi, 115°) 797ft
KIKVE (5279mi, 295°) 2400ft
KIKVE (turn)
RW12-ZFEBAG (265°)FEBAG
NOOOO (10mi, 292°) 2300ft
KCHUP (3mi, 292°) 2300ft
BBRAD (5mi, 264°) 2000ft
TRAYC (2mi, 234°) 2000ft
PADKE (4mi, 173°) 1800ft
RW12-ZHTDOG (331°)HTDOG 4000ft
MSTRD (12mi, 300°) 4000ft
RELSH (3mi, 300°) 3000ft
ONYIN (5mi, 350°) 2000ft
TMATO (turn) 2000ft
PADKE (4mi, 83°) 1800ft
RW12-ZKEGLE (178°)KEGLE
TRAYC (5mi, 234°) 2000ft
PADKE (4mi, 173°) 1800ft
RW12-ZPCKLE (83°)PCKLE
TMATO (4mi, 45°) 2000ft
PADKE (4mi, 83°) 1800ft
 RNAVPADKE 1800ft
KGYY (4mi, 117°) 657ft
(5289mi, 115°) 913ft
KIKVE (5279mi, 295°) 2400ft
KIKVE (turn)
RW20HALIE (292°)HALIE
ZOGEB (14mi, 343°) 2400ft
UCJUC (5mi, 286°) 2200ft
RW20NILES (134°)NILES
QEBLO (7mi, 79°) 3000ft
UCJUC (5mi, 106°) 2200ft
RW20UCJUC (207°)UCJUC 2200ft
 RNAVUCJUC 2200ft
YUPHU (5mi, 207°) 2200ft
KGYY (5mi, 207°) 639ft
(5289mi, 115°) 1500ft
HALIE (5277mi, 295°) 2400ft
HALIE (turn)
RW30-YBOONE (319°)BOONE
KIKVE (8mi, 0°) 2400ft
RW30-YCGT (56°)CGT
KIKVE (17mi, 91°) 2400ft
KIKVE (turn) 2400ft
RW30-YHTDOG (331°)HTDOG 4000ft
KIKVE (8mi, 42°) 2400ft
RW30-YSTYLE (256°)STYLE
KIKVE (24mi, 235°) 2400ft
 RNAVKIKVE 2400ft
WASTU (7mi, 297°) 2000ft
HROLD (3mi, 297°) 1120ft
KGYY (2mi, 296°) 646ft
(5289mi, 115°) 1100ft
KIKVE (5279mi, 295°) 2400ft
KIKVE (turn)
RW30-ZFEBAG (265°)FEBAG
EBGIN (10mi, 222°) 2300ft
RW30-ZHTDOG (331°)HTDOG 4000ft
EBGIN (8mi, 33°) 2300ft
 RNAVEBGIN 2300ft
WASTU (6mi, 297°) 2000ft
KGYY (5mi, 297°) 646ft
HOSEN (turn)
DANGE (6mi, 340°)
KEGLE (4mi, 33°) 2100ft
KEGLE (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
GSH7GSHNDBleft92 (272)°1.0min timedICAO rules
GSH7HALIEVHFleft87 (267)°1.0min timedICAO rules
GSH7IROCKVHFright87 (267)°1.0min timedICAO rules
MOTIF6BDFNDBright247 (67)°18000ft - 45000ft1.5min timedICAO rules
MOTIF6CVANDBright305 (125)°1.0min timedICAO rules
MOTIF6IRKNDBleft248 (68)°18000ft - 45000ft1.5min timedICAO rules
MOTIF6MAGOOVHFright219 (39)°1.5min timedICAO rules
MOTIF6MINOKVHFright202 (22)°< 17999ft1.0min timedICAO rules
MOTIF6MOTIFVHFright202 (22)°< 17999ft1.0min timedICAO rules
MOTIF6PIANDBright253 (73)°1.0min timedICAO rules
MOTIF6PNTNDBleft214 (34)°18000ft - 45000ft1.5min timedICAO rules
*) magnetic outbound (inbound) holding course
