Airports for X-Plane

Hawthorne - Northrop Field/ Hawthorne Muni

Airport details

CountryUnited States of America
StateCalifornia
RegionK2
AirspaceLos Angeles Ctr
MunicipalityHawthorne
Elevation62ft (19m)
TimezoneGMT -8
Coordinates33.92347, -118.33588
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKHHR
IATA codeHHR
FAA codeHHR

Communication

Northrop Field/ Hawthorne Muni ATIS118.400
Northrop Field/ Hawthorne Muni CTAF121.100
Northrop Field/ Hawthorne Muni Ground Control125.100
Northrop Field/ Hawthorne Muni Tower121.100
Northrop Field/ Hawthorne Muni SOCAL Approach128.500
Northrop Field/ Hawthorne Muni SOCAL Approach124.300
Northrop Field/ Hawthorne Muni SOCAL Approach124.900
Northrop Field/ Hawthorne Muni SOCAL Approach125.200
Northrop Field/ Hawthorne Muni SOCAL Departure124.300

Approach frequencies

LOCRW25109.118.00mi

Runway info

Runway 7 / 25
 length1489m (4885ft)
 bearing87° / 267°
 width30m (100ft)
 surfaceasphalt
 displ threshold276m (906ft) / 142m (466ft)
 blast zone23m (75ft) / 23m (75ft)

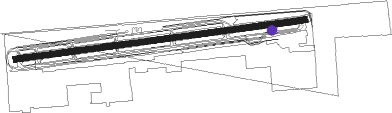

Airport layout - taxiway location B


Taxiway locations

 A  B  C  D  E  F  G  H
 N
Parking locations

 NW  SE  SW

Nearby beacons

codeidentifierdistbearingfrequency
LAXLOS ANGELES VORTAC4.8276°113.60
SMOSANTA MONICA VOR/DME7.9306°110.80
SLISEAL BEACH (LOS ALAMITOS) VORTAC16.3117°115.70
VNYVAN NUYS VOR/DME19.6333°113.10
POMPOMONA VORTAC28.874°110.40
SXCSANTA CATALINA VORTAC33.2189°111.40
ELBEL TORO (SANTA ANA) VOR/DME33.6112°117.20
VTUVENTURA (OXNARD) VOR/DME37.3285°108.20
FIMFILLMORE VORTAC37.5308°112.50
PDZPARADISE (ONTARIO) VORTAC40.190°112.20
NTDPOINT MUGU (OXNARD) TACAN40.9284°110.60
CMACAMARILLO VOR/DME41.5291°115.80
RALRIVERSIDE VOR44.188°112.40
PMDPALMDALE VORTAC44.621°114.50
LHSLAKE HUGHES VORTAC47.1342°114.35
SBPETIS (SAN BERNARDINO) NDB48.982°397
NUCSAN CLEMENTE TACAN55.2195°117.60
GMNGORMAN VORTAC58.9329°116.10
NFGCAMP PENDLETON (OCEANSIDE TACAN61.4124°111.80
OCNOCEANSIDE VORTAC61.5127°115.30
VCVVICTORVILLE VOR/DME61.855°109.05

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
STAR starting pointsdistanceinbound heading
ALL
 RYDRR239.4110°
 IRNMN234.1121°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW25PDZ (270°)PDZ
CAKUT (8mi, 283°) 3900ft
POWUP (8mi, 268°) 3400ft
WELLZ (11mi, 267°) 2700ft
RW25SLI (297°)SLI
WELLZ (9mi, 354°) 2700ft
 RNAVWELLZ 2700ft
HASHY (6mi, 267°) 1500ft
ZANIR (2mi, 267°) 1500ft
KHHR (5mi, 268°) 118ft
(6798mi, 106°) 800ft
LIMBO (6806mi, 286°) 3000ft
LIMBO (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
IRNMN2BAYSTVHFleft283 (103)°DME 10.0miICAO rules
IRNMN2GRIPRVHFleft312 (132)°DME 10.0miICAO rules
RYDRR2BAYSTVHFleft283 (103)°DME 10.0miICAO rules
RYDRR2EESSAVHFleft226 (46)°DME 16.0miICAO rules
RYDRR2HUULLVHFleft255 (75)°DME 16.0miICAO rules
RYDRR2RYDRRVHFleft259 (79)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
