Airports for X-Plane

Hayward - Hayward Executive

Airport details

CountryUnited States of America
StateCalifornia
RegionK2
AirspaceOakland Ctr
MunicipalityHayward
Elevation50ft (15m)
TimezoneGMT -8
Coordinates37.65732, -122.12232
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKHWD
IATA codeHWD
FAA codeHWD

Communication

Hayward Executive ATIS126.700
Hayward Executive UNICOM122.950
Hayward Executive CTAF120.200
Hayward Executive Clearance DEL128.050
Hayward Executive Ground Control121.400
Hayward Executive Tower120.200
Hayward Executive NORCAL Approach/Departure124.400
Hayward Executive NORCAL Approach125.350
Hayward Executive NORCAL Approach134.500

Approach frequencies

LOCRW28L111.518.00mi

Runway info

Runway 10R / 28L
 length1734m (5689ft)
 bearing115° / 295°
 width46m (151ft)
 surfaceasphalt
 displ threshold249m (817ft) / 206m (676ft)
Runway 10L / 28R
 length946m (3104ft)
 bearing115° / 295°
 width23m (75ft)
 surfaceasphalt

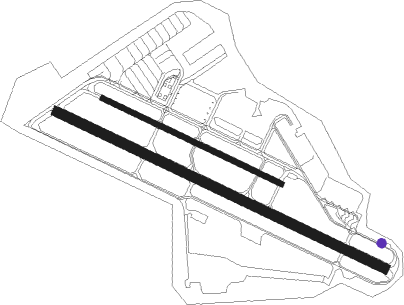

Airport layout - taxiway location A1


Taxiway locations

 A  A1  B  C  D  E  F  Z
 Z1
Parking locations

 Commuter  East  Helicopter  Midfield  Transient  West

Nearby beacons

codeidentifierdistbearingfrequency
OAKOAKLAND VOR/DME6.3304°116.80
SFOSAN FRANCISCO VOR/DME12.1261°115.80
NUQMOFFETT (MOUNTAIN VIEW) TACAN13.8164°117.60
OSIWOODSIDE VOR/DME17.6211°113.90
SJCSAN JOSE VOR/DME18.9148°114.10
LVREIGA (LIVERMORE) NDB20.985°374
SAUSAUSALITO VOR/DME22.4296°116.20
CCRCONCORD VOR/DME23.511°117
SGDSCAGGS ISLAND (NAPA) VORTAC33.5334°112.10
SUUTRAVIS (FAIRFIELD) TACAN36.317°116.60
PYEPOINT REYES VOR/DME43.5300°113.70
SACSACRAMENTO VORTAC54.336°115.20
STSROSA DME60.5321°116.15
SNSSALINAS VORTAC64.6152°117.30

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
STAR starting pointsdistanceinbound heading
ALL
 SHARR141.0261°
 PXN685.6305°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW28LSJC (328°)SJC
JOBUS (11mi, 53°) 5700ft
JOBUS (turn) 5700ft
RW28LSUNOL (279°)SUNOL
JOBUS (6mi, 163°) 5700ft
JOBUS (turn) 5700ft
RW28LVINCO (305°)VINCO
JOBUS (8mi, 333°) 5700ft
 RNAVJOBUS 5700ft
OKIVY (3mi, 295°) 4800ft
WESCH (3mi, 295°) 3900ft
SUDGE (3mi, 295°) 3200ft
FENRA (3mi, 295°) 2120ft
BOGRE (2mi, 295°) 1360ft
HUZBY (turn) 1000ft
KHWD (3mi, 293°) 85ft
(6900mi, 107°) 600ft
OAK (6903mi, 287°) 2100ft
OAK (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
SHARR1LOCKEVHFright52 (232)°DME 7.0miICAO rules
SHARR1WRAPSVHFright72 (252)°DME 11.0miICAO rules
*) magnetic outbound (inbound) holding course
