Airports for X-Plane

Hayward - Sawyer Co

Airport details

CountryUnited States of America
StateWisconsin
RegionK5
AirspaceMinneapolis Ctr
MunicipalityTown of Hayward
Elevation1214ft (370m)
TimezoneGMT -6
Coordinates46.02527, -91.44427
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKHYR
IATA codeHYR
FAA codeHYR

Communication

SAWYER CO CTAF/UNICOM122.800
SAWYER CO MINNEAPOLIS CNTR126.450

Approach frequencies

ILS-cat-IRW21108.518.00mi
3° GSRW21108.518.00mi
Nearby Points of Interest:
North Wisconsin Lumber Company Office
-
Forest Lodge Library
-
Mrs. Richard Polson House
-
George V. Siegner House

Runway info

Runway 3 / 21
 length1526m (5007ft)
 bearing34° / 214°
 width30m (100ft)
 surfaceasphalt
Runway 16 / 34
 length333m (1093ft)
 bearing156° / 336°
 width37m (120ft)
 surfacegrass
 blast zone8m (26ft) / 14m (46ft)

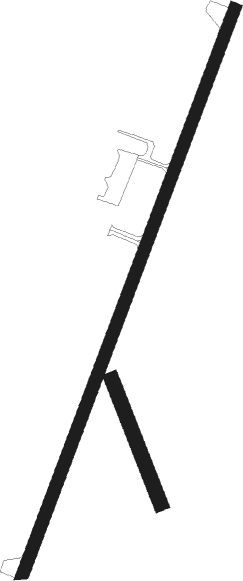

Airport layout


Nearby beacons

codeidentifierdistbearingfrequency
HYRDME0.3199°113.40
RCXRUSK COUNTY (LADYSMITH) NDB36.5140°356
BXRBIG DOCTOR (SIREN) NDB40.4258°203
RZNDME40.7258°109.40
RPWICKR (RICE LAKE) NDB45207°221
DLHDULUTH VORTAC56.2316°112.60
LKILAKESIDE (DULUTH) TACAN57.9318°135.40
DLPYKLA (DULUTH) NDB62312°379

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03ALEEN (66°)ALEEN
SAPNY (27mi, 69°) 3100ft
RIGET (5mi, 108°) 3100ft
RW03ENTAF (21°)ENTAF
RIGET (26mi, 15°) 3100ft
RW03RIGET (34°)RIGET 3100ft
 RNAVRIGET 3100ft
PECRO (6mi, 33°) 3000ft
KHYR (6mi, 34°) 1249ft
(5465mi, 117°) 1514ft
DAIVE (5460mi, 297°) 3300ft
DAIVE (turn)
RW21DAIVE (214°)DAIVE 3300ft
RW21LAMPY (84°)LAMPY
JUDAQ (24mi, 57°) 3300ft
DAIVE (6mi, 108°) 3300ft
RW21RUSSH (281°)RUSSH
OGTOW (27mi, 299°) 3300ft
DAIVE (6mi, 288°) 3300ft
 RNAVDAIVE 3300ft
OBBEY (6mi, 214°) 3000ft
POVYI (3mi, 214°) 2020ft
KHYR (3mi, 213°) 1258ft
(5465mi, 117°) 1518ft
RIGET (5471mi, 297°) 3100ft
RIGET (turn)
