Airports for X-Plane

Jacksonville - Jacksonville Intl

Airport details

CountryUnited States of America
StateFlorida
RegionK7
AirspaceJacksonville Ctr
MunicipalityJacksonville
Elevation28ft (9m)
TimezoneGMT -5
Coordinates30.49405, -81.68784
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKJAX
IATA codeJAX
FAA codeJAX

Communication

Jacksonville Intl ATIS125.850
Jacksonville Intl CTAF122.950
Jacksonville Intl Clearance Delivery119.500
Jacksonville Intl Ground Control121.900
Jacksonville Intl Tower118.300
Jacksonville Intl Approach119.000
Jacksonville Intl Approach127.000
Jacksonville Intl Departure124.900
Jacksonville Intl Departure119.000
Jacksonville Intl Departure127.000

Approach frequencies

ILS-cat-IIIRW08110.718.00mi
ILS-cat-IRW14110.518.00mi
ILS-cat-IRW26110.318.00mi
3° GSRW14110.518.00mi
3° GSRW08110.718.00mi
3° GSRW26110.318.00mi
Nearby Points of Interest:
Lewis Mausoleum
-
J. P. Small Memorial Stadium
-
Henry John Klutho House
-
Brewster Hospital
-
Theatre Jacksonville
-
Masonic Temple
-
Thomas V. Porter House
-
310 West Church Street Apartments
-
Florida Baptist Building
-
St. James Building
-
Jacksonville-Baldwin Rail Trail
-
Prime F. Osborn III Convention Center
-
W. A. Knight Building
-
The Carling
-
Elks Club Building
-
Schultz Building
-
El Modelo Block
-
Buckman and Ulmer Building
-
South Atlantic Investment Corporation Building
-
Morocco Temple
-
Mount Olive Missionary Baptist Church
-
Jacksonville Public Library
-
11 East Forsyth
-
Mount Zion AME Church
-
Hutchinson-Suddath Building

Runway info

Runway 8 / 26
 length3045m (9990ft)
 bearing73° / 253°
 width46m (151ft)
 surfaceconcrete
 blast zone123m (404ft) / 122m (400ft)
Runway 14 / 32
 length2348m (7703ft)
 bearing127° / 307°
 width46m (151ft)
 surfaceconcrete
 blast zone61m (200ft) / 61m (200ft)

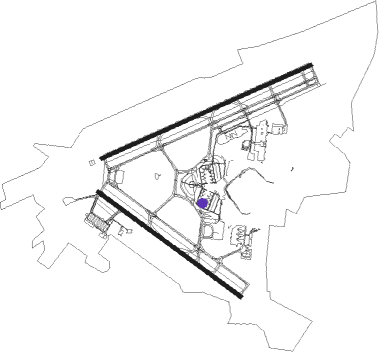

Airport layout - taxiway location C10


Taxiway locations

 A  A1  A10  A2  A3  A4  A5  A6
 A7  A8  A9  B  C  C1  C10  C2
 C3  C4  C5  C6  C7  C8  C9  E
 F  G  G1  H  J  L  N  P
 Q  R  T  U  V
Parking locations

 AvMax  Cargo  City  FL  Gate  Ramp  SheltAir  Signature
 UPS

Nearby beacons

codeidentifierdistbearingfrequency
JADINNS (JACKSONVILLE) NDB6.1256°344
CRGCRAIG (JACKSONVILLE) VORTAC13.1131°114.50
NRBMAYPORT TACAN15.1112°111.40
NIPJACKSONVILLE TACAN15.5177°108.20
NZCCECIL TACAN18.9214°114.10
RYDREYNOLDS (GREEN COVE SPRINGS) NDB31.6177°338
SSIBRUNSWICK (ST SIMONS I) VORTAC35.623°109.80
SGJSAINT AUGUSTINE VOR/DME37.2146°109.40
TAYTAYLOR VORTAC44.7271°112.90
LCQLAKE CITY NDB49.7251°204
GNWYNDS (GAINESVILLE) NDB55.5210°269
GNVGATORS VORTAC56.9216°116.20
AYWIKET (WAYCROSS) NDB61.9320°219
AYSWAYCROSS VORTAC64.5312°110.20

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
ALL
 SAWGY278mi154°
RW08
 CROSB295mi17°
 JAX724mi131°
 EXBOX278mi154°
 JETIN265mi216°
 ARNEY282mi333°
RW14
 CROSB295mi17°
 JAX724mi131°
 EXBOX278mi154°
 JETIN265mi216°
 ARNEY282mi333°
RW26
 CROSB295mi17°
 JAX724mi131°
 EXBOX278mi154°
 JETIN265mi216°
 ARNEY282mi333°
RW32
 CROSB295mi17°
 JAX724mi131°
 EXBOX278mi154°
 JETIN265mi216°
 ARNEY282mi333°

STAR starting pointsdistanceinbound heading
ALL
 AMG275.5142°
 HOTAR136.2242°
 POGIE2118.6350°
RW08
 TEBOW131.244°
 MARQO234.492°
 OHDEA132.8131°
 LUNNI128.8225°
 QUBEN133.5358°
RW14
 TEBOW131.244°
 MARQO234.492°
 OHDEA132.8131°
 LUNNI128.8225°
 QUBEN133.5358°
RW26
 TEBOW131.244°
 MARQO234.492°
 OHDEA132.8131°
 LUNNI128.8225°
 QUBEN133.5358°
RW32
 TEBOW131.244°
 MARQO234.492°
 OHDEA132.8131°
 LUNNI128.8225°
 QUBEN133.5358°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW08-YCEDOT (105°)CEDOT 3000ft
QIQGU (4mi, 135°) 1900ft
GRRDN (3mi, 103°) 1100ft
RW08-YFAROT (62°)FAROT 3000ft
LETRE (4mi, 36°) 1800ft
GRRDN (3mi, 73°) 1100ft
RW08-YGUTTY (85°)GUTTY 3000ft
LETRE (4mi, 102°) 1800ft
GRRDN (3mi, 73°) 1100ft
RW08-YLIBBY (74°)LIBBY 3000ft
LETRE (4mi, 73°) 1800ft
GRRDN (3mi, 73°) 1100ft
RW08-YPENSE (150°)PENSE 4000ft
AFXEW (5mi, 216°) 2800ft
QIQGU (3mi, 175°) 1900ft
GRRDN (3mi, 103°) 1100ft
RW08-YWADOR (32°)WADOR 3000ft
AMXUQ (4mi, 338°) 2200ft
GRRDN (3mi, 29°) 1100ft
 RNAVGRRDN 1100ft
KJAX (4mi, 77°) 80ft
YEJWO (13mi, 72°) 2000ft
YEJWO (turn)
RW08-ZIJAYU (53°)IJAYU
UDAQI (6mi, 338°) 2000ft
RW08-ZUDAQI (74°)UDAQI 2000ft
RW08-ZZOLUV (94°)ZOLUV
UDAQI (6mi, 158°) 2000ft
 RNAVUDAQI 2000ft
IVTEF (7mi, 73°) 1900ft
KJAX (6mi, 76°) 80ft
(4975mi, 110°) 229ft
YEJWO (4964mi, 291°) 2000ft
YEJWO (turn)
RW14-YDEDDA (169°)DEDDA 3000ft
PENSE (3mi, 224°) 2100ft
NARDE (5mi, 175°) 1100ft
RW14-YDIPDE (104°)DIPDE 3000ft
JOVFE (5mi, 93°) 1500ft
NARDE (1mi, 109°) 1100ft
RW14-YEYLND (58°)EYLND 4000ft
KRISO (4mi, 336°) 2900ft
AHMIV (2mi, 4°) 2300ft
JOVFE (2mi, 64°) 1500ft
NARDE (1mi, 109°) 1100ft
RW14-YKAYEM (70°)KAYEM 4000ft
AHMIV (6mi, 32°) 2300ft
JOVFE (2mi, 64°) 1500ft
NARDE (1mi, 109°) 1100ft
RW14-YORTAR (124°)ORTAR 3000ft
AMLIA (5mi, 126°) 1800ft
NARDE (3mi, 126°) 1100ft
 RNAVNARDE 1100ft
KJAX (4mi, 119°) 81ft
(4975mi, 110°) 500ft
YEJWO (4964mi, 291°) 2000ft
YEJWO (turn)
RW14-ZJIXOL (149°)JIXOL 2700ft
OSBAJ (6mi, 225°) 2000ft
RW14-ZOSBAJ (124°)OSBAJ 2000ft
RW14-ZZUDLI (102°)ZUDLI 2100ft
OSBAJ (6mi, 45°) 2000ft
 RNAVOSBAJ 2000ft
WOLQU (7mi, 126°) 1700ft
KJAX (6mi, 121°) 81ft
(4975mi, 110°) 500ft
YEJWO (4964mi, 291°) 2000ft
YEJWO (turn)
RW26-YEGAGE (174°)EGAGE 4000ft
ADUYA (3mi, 73°) 3100ft
DABBI (2mi, 96°) 2600ft
XIVXU (3mi, 168°) 1500ft
JAAGS (1mi, 237°) 1100ft
RW26-YGUTNE (313°)GUTNE 4000ft
ZALAM (4mi, 30°) 2700ft
JAAGS (4mi, 314°) 1100ft
RW26-YLAYON (235°)LAYON 3000ft
XIVXU (5mi, 219°) 1500ft
JAAGS (1mi, 237°) 1100ft
RW26-YNANAA (189°)NANAA 4000ft
DABBI (4mi, 120°) 2600ft
XIVXU (3mi, 168°) 1500ft
JAAGS (1mi, 237°) 1100ft
RW26-YYEJWO (252°)YEJWO 3000ft
DEYER (5mi, 253°) 1800ft
JAAGS (3mi, 253°) 1100ft
 RNAVJAAGS 1100ft
KJAX (4mi, 249°) 75ft
UDAQI (13mi, 254°) 2000ft
UDAQI (turn)
RW26-ZCUSIB (273°)CUSIB 2100ft
YEJWO (6mi, 338°) 2000ft
RW26-ZYEJWO (252°)YEJWO 2000ft
RW26-ZZIXIL (230°)ZIXIL 2700ft
YEJWO (6mi, 158°) 2000ft
 RNAVYEJWO 2000ft
WOQTA (7mi, 253°) 1600ft
ZALDU (3mi, 253°) 740ft
KJAX (3mi, 248°) 75ft
(4975mi, 110°) 226ft
UDAQI (4987mi, 290°) 2000ft
UDAQI (turn)
RW32-YACENE (239°)ACENE 4000ft
CALIM (3mi, 127°) 3300ft
AZYUJ (2mi, 156°) 2600ft
ONYUJ (3mi, 229°) 1700ft
FOSOL (2mi, 284°) 1100ft
RW32-YGURDE (346°)GURDE 3000ft
AXXEG (4mi, 24°) 1900ft
FOSOL (3mi, 344°) 1100ft
RW32-YPOTME (309°)POTME 3000ft
WOMVO (6mi, 307°) 1700ft
FOSOL (3mi, 307°) 1100ft
RW32-YZAXIT (251°)ZAXIT 4000ft
AZYUJ (5mi, 189°) 2600ft
ONYUJ (3mi, 229°) 1700ft
FOSOL (2mi, 284°) 1100ft
 RNAVFOSOL 1100ft
KJAX (4mi, 314°) 74ft
OSBAJ (12mi, 304°) 2000ft
OSBAJ (turn)
RW32-ZBUNDE (326°)BUNDE
POTME (18mi, 340°) 2100ft
 RNAVPOTME 2100ft
FIVOX (7mi, 307°) 1700ft
YUSKU (3mi, 307°) 740ft
KJAX (3mi, 317°) 74ft
(4975mi, 110°) 336ft
OSBAJ (4986mi, 291°) 2000ft
OSBAJ (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
MARQO2CAMJOVHFright278 (98)°DME 10.0miICAO rules
POGIE2SHINRVHFright175 (355)°DME 8.0miICAO rules
QUBEN1SHINRVHFright175 (355)°DME 8.0miICAO rules
*) magnetic outbound (inbound) holding course
