Airports for X-Plane

Las Vegas - Mccarran Intl

Airport details

CountryUnited States of America
StateNevada
RegionK2
AirspaceLos Angeles Ctr
MunicipalityParadise
Elevation2181ft (665m)
TimezoneGMT -8
Coordinates36.08863, -115.16811
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKLAS
IATA codeLAS
FAA codeLAS

Communication

McCarran Intl ATIS132.400
McCarran Intl UNICOM122.950
McCarran Intl LAS VEGAS CLEARANCE DELIVERY118.000
McCarran Intl LAS VEGAS GROUND121.100
McCarran Intl LAS VEGAS GROUND121.900
McCarran Intl LAS VEGAS TOWER118.750
McCarran Intl LAS VEGAS TOWER119.900
McCarran Intl LAS VEGAS ApproachROACH125.025
McCarran Intl LAS VEGAS ApproachROACH125.600
McCarran Intl LAS VEGAS DepartureARTURE125.900
McCarran Intl LAS VEGAS DepartureARTURE133.950

Approach frequencies

ILS-cat-IRW01L110.118.00mi
ILS-cat-IRW26R110.318.00mi
ILS-cat-IRW26L111.518.00mi
3.4° GSRW01L110.118.00mi
3° GSRW26R110.318.00mi
3° GSRW26L111.518.00mi

Runway info

Runway 1L / 19R
 length2982m (9783ft)
 bearing30° / 210°
 width50m (164ft)
 surfaceconcrete
 displ threshold178m (584ft) / 235m (771ft)
 blast zone125m (410ft) / 85m (279ft)
Runway 1R / 19L
 length2985m (9793ft)
 bearing30° / 210°
 width50m (164ft)
 surfaceconcrete
 displ threshold150m (492ft) / 268m (879ft)
 blast zone120m (394ft) / 125m (410ft)
Runway 8L / 26R
 length4416m (14488ft)
 bearing90° / 270°
 width50m (164ft)
 surfaceconcrete
 displ threshold649m (2129ft) / 426m (1398ft)
 blast zone183m (600ft) / 124m (407ft)
Runway 8R / 26L
 length3201m (10502ft)
 bearing90° / 270°
 width50m (164ft)
 surfaceconcrete
 blast zone119m (390ft) / 125m (410ft)

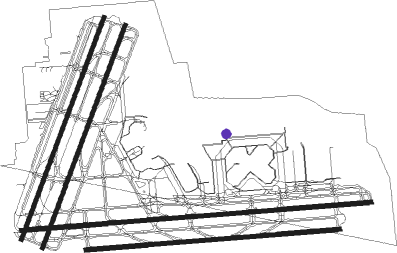

Airport layout - parking location E15


Taxiway locations

 8L  A  A2  A3  A4  A5  A6  A7
 A8  AE  B  B1  B4  B5  B6  B7
 C  C1  C2  C3  C4  C5  C6  D
 E  F  G  G1  G2  H  J  L
 M  N  P  R  S  T  U  V
 W  Y  Z
Parking locations

 A10  A11  A12  A14  A15  A17  A18  A19
 A20  A21  A22  A23  A3  A5  A7  A8
 B1  B10  B11  B12  B14  B15  B17  B19
 B2  B20  B21  B22  B23  B24  B25  B6
 C  C1  C11  C12  C14  C16  C18  C19
 C2  C21  C23  C24  C25  C3  C4  C5
 C7  C8  C9  D1  D10  D11  D12  D14
 D16  D17  D18  D19  D20  D21  D22  D23
 D24  D25  D26  D3  D31  D32  D33  D34
 D35  D36  D37  D38  D39  D4  D40  D41
 D42  D43  D5  D51  D52  D53  D54  D55
 D56  D57  D58  D59  D6  D7  D8  D9
 E1  E10  E11  E12  E14  E15  E2  E3
 E4  E5  E6  E7  E8  E9  East  Military
 New  North  NorthWest  South

Nearby beacons

codeidentifierdistbearingfrequency
LASLAS VEGAS VORTAC0.6137°116.90
LSVNELLIS (LAS VEGAS) TACAN11.643°135.50
BLDBOULDER CITY VORTAC15.8107°116.70
GOGDME19.7239°112.05
INSINDIAN SPRINGS TACAN38.4315°114
GFSGOFFS VORTAC57.5180°114.40
MMMMORMON MESA VORTAC59.353°114.30

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW01 (ALL)
 RATPK2123mi45°
 GIDGT1168mi67°
 NIITZ2176mi78°
 RASLR290mi119°
 HOOVR7, MCCRN678mi122°
 RADYR253mi218°
 LOHLA251mi298°
 JOHKR2126mi299°
RW08 (ALL)
 GIDGT1168mi67°
 HOOVR7, MCCRN678mi122°
RW08L
 RATPK2123mi45°
 NIITZ2176mi78°
 RASLR290mi119°
 RADYR253mi218°
 LOHLA251mi298°
 JOHKR2126mi299°
RW08R
 RATPK2123mi45°
 NIITZ2176mi78°
 RASLR290mi119°
 RADYR253mi218°
 LOHLA251mi298°
 JOHKR2126mi299°
RW19 (ALL)
 RATPK2123mi45°
 GIDGT1168mi67°
 NIITZ2176mi78°
 RASLR290mi119°
 HOOVR7, MCCRN678mi122°
 RADYR253mi218°
 LOHLA251mi298°
 JOHKR2126mi299°
RW26 (ALL)
 RATPK2123mi45°
 GIDGT1168mi67°
 HOOVR7, MCCRN678mi122°
 LOHLA251mi298°
RW26L
 NIITZ2176mi78°
 RASLR290mi119°
 RADYR253mi218°
 JOHKR2126mi299°
RW26R
 NIITZ2176mi78°
 RASLR290mi119°
 RADYR253mi218°
 JOHKR2126mi299°

STAR starting pointsdistanceinbound heading
ALL
 LARKK140.949°
 GAMES132.186°
 PUMLE137.5102°
 BLAID167.5248°
 ISHEE153.1288°
 CRESO418.8359°
RW01 (ALL)
 RNDRZ140.949°
 COKTL128.495°
 JAYSN141.6122°
RW01L
 CHOWW136.2257°
 RKSTR143.2287°
RW01R
 CHOWW136.2257°
 RKSTR143.2287°
RW08 (ALL)
 RNDRZ140.949°
 COKTL128.495°
 JAYSN141.6122°
 RKSTR143.2287°
RW19 (ALL)
 RNDRZ140.949°
 COKTL128.495°
 JAYSN141.6122°
 CHOWW136.2257°
 RKSTR143.2287°
RW26 (ALL)
 RNDRZ140.949°
 COKTL128.495°
 JAYSN141.6122°
RW26L
 CHOWW136.2257°
 RKSTR143.2287°
RW26R
 CHOWW136.2257°
 RKSTR143.2287°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW01RBUHLL (18°)BUHLL
FEBET (3mi, 324°) 6000ft
RW01RCAKNU (28°)CAKNU
FEBET (6mi, 30°) 6000ft
 RNAVFEBET 6000ft
KIBSE (4mi, 30°) 5100ft
GALNE (4mi, 30°) 3900ft
MOLME (1mi, 30°) 3500ft
REPHO (3mi, 30°) 2485ft
(6613mi, 107°) 2700ft
HAIDN (6598mi, 287°) 7000ft
HAIDN (turn) 7000ft
RW08RVYAGGR (42°)YAGGR 8000ft
CEENA (3mi, 16°) 7000ft
 RNAVCEENA 7000ft
MNDRN (3mi, 16°) 6000ft
POKKR (3mi, 15°) 5000ft
PAYTT (2mi, 15°) 4600ft
BHARP (2mi, 78°) 3800ft
KLAS (4mi, 81°) 2218ft
(6612mi, 107°) 2590ft
RW19LVPPENN (259°)PPENN 6000ft
KIVEY (2mi, 274°) 5300ft
 RNAVKIVEY 5300ft
DFRIG (4mi, 273°) 3900ft
FIRED (2mi, 269°) 3500ft
LOADE (2mi, 257°) 2900ft
KLAS (3mi, 218°) 2155ft
(6612mi, 107°) 2590ft
RW19LYLAPIN (264°)LAPIN
STORA (16mi, 307°) 6000ft
STORA (turn) 6000ft
RW19LYSUVIE (233°)SUVIE
STORA (10mi, 256°) 6000ft
 RNAVSTORA 6000ft
MOZOS (4mi, 221°) 5300ft
DIRDE (4mi, 221°) 4300ft
JABNA (6mi, 210°) 2300ft
(6611mi, 107°) 2600ft
LAPIN (6593mi, 287°) 6000ft
LAPIN (turn)
RW19LZPPENN (259°)PPENN 6000ft
KIVEY (2mi, 274°) 5300ft
 RNAVKIVEY 5300ft
MOBBB (4mi, 273°) 3900ft
KOOPA (2mi, 269°) 3500ft
DLARG (1mi, 257°)
GIFTT (turn)
KLAS (3mi, 219°) 2155ft
ECKKR (1mi, 190°)
PAREE (5mi, 210°)
MATLR (8mi, 184°) 7000ft
MATLR (turn) 7000ft
RW19RVPPENN (259°)PPENN 6000ft
KIVEY (2mi, 274°) 5300ft
 RNAVKIVEY 5300ft
DFRIG (4mi, 273°) 3900ft
DANCE (2mi, 269°) 3500ft
MRDUK (1mi, 257°) 3000ft
KLAS (3mi, 215°) 2169ft
(6612mi, 107°) 2590ft
RW19RYLAPIN (264°)LAPIN
STORA (16mi, 307°) 6000ft
STORA (turn) 6000ft
RW19RYSUVIE (233°)SUVIE
STORA (10mi, 256°) 6000ft
 RNAVSTORA 6000ft
MOZOS (4mi, 221°) 5300ft
WAKSI (4mi, 222°) 4300ft
KLAS (7mi, 212°) 2149ft
(6612mi, 107°) 2600ft
LAPIN (6593mi, 287°) 6000ft
LAPIN (turn)
RW19RZPPENN (259°)PPENN 6000ft
KIVEY (2mi, 274°) 5300ft
 RNAVKIVEY 5300ft
MOBBB (4mi, 273°) 3900ft
GIMBL (2mi, 269°) 3500ft
HIRLR (turn)
CEGIL (turn)
KLAS (3mi, 216°) 2164ft
SIROE (1mi, 198°)
RACOR (5mi, 210°)
MATLR (8mi, 183°) 7000ft
MATLR (turn) 7000ft
RW26LBERBN (300°)BERBN 8000ft
BISHP (3mi, 90°) 7000ft
SHAND (4mi, 0°) 4800ft
RELIN (3mi, 270°) 3800ft
RW26LPRINO (272°)PRINO 8000ft
LARRE (5mi, 270°) 6500ft
SHAND (6mi, 270°) 4800ft
RELIN (3mi, 270°) 3800ft
 RNAVRELIN 3800ft
KLAS (7mi, 276°) 2108ft
KACEK (turn)
RUDYY (5mi, 267°)
SELLZ (5mi, 205°)
TTONE (6mi, 132°)
BLD (17mi, 77°) 7000ft
BLD (turn)
RW26RBERBN (300°)BERBN 8000ft
LUISA (3mi, 90°) 7000ft
BJORG (5mi, 0°) 4700ft
CONDY (3mi, 270°) 3800ft
RW26RFLYES (272°)FLYES 8000ft
FLICR (5mi, 270°) 6500ft
JALID (4mi, 270°) 5300ft
BJORG (2mi, 270°) 4700ft
CONDY (3mi, 270°) 3800ft
 RNAVCONDY 3800ft
KLAS (7mi, 275°) 2104ft
SKALD (turn)
RUDYY (5mi, 265°)
SELLZ (5mi, 205°)
TTONE (6mi, 132°)
BLD (17mi, 77°) 7000ft
BLD (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CHOWW1AALANVHFright45 (225)°DME 10.0miICAO rules
CHOWW1DUUGGVHFright60 (240)°DME 12.0miICAO rules
CHOWW1PHHILVHFright46 (226)°DME 12.0miICAO rules
COKTL1ARYELVHFright300 (120)°DME 11.0miICAO rules
COKTL1COKTLVHFright300 (120)°DME 10.0miICAO rules
CRESO4SARASVHFright213 (33)°< 17999ft1.0min timedICAO rules
GAMES1SOTOOVHFright302 (122)°DME 10.0miICAO rules
RKSTR1FLEAAVHFleft87 (267)°DME 11.0miICAO rules
RKSTR1JAAGRVHFleft88 (268)°DME 11.0miICAO rules
RKSTR1JJEANVHFleft131 (311)°DME 11.0miICAO rules
RKSTR1PEHTYVHFleft108 (288)°DME 10.0miICAO rules
RKSTR1VEDDRVHFright65 (245)°DME 11.0miICAO rules
RNDRZ1TOETSVHFright217 (37)°DME 10.0miICAO rules
RNDRZ1WATEVVHFright217 (37)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
