Airports for X-Plane

Los Angeles - Los Angeles Intl

Airport details

CountryUnited States of America
StateCalifornia
RegionK2
AirspaceLos Angeles Ctr
MunicipalityLos Angeles
Elevation125ft (38m)
TimezoneGMT -8
Coordinates33.94476, -118.41895
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKLAX
IATA codeLAX
FAA codeLAX

Communication

Los Angeles Intl Los Angeles Departure ATIS135.650
Los Angeles Intl Los Angeles Arrival ATIS133.800
Los Angeles Intl Los Angeles UNICOM122.950
Los Angeles Intl Los Angeles Delivery120.350
Los Angeles Intl Los Angeles Ground Control North121.650
Los Angeles Intl Los Angeles Ground Control South121.400
Los Angeles Intl Los Angeles Tower North133.900
Los Angeles Intl Los Angeles Tower South120.950
Los Angeles Intl SOCAL Approach 1124.050
Los Angeles Intl SOCAL Approach 2128.100
Los Angeles Intl SOCAL Departure Northwest125.200
Los Angeles Intl SOCAL Departure Southeast125.200

Approach frequencies

ILS-cat-IIIRW24R108.518.00mi
ILS-cat-IIIRW25L109.918.00mi
ILS-cat-IRW06L108.518.00mi
ILS-cat-IRW07R109.918.00mi
ILS-cat-IRW25R111.118.00mi
ILS-cat-IRW07L111.118.00mi
ILS-cat-IRW24L111.718.00mi
ILS-cat-IRW06R111.718.00mi
3° GSRW06L108.518.00mi
3° GSRW07L111.118.00mi
3° GSRW07R109.918.00mi
3° GSRW24L111.718.00mi
3° GSRW24R108.518.00mi
3° GSRW06R111.718.00mi
3° GSRW25R111.118.00mi
3° GSRW25L109.918.00mi
Nearby Points of Interest:
Hangar One
-
Warren Wilson Beach House
-
Venice Canal Historic District
-
Fox Theatre
-
Venice of America House
-
Venice Branch
-
Lincoln Place Apartment Homes
-
Parkhurst Building
-
Horatio West Court
-
Citizens Publishing Company Building
-
Santa Monica Looff Hippodrome
-
Angeles Mesa Branch
-
Charmont Apartments
-
Diamond Apartments
-
Redondo Beach Public Library
-
John Muir Branch Library
-
Henry Weaver House
-
Wadsworth Chapel
-
Majestic Crest Theatre
-
Memorial Branch
-
Jefferson Branch
-
Bradbury House
-
Vermont Square Branch
-
Ralphs Grocery Store
-
Streetcar Depot, West Los Angeles

Runway info

Runway 6L / 24R
 length2711m (8894ft)
 bearing84° / 264°
 width46m (151ft)
 surfaceconcrete
 blast zone0m (0ft) / 85m (279ft)
Runway 6R / 24L
 length3307m (10850ft)
 bearing84° / 264°
 width46m (151ft)
 surfaceconcrete
 displ threshold164m (538ft) / 240m (787ft)
 blast zone119m (390ft) / 124m (407ft)
Runway 7L / 25R
 length3931m (12897ft)
 bearing84° / 264°
 width46m (151ft)
 surfaceconcrete
 displ threshold257m (843ft) / 292m (958ft)
 blast zone120m (394ft) / 70m (230ft)
Runway 7R / 25L
 length3377m (11079ft)
 bearing84° / 264°
 width61m (200ft)
 surfaceconcrete
 blast zone119m (390ft) / 123m (404ft)

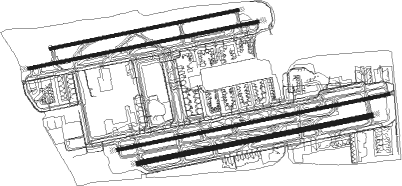

Airport layout


Taxiway locations

 A  A2  A3  A4  A6  A7  AA  B
 B1  B13  B16  B17  B3  B4  B5  B6
 BB  C  C10  C2  C3  C4  C5  C6
 C7  C8  C9  CC  D  D10  D7  D8
 D9  DD  E  E10  E11  E12  E13  E14
 E15  E17  E6  E7  E8  F  G  H
 H3  H4  H6  H8  H9  J  M  N
 P  R  S  T  U  V  W  Y
 Z
Parking locations

 341  341A  341B  342  342A  343  344  345
 4A  4B  5A  5B  AA  American  Atlantic  B1
 C1  Continental  Delta  DHL  FedEx  Imperial  KAL  Landmark
 NCA  QF  Quantas  SQ  Terminal  Tom  United  UPS
 US  USCG  Virgin  West

Nearby beacons

codeidentifierdistbearingfrequency
LAXLOS ANGELES VORTAC0.9228°113.60
SMOSANTA MONICA VOR/DME4.3330°110.80
VNYVAN NUYS VOR/DME17.1345°113.10
SLISEAL BEACH (LOS ALAMITOS) VORTAC20.5114°115.70
POMPOMONA VORTAC32.478°110.40
VTUVENTURA (OXNARD) VOR/DME33285°108.20
FIMFILLMORE VORTAC33.7312°112.50
SXCSANTA CATALINA VORTAC34.2180°111.40
NTDPOINT MUGU (OXNARD) TACAN36.5284°110.60
CMACAMARILLO VOR/DME37.2292°115.80
ELBEL TORO (SANTA ANA) VOR/DME37.9111°117.20
PDZPARADISE (ONTARIO) VORTAC44.392°112.20
PMDPALMDALE VORTAC44.827°114.50
LHSLAKE HUGHES VORTAC45348°114.35
RALRIVERSIDE VOR48.289°112.40
NUCSAN CLEMENTE TACAN55.7190°117.60
GMNGORMAN VORTAC56333°116.10

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW06 (ALL)
 LAXX1114mi98°
 SLI821mi114°
 PRCH317mi116°
 TUSTI2119mi120°
 SXC834mi180°
 CHATY5, VTU875mi293°
 TRTON2150mi303°
 GMN798mi336°
RW06L
 GARDY4102mi60°
 WNNDY399mi331°
RW06R
 GARDY4102mi60°
 WNNDY399mi331°
RW07 (ALL)
 GARDY4102mi60°
 LAXX1114mi98°
 SLI821mi114°
 PRCH317mi116°
 TUSTI2119mi120°
 SXC834mi180°
 VTU8, CHATY575mi293°
 TRTON2150mi303°
 GMN798mi336°
RW07L
 WNNDY399mi331°
RW07R
 WNNDY399mi331°
RW24 (ALL)
 LAXX1114mi98°
 SLI821mi114°
 PRCH317mi116°
 MOOOS232mi289°
 VTU875mi293°
 GMN798mi336°
 SKWRL218mi354°
RW24L
 OSHNN1122mi60°
 ORCKA5104mi63°
 DOTSS2143mi97°
 PNDAH2119mi120°
 ZILLI4208mi231°
 MUELR475mi293°
 SUMMR2, DARRK3150mi303°
 LADYJ499mi331°
RW24R
 OSHNN1122mi60°
 ORCKA5104mi63°
 DOTSS2143mi97°
 PNDAH2119mi120°
 ZILLI4208mi231°
 MUELR475mi293°
 SUMMR2, DARRK3150mi303°
 LADYJ499mi331°
RW25 (ALL)
 LAXX1114mi98°
 SLI821mi114°
 PRCH317mi116°
 MOOOS232mi289°
 VTU875mi293°
 GMN798mi336°
 SKWRL218mi354°
RW25L
 OSHNN1122mi60°
 ORCKA5104mi63°
 DOTSS2143mi97°
 PNDAH2119mi120°
 ZILLI4208mi231°
 MUELR475mi293°
 SUMMR2, DARRK3150mi303°
 LADYJ499mi331°
RW25R
 OSHNN1122mi60°
 ORCKA5104mi63°
 DOTSS2143mi97°
 PNDAH2119mi120°
 ZILLI4208mi231°
 MUELR475mi293°
 DARRK3, SUMMR2150mi303°
 LADYJ499mi331°

STAR starting pointsdistanceinbound heading
ALL
 LEENA734.20°
 DIRBY136.13°
 GOATZ147.318°
 HUULL283.399°
 SADDE818.1105°
 BAYST113.2109°
 RYDRR235.1111°
 IRNMN230.1123°
 MOOR433.7132°
 WAYVE138.0172°
 KIMMO327.9180°
 BOGET235.1196°
 ANJLL473.2259°
 HLYWD1105.9266°
 OCEAN3103.6294°
 SNSTT2, OLAAA2141.8295°
 VISTA373.5301°
RW06 (ALL)
 ZUUMA334.2121°
 BIGBR334.4262°
 MDNYT226.4266°
 BRUEN234.7268°
RW07 (ALL)
 ZUUMA334.2121°
 BIGBR334.4262°
 BRUEN234.7268°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06LYEXERT (81°)EXERT
CLVVR (5mi, 68°) 4000ft
NATHN (5mi, 84°) 3600ft
RW06LYFIM (132°)FIM
WAKER (20mi, 172°) 6000ft
KILIE (3mi, 150°) 5600ft
NATHN (9mi, 111°) 3600ft
 RNAVNATHN 3600ft
ALISN (6mi, 84°) 1800ft
KLAX (6mi, 87°) 168ft
(6802mi, 106°) 369ft
ZANAV (6796mi, 286°)
AMTRA (11mi, 59°) 3000ft
AMTRA (turn)
RW06LZEXERT (81°)EXERT
CLVVR (5mi, 68°) 4000ft
NATHN (5mi, 84°) 3600ft
RW06LZSASSI (109°)SASSI 7000ft
JOLPO (4mi, 265°) 5800ft
NATHN (4mi, 172°) 3600ft
RW06LZWAKER (102°)WAKER 6000ft
KILIE (3mi, 150°) 5600ft
NATHN (9mi, 111°) 3600ft
 RNAVNATHN 3600ft
ALISN (6mi, 84°) 1800ft
KLAX (6mi, 87°) 168ft
ZANAV (5mi, 81°)
AMTRA (11mi, 59°) 3000ft
AMTRA (turn)
RW06RYEXERT (81°)EXERT
KRSPI (5mi, 69°) 4000ft
OTTES (5mi, 84°) 3600ft
RW06RYFIM (132°)FIM
WAKER (20mi, 172°) 6000ft
KILIE (3mi, 150°) 5600ft
OTTES (8mi, 112°) 3600ft
 RNAVOTTES 3600ft
GUPPI (6mi, 84°) 1800ft
KLAX (6mi, 86°) 163ft
(6802mi, 106°) 316ft
ZIMLO (6797mi, 286°)
AMTRA (12mi, 59°) 3000ft
AMTRA (turn)
RW06RZEXERT (81°)EXERT
KRSPI (5mi, 69°) 4000ft
OTTES (5mi, 84°) 3600ft
RW06RZSASSI (109°)SASSI 7000ft
OVBIE (4mi, 264°) 5800ft
OTTES (4mi, 171°) 3600ft
RW06RZWAKER (102°)WAKER 6000ft
KILIE (3mi, 150°) 5600ft
OTTES (8mi, 112°) 3600ft
 RNAVOTTES 3600ft
GUPPI (6mi, 84°) 1800ft
KLAX (6mi, 86°) 163ft
ZIMLO (5mi, 82°)
AMTRA (12mi, 59°) 3000ft
AMTRA (turn)
RW07LYEXERT (81°)EXERT
RIBBN (6mi, 77°) 4000ft
FEKIL (5mi, 84°) 2600ft
RW07LYFIM (132°)FIM
WAKER (20mi, 172°) 6000ft
KILIE (3mi, 150°) 5600ft
FEKIL (9mi, 114°) 2600ft
 RNAVFEKIL 2600ft
TURKA (6mi, 84°) 1800ft
KLAX (5mi, 79°) 179ft
(6802mi, 106°) 344ft
FILBA (6796mi, 286°)
DOWNE (9mi, 85°) 3000ft
DOWNE (turn)
RW07LZEXERT (81°)EXERT
RIBBN (6mi, 77°) 4000ft
FEKIL (5mi, 84°) 2600ft
SNAKS (4mi, 84°) 2300ft
TURKA (2mi, 84°) 1800ft
RW07LZWAKER (102°)WAKER 6000ft
KILIE (3mi, 150°) 5600ft
FEKIL (9mi, 114°) 2600ft
SNAKS (4mi, 84°) 2300ft
TURKA (2mi, 84°) 1800ft
RW07LZWNDFL (20°)WNDFL 6000ft
VIREO (4mi, 264°) 4700ft
SNAKS (5mi, 352°) 2300ft
TURKA (2mi, 84°) 1800ft
 RNAVTURKA 1800ft
KLAX (5mi, 79°) 179ft
FILBA (6mi, 88°)
DOWNE (9mi, 85°) 3000ft
DOWNE (turn)
RW07RYEXERT (81°)EXERT
JJONN (6mi, 78°) 4000ft
TIMSE (5mi, 84°) 2600ft
RW07RYFIM (132°)FIM
WAKER (20mi, 172°) 6000ft
KILIE (3mi, 150°) 5600ft
TIMSE (10mi, 114°) 2600ft
 RNAVTIMSE 2600ft
FUMBL (6mi, 84°) 1800ft
KLAX (5mi, 78°) 182ft
(6802mi, 106°) 328ft
ESINE (6796mi, 286°)
DOWNE (9mi, 84°) 3000ft
DOWNE (turn)
RW07RZEXERT (81°)EXERT
JJONN (6mi, 78°) 4000ft
TIMSE (5mi, 84°) 2600ft
JAAKI (4mi, 84°) 2300ft
FUMBL (2mi, 84°) 1800ft
RW07RZWAKER (102°)WAKER 6000ft
KILIE (3mi, 150°) 5600ft
TIMSE (10mi, 114°) 2600ft
JAAKI (4mi, 84°) 2300ft
FUMBL (2mi, 84°) 1800ft
RW07RZWNDFL (20°)WNDFL 6000ft
VICUG (4mi, 264°) 4700ft
JAAKI (5mi, 352°) 2300ft
FUMBL (2mi, 84°) 1800ft
 RNAVFUMBL 1800ft
KLAX (5mi, 78°) 182ft
ESINE (6mi, 90°)
DOWNE (9mi, 84°) 3000ft
DOWNE (turn)
RW24LYCRCUS (262°)CRCUS
PFILA (10mi, 255°) 10000ft
SALWA (4mi, 264°) 9000ft
WLNUT (4mi, 264°) 8000ft
HURLR (4mi, 264°) 7000ft
FNESE (4mi, 264°) 6000ft
FAYZE (3mi, 264°) 5000ft
JULLI (3mi, 264°) 4000ft
RW24LYFNESE (264°)FNESE
FAYZE (3mi, 264°) 5000ft
JULLI (3mi, 264°) 4000ft
RW24LYSEAVU (268°)SEAVU
PFILA (11mi, 283°) 10000ft
SALWA (4mi, 264°) 9000ft
WLNUT (4mi, 264°) 8000ft
HURLR (4mi, 264°) 7000ft
FNESE (4mi, 264°) 6000ft
FAYZE (3mi, 264°) 5000ft
JULLI (3mi, 264°) 4000ft
 RNAVJULLI 4000ft
SUTIE (8mi, 264°) 2200ft
CORTY (5mi, 264°) 740ft
KLAX (3mi, 260°) 172ft
(6802mi, 106°) 323ft
JAKOS (6806mi, 286°)
RAFFS (11mi, 274°) 2000ft
RAFFS (turn)
RW24LZCRCUS (262°)CRCUS
PFILA (10mi, 255°) 10000ft
SALWA (4mi, 264°) 9000ft
WLNUT (4mi, 264°) 8000ft
HURLR (4mi, 264°) 7000ft
FNESE (4mi, 264°) 6000ft
FAYZE (3mi, 264°) 5000ft
JULLI (3mi, 264°) 4000ft
IFIJU (7mi, 264°) 2500ft
SUTIE (1mi, 264°) 2200ft
RW24LZFNESE (264°)FNESE
FAYZE (3mi, 264°) 5000ft
JULLI (3mi, 264°) 4000ft
IFIJU (7mi, 264°) 2500ft
SUTIE (1mi, 264°) 2200ft
RW24LZSEAVU (268°)SEAVU
PFILA (11mi, 283°) 10000ft
SALWA (4mi, 264°) 9000ft
WLNUT (4mi, 264°) 8000ft
HURLR (4mi, 264°) 7000ft
FNESE (4mi, 264°) 6000ft
FAYZE (3mi, 264°) 5000ft
JULLI (3mi, 264°) 4000ft
IFIJU (7mi, 264°) 2500ft
SUTIE (1mi, 264°) 2200ft
RW24LZTRNDO (280°)TRNDO 5000ft
GIRBE (6mi, 302°) 3100ft
IFIJU (2mi, 282°) 2500ft
SUTIE (1mi, 264°) 2200ft
 RNAVSUTIE 2200ft
KLAX (7mi, 263°) 172ft
JAKOS (5mi, 266°)
RAFFS (11mi, 274°) 2000ft
RAFFS (turn)
RW24RYCRCUS (262°)CRCUS
SKOLL (10mi, 256°) 10000ft
DECOR (4mi, 264°) 9000ft
BREEA (4mi, 264°) 8000ft
PALAC (4mi, 264°) 7000ft
LIVVN (4mi, 264°) 6000ft
BROUK (3mi, 264°) 5000ft
MERCE (3mi, 264°) 4000ft
RW24RYLIVVN (264°)LIVVN 6000ft
BROUK (3mi, 264°) 5000ft
MERCE (3mi, 264°) 4000ft
RW24RYSEAVU (268°)SEAVU
SKOLL (11mi, 283°) 10000ft
DECOR (4mi, 264°) 9000ft
BREEA (4mi, 264°) 8000ft
PALAC (4mi, 264°) 7000ft
LIVVN (4mi, 264°) 6000ft
BROUK (3mi, 264°) 5000ft
MERCE (3mi, 264°) 4000ft
 RNAVMERCE 4000ft
KOBEE (8mi, 264°) 2200ft
ARBIE (5mi, 264°) 720ft
KLAX (3mi, 258°) 174ft
(6802mi, 106°) 322ft
IGUPE (6807mi, 286°)
RAFFS (11mi, 274°) 2000ft
RAFFS (turn)
RW24RZCRCUS (262°)CRCUS
SKOLL (10mi, 256°) 10000ft
DECOR (4mi, 264°) 9000ft
BREEA (4mi, 264°) 8000ft
PALAC (4mi, 264°) 7000ft
LIVVN (4mi, 264°) 6000ft
BROUK (3mi, 264°) 5000ft
MERCE (3mi, 264°) 4000ft
MUBME (7mi, 264°) 2500ft
KOBEE (1mi, 264°) 2200ft
RW24RZDAHJR (216°)DAHJR 6000ft
NORPE (5mi, 84°) 4500ft
LAZES (3mi, 124°) 3500ft
MUBME (3mi, 224°) 2500ft
KOBEE (1mi, 264°) 2200ft
RW24RZDARTS (215°)DARTS
VAALE (6mi, 152°) 4700ft
LAZES (4mi, 173°) 3500ft
MUBME (3mi, 224°) 2500ft
KOBEE (1mi, 264°) 2200ft
RW24RZLIVVN (264°)LIVVN
BROUK (3mi, 264°) 5000ft
MERCE (3mi, 264°) 4000ft
MUBME (7mi, 264°) 2500ft
KOBEE (1mi, 264°) 2200ft
RW24RZSEAVU (268°)SEAVU
SKOLL (11mi, 283°) 10000ft
DECOR (4mi, 264°) 9000ft
BREEA (4mi, 264°) 8000ft
PALAC (4mi, 264°) 7000ft
LIVVN (4mi, 264°) 6000ft
BROUK (3mi, 264°) 5000ft
MERCE (3mi, 264°) 4000ft
MUBME (7mi, 264°) 2500ft
KOBEE (1mi, 264°) 2200ft
RW24RZTRNDO (280°)TRNDO 5000ft
KURXO (7mi, 302°) 3100ft
MUBME (2mi, 283°) 2500ft
KOBEE (1mi, 264°) 2200ft
 RNAVKOBEE 2200ft
KLAX (7mi, 262°) 174ft
IGUPE (5mi, 267°)
RAFFS (11mi, 274°) 2000ft
RAFFS (turn)
RW25LYCLPUR (270°)CLPUR 10000ft
WITZZ (4mi, 264°) 9000ft
JUDOH (3mi, 265°) 8000ft
KENZO (4mi, 264°) 7000ft
SNNAK (3mi, 265°) 6300ft
GAATE (6mi, 293°) 5000ft
HUNDA (4mi, 264°) 3600ft
RW25LYCRCUS (262°)CRCUS
KRAIN (10mi, 250°) 10000ft
TAROC (3mi, 264°) 9000ft
DYMMO (3mi, 264°) 8000ft
FUELR (4mi, 264°) 7000ft
GAATE (9mi, 264°) 5000ft
HUNDA (4mi, 264°) 3600ft
RW25LYGAATE (266°)GAATE
HUNDA (4mi, 264°) 3600ft
RW25LYSEAVU (268°)SEAVU
KRAIN (10mi, 280°) 10000ft
TAROC (3mi, 264°) 9000ft
DYMMO (3mi, 264°) 8000ft
FUELR (4mi, 264°) 7000ft
GAATE (9mi, 264°) 5000ft
HUNDA (4mi, 264°) 3600ft
RW25LYTRNDO (280°)TRNDO 5000ft
HIPED (2mi, 352°) 4500ft
HUNDA (3mi, 303°) 3600ft
 RNAVHUNDA 3600ft
GIGII (6mi, 264°) 1900ft
LADLE (4mi, 264°) 700ft
KLAX (4mi, 273°) 152ft
(6802mi, 106°) 365ft
ZERAN (6809mi, 286°)
CATLY (9mi, 202°) 2000ft
CATLY (turn)
RW25LZCLPUR (270°)CLPUR 10000ft
WITZZ (4mi, 264°) 9000ft
JUDOH (3mi, 265°) 8000ft
KENZO (4mi, 264°) 7000ft
SNNAK (3mi, 265°) 6300ft
GAATE (6mi, 293°) 5000ft
HUNDA (4mi, 264°) 3600ft
WAVUD (4mi, 264°) 2200ft
GIGII (1mi, 264°) 1900ft
RW25LZCRCUS (262°)CRCUS
KRAIN (10mi, 250°) 10000ft
TAROC (3mi, 264°) 9000ft
DYMMO (3mi, 264°) 8000ft
FUELR (4mi, 264°) 7000ft
GAATE (9mi, 264°) 5000ft
HUNDA (4mi, 264°) 3600ft
WAVUD (4mi, 264°) 2200ft
GIGII (1mi, 264°) 1900ft
RW25LZSEAVU (268°)SEAVU
KRAIN (10mi, 280°) 10000ft
TAROC (3mi, 264°) 9000ft
DYMMO (3mi, 264°) 8000ft
FUELR (4mi, 264°) 7000ft
GAATE (9mi, 264°) 5000ft
HUNDA (4mi, 264°) 3600ft
WAVUD (4mi, 264°) 2200ft
GIGII (1mi, 264°) 1900ft
RW25LZTRNDO (280°)TRNDO 5000ft
HIPED (2mi, 352°) 4500ft
HUNDA (3mi, 303°) 3600ft
WAVUD (4mi, 264°) 2200ft
GIGII (1mi, 264°) 1900ft
 RNAVGIGII 1900ft
KLAX (7mi, 269°) 152ft
ZERAN (7mi, 260°)
CATLY (9mi, 202°) 2000ft
CATLY (turn)
RW25RYCLPUR (270°)CLPUR 10000ft
WITZZ (4mi, 264°) 9000ft
JUDOH (3mi, 265°) 8000ft
KENZO (4mi, 264°) 7000ft
SNNAK (3mi, 265°) 6300ft
FALLT (6mi, 295°) 5000ft
SHELL (4mi, 264°) 3700ft
RW25RYCRCUS (262°)CRCUS
LYCOM (10mi, 251°) 10000ft
TAANK (3mi, 264°) 9000ft
JURPE (3mi, 264°) 8000ft
MUSIK (4mi, 264°) 7000ft
FALLT (9mi, 264°) 5000ft
SHELL (4mi, 264°) 3700ft
RW25RYFALLT (266°)FALLT
SHELL (4mi, 264°) 3700ft
RW25RYSEAVU (268°)SEAVU
LYCOM (10mi, 281°) 10000ft
TAANK (3mi, 264°) 9000ft
JURPE (3mi, 264°) 8000ft
MUSIK (4mi, 264°) 7000ft
FALLT (9mi, 264°) 5000ft
SHELL (4mi, 264°) 3700ft
RW25RYTRNDO (280°)TRNDO 5000ft
SHELL (5mi, 326°) 3700ft
 RNAVSHELL 3700ft
FOGLA (6mi, 264°) 1900ft
GRIMY (4mi, 264°) 740ft
KLAX (4mi, 271°) 151ft
(6802mi, 106°) 304ft
ZIMRU (6809mi, 286°)
CATLY (9mi, 203°) 2000ft
CATLY (turn)
RW25RZCLPUR (270°)CLPUR 10000ft
WITZZ (4mi, 264°) 9000ft
JUDOH (3mi, 265°) 8000ft
KENZO (4mi, 264°) 7000ft
SNNAK (3mi, 265°) 6300ft
FALLT (6mi, 295°) 5000ft
SHELL (4mi, 264°) 3700ft
AYITU (5mi, 264°) 2200ft
RW25RZCRCUS (262°)CRCUS
LYCOM (10mi, 251°) 10000ft
TAANK (3mi, 264°) 9000ft
JURPE (3mi, 264°) 8000ft
MUSIK (4mi, 264°) 7000ft
FALLT (9mi, 264°) 5000ft
SHELL (4mi, 264°) 3700ft
AYITU (5mi, 264°) 2200ft
RW25RZSEAVU (268°)SEAVU
LYCOM (10mi, 281°) 10000ft
TAANK (3mi, 264°) 9000ft
JURPE (3mi, 264°) 8000ft
MUSIK (4mi, 264°) 7000ft
FALLT (9mi, 264°) 5000ft
SHELL (4mi, 264°) 3700ft
AYITU (5mi, 264°) 2200ft
 RNAVAYITU 2200ft
FOGLA (1mi, 264°) 1900ft
KLAX (7mi, 268°) 151ft
ZIMRU (7mi, 260°)
CATLY (9mi, 203°) 2000ft
CATLY (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ANJLL4ANJLLVHFright52 (232)°DME 10.0miICAO rules
ANJLL4BOYELVHFright60 (240)°DME 10.0miICAO rules
ANJLL4CRCUSVHFright61 (241)°DME 10.0miICAO rules
ANJLL4SALYYVHFright54 (234)°DME 10.0miICAO rules
ANJLL4SHTNRVHFleft35 (215)°DME 10.0miICAO rules
BASET5ARNESVHFleft68 (248)°1.0min timedICAO rules
BASET5ARRVDVHFleft69 (249)°1.0min timedICAO rules
BASET5CIVETVHFleft68 (248)°< 17999ft1.0min timedICAO rules
BASET5DAWNAVHFleft30 (210)°1.0min timedICAO rules
BASET5GRAMMVHFleft46 (226)°< 17999ft1.0min timedICAO rules
BASET5JLINDBleft108 (288)°1.5min timedICAO rules
BASET5KONZLVHFleft69 (249)°< 17999ftDME 10.0miICAO rules
BASET5PDZNDBright30 (210)°1.0min timedICAO rules
BASET5RESORVHFleft30 (210)°< 17999ft1.0min timedICAO rules
BASET5RONLDVHFleft123 (303)°1.5min timedICAO rules
BAYST1BAYSTVHFleft283 (103)°DME 10.0miICAO rules
BAYST1GRIPRVHFleft312 (132)°DME 10.0miICAO rules
BAYST1HUULLVHFleft255 (75)°DME 16.0miICAO rules
BAYST1RYDRRVHFleft259 (79)°DME 10.0miICAO rules
BIGBR3BIGBRVHFright64 (244)°DME 6.0miICAO rules
BIGBR3KAOSSVHFright60 (240)°DME 10.0miICAO rules
BIGBR3SALYYVHFright54 (234)°DME 10.0miICAO rules
BIGBR3SHTNRVHFleft35 (215)°DME 10.0miICAO rules
BRUEN2MDLERVHFright41 (221)°DME 10.0miICAO rules
BRUEN2SHRTZVHFleft73 (253)°DME 6.0miICAO rules
BRUEN2TRUBLVHFleft70 (250)°DME 10.0miICAO rules
HLYWD1MDLERVHFright41 (221)°DME 10.0miICAO rules
HLYWD1NEILEVHFleft70 (250)°DME 10.0miICAO rules
HLYWD1SEAVUVHFleft70 (250)°DME 10.0miICAO rules
HUULL2BAYSTVHFleft283 (103)°DME 10.0miICAO rules
HUULL2HUULLVHFleft255 (75)°DME 16.0miICAO rules
HUULL2RYDRRVHFleft259 (79)°DME 10.0miICAO rules
IRNMN2BAYSTVHFleft283 (103)°DME 10.0miICAO rules
IRNMN2GRIPRVHFleft312 (132)°DME 10.0miICAO rules
KIMMO3DARTSVHFleft319 (139)°DME 10.0miICAO rules
LEENA7BENETVHFright287 (107)°DME 10.0miICAO rules
LEENA7CWARDVHFright148 (328)°DME 10.0miICAO rules
LEENA7SXCNDBleft287 (107)°DME 10.0miICAO rules
LEENA7TOZEKVHFright148 (328)°DME 10.0miICAO rules
MDNYT2MDLERVHFright41 (221)°DME 10.0miICAO rules
MDNYT2RNCHOVHFleft109 (289)°DME 10.0miICAO rules
MDNYT2SALYYVHFright54 (234)°DME 10.0miICAO rules
MDNYT2SHTNRVHFleft35 (215)°DME 10.0miICAO rules
MOOR4REYESVHFright310 (130)°< 45000ft1.5min timedICAO rules
OCEAN3JLINDBleft108 (288)°1.5min timedICAO rules
OLAAA2PESOZVHFleft111 (291)°DME 10.0miICAO rules
OLAAA2RNCHOVHFleft109 (289)°DME 10.0miICAO rules
OLAAA2TOZEKVHFright148 (328)°DME 10.0miICAO rules
RYDRR2BAYSTVHFleft283 (103)°DME 10.0miICAO rules
RYDRR2EESSAVHFleft226 (46)°DME 16.0miICAO rules
RYDRR2HUULLVHFleft255 (75)°DME 16.0miICAO rules
RYDRR2RYDRRVHFleft259 (79)°DME 10.0miICAO rules
SADDE8REYESVHFright310 (130)°< 45000ft1.5min timedICAO rules
SEAVU2ARRVDVHFleft69 (249)°1.0min timedICAO rules
SEAVU2KONZLVHFleft69 (249)°< 17999ftDME 10.0miICAO rules
SNSTT2RNCHOVHFleft109 (289)°DME 10.0miICAO rules
SNSTT2SEAVUVHFleft70 (250)°DME 10.0miICAO rules
VISTA3CWARDVHFright148 (328)°DME 10.0miICAO rules
VISTA3JLINDBleft108 (288)°1.5min timedICAO rules
VISTA3TOZEKVHFright148 (328)°DME 10.0miICAO rules
WAYVE1UPDOCVHFleft323 (143)°DME 8.0miICAO rules
WAYVE1WRINGVHFleft331 (151)°DME 10.0miICAO rules
ZUUMA3ALMSTVHFright313 (133)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
