Airports for X-Plane

Lake City - Lake City Muni

Airport details

Country	United States of America
State	Florida
Region	K7
Airspace	Jacksonville Ctr
Municipality	Columbia County
Elevation	201ft (61m)
Timezone	GMT -5
Coordinates	30.18206, -82.57686
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	KLCQ
IATA code	LCQ
FAA code	LCQ

Communication

Lake City Muni AWOS 3	120.675
Lake City Muni CTAF	119.200
Lake City Muni UNICOM	122.700
Lake City Muni Ground Control	121.900
Lake City Muni Tower	119.200

Runway info

Runway 10 / 28
	length	2435m (7989ft)
	bearing	96° / 276°
	width	46m (150ft)
	surface	asphalt
	blast zone	76m (249ft) / 0m (0ft)
Runway 5 / 23
	length	1220m (4003ft)
	bearing	56° / 236°
	width	23m (75ft)
	surface	asphalt
	blast zone	183m (600ft) / 183m (600ft)

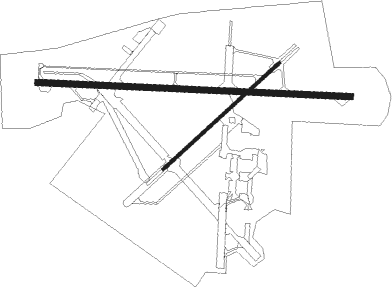

Airport layout

Nearby beacons

code	identifier	dist	bearing	frequency
LCQ	LAKE CITY NDB	0.2	332°	204
TAY	TAYLOR VORTAC	19.4	4°	112.90
GNV	GATORS VORTAC	33.4	148°	116.20
NZC	CECIL TACAN	36.7	87°	114.10
GN	WYNDS (GAINESVILLE) NDB	37.2	142°	269
CTY	CROSS CITY VORTAC	42.7	219°	112
JA	DINNS (JACKSONVILLE) NDB	43.6	70°	344
NIP	JACKSONVILLE TACAN	46.9	87°	108.20
RYD	REYNOLDS (GREEN COVE SPRINGS) NDB	49.4	103°	338
OTK	VALDOSTA VOR/DME	51.1	310°	114.80
HOE	HOMERVILLE NDB	53.4	347°	209
VAD	MOODY (VALDOSTA) TACAN	56.5	322°	113.30

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW10	DREBL (96°)	DREBL 2000ft
RW10	TAY (184°)	TAY AZNEL (17mi, 225°) 2000ft DREBL (5mi, 188°) 2000ft
	RNAV	DREBL 2000ft TAZAN (5mi, 96°) 1800ft YESUN (3mi, 96°) 940ft KLCQ (3mi, 97°) 251ft (5020mi, 110°) 800ft DREBL (5031mi, 290°) 2000ft DREBL (turn)
RW28	OREHO (276°)	OREHO 2000ft
RW28	TOKUC (297°)	TOKUC 2000ft OREHO (5mi, 8°) 2000ft
RW28	ZELZY (256°)	ZELZY 2000ft OREHO (5mi, 188°) 2000ft
	RNAV	OREHO 2000ft OPPEY (6mi, 276°) 1800ft KLCQ (5mi, 276°) 251ft (5020mi, 110°) 540ft JITUX (5032mi, 290°) 2000ft JITUX (turn)

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
