Airports for X-Plane

New York - La Guardia

Airport details

CountryUnited States of America
StateNew York
RegionK6
AirspaceNew York Ctr
MunicipalityNew York County
Elevation20ft (6m)
TimezoneGMT -5
Coordinates40.77599, -73.88245
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKLGA
IATA codeLGA
FAA codeLGA

Communication

La Guardia ATIS-D127.050
La Guardia ATIS-A125.950
La Guardia Clearance Delivery121.875
La Guardia Ground121.700
La Guardia Tower118.700
La Guardia NEW YORK Approach128.800
La Guardia NEW YORK Approach120.400

Approach frequencies

LOCRW31108.518.00mi
LDARW22111.1518.00mi
ILS-cat-IIRW22110.518.00mi
ILS-cat-IRW13108.518.00mi
ILS-cat-IRW04110.518.00mi
3.1° GSRW13108.518.00mi
3.1° GSRW04110.518.00mi
3° GSRW22110.518.00mi
Nearby Points of Interest:
Marine Air Terminal
-
Lent Homestead and Cemetery
-
Steinway Mansion
-
United States Post Office
-
Astoria Center of Israel
-
Kaufman Astoria Studios
-
St. James Church
-
Benevolent and Protective Order of Elks, Lodge Number 878
-
RKO Keith's Theater
-
Congregation Tifereth Israel
-
Sohmer and Company Piano Factory
-
Flushing Meadows Carousel
-
Flushing Armory
-
Longwood Historic District
-
Flushing High School
-
John Bowne House
-
Casa Amadeo, antigua Casa Hernandez
-
Kingsland Homestead
-
The Octagon
-
Mott Haven Historic District
-
Harlem Courthouse
-
Holy Trinity Church, St. Christopher House and Parsonage
-
Bronx Borough Courthouse
-
Substation 7

Runway info

Runway 13 / 31
 length2130m (6988ft)
 bearing116° / 296°
 width46m (151ft)
 surfaceasphalt
 blast zone76m (249ft) / 110m (361ft)
Runway 4 / 22
 length2134m (7001ft)
 bearing40° / 220°
 width46m (151ft)
 surfaceasphalt
 blast zone95m (312ft) / 76m (249ft)

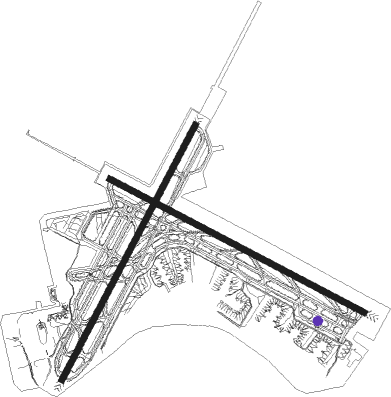

Airport layout - taxiway location N


Taxiway locations

 A  AA  B  BB  C  CC  CY  D
 E  F  G  GG  H  J  K  L
 M  N  P  R  S  T  V  W
 Y  YY  Z
Parking locations

 BF  GA  Gate  Hanger  Remote

Nearby beacons

codeidentifierdistbearingfrequency
LGALA GUARDIA (NEW YORK) VOR/DME0.761°113.10
TEBTETERBORO VOR/DME9.2292°108.40
CRICANARSIE VOR/DME9.8184°112.30
JFKKENNEDY (NEW YORK) VOR/DME9.9142°115.90
TETORBY (TETERBORO) NDB11.4276°214
FRFRIKK (FARMINGDALE) NDB18.190°407
MMMOREE (MORRISTOWN) NDB21.4283°392
CATCHATHAM NDB24.9266°254
DPKDEER PARK VOR/DME26.388°117.70
COLCOLTS NECK VOR/DME30.6211°115.40
CMKCARMEL VOR/DME33.231°116.60
SAXSPARTA VORTAC34.5294°115.70
SBJSOLBERG VOR/DME40.8257°112.90
BDRBRIDGEPORT VOR/DME41.463°108.80
BWZBROADWAY (SCHOOLEY'S MT) VOR/DME42.7271°114.20
RBVROBBINSVILLE VORTAC44.3227°113.80
SWNEELY (NEWBURGH) NDB45.4334°335
SKUSTANWYCK (NEWBURGH) NDB45.7348°261
STWSTILLWATER VOR/DME46.6283°109.60
NELLAKEHURST NDB48.5212°396
NELLAKEHURST TACAN49.3212°111.80
HUOHUGUENOT VOR/DME49.7312°116.10
IGNKINGSTON VOR/DME53.44°117.60
HVNHAVEN DME53.864°109.80
GXUMC GUIRE (WRIGHTSTOWN) VORTAC56.4223°110.60
PWLPAWLING (POUGHKEEPSIE) VOR/DME6116°114.30
CYNCOYLE VORTAC62.8210°113.40

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW13
 NTHNS515mi198°
RW22
 HOPEA315mi198°

STAR starting pointsdistanceinbound heading
ALL
 KORRY4119.347°
 APPLE175.550°
 MIP4127.195°
 HAARP339.5180°
 NOBBI549.7192°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04-ZGRITY (57°)GRITY
TICKL (11mi, 77°) 3000ft
RW04-ZMINKS (45°)MINKS
RENUE (12mi, 52°) 3000ft
TICKL (4mi, 40°) 3000ft
 RNAVTICKL 3000ft
DNNIS (9mi, 40°) 1700ft
KLGA (5mi, 38°) 75ft
GREKO (6mi, 41°) 2000ft
GREKO (turn)
RW13CHNZO (167°)CHNZO
RABBY (3mi, 228°) 2000ft
RW13MOISE (233°)MOISE
DHALP (11mi, 246°) 3000ft
CHNZO (9mi, 250°) 2000ft
RABBY (3mi, 228°) 2000ft
 RNAVRABBY 2000ft
MEATZ (3mi, 163°) 1320ft
PRUZK (3mi, 129°) 236ft
(4677mi, 119°) 421ft
CEPOG (4673mi, 299°) 2000ft
CEPOG (turn)
RW22-XDONYB (231°)DONYB
DANPS (5mi, 230°) 2500ft
RW22-XEYROD (257°)EYROD
DANPS (5mi, 305°) 2500ft
RW22-XJOTRE (198°)JOTRE
DANPS (5mi, 125°) 2500ft
 RNAVDANPS 2500ft
KUZZZ (3mi, 230°) 1500ft
DAZOO (1mi, 233°) 1100ft
EESON (3mi, 235°) 62ft
(4676mi, 119°) 500ft
PROUD (4680mi, 299°) 3000ft
PROUD (turn) 3000ft
RW22-ZHAARP (220°)HAARP
CASLE (14mi, 211°) 3000ft
 RNAVCASLE 3000ft
KUZZZ (5mi, 230°) 1600ft
PARGS (2mi, 244°)
KYLIE (turn)
KLGA (3mi, 223°) 64ft
(4676mi, 119°) 384ft
PROUD (4680mi, 299°) 3000ft
PROUD (turn)
RW31-YBIPKE (261°)BIPKE
GEMKE (5mi, 243°) 2000ft
RW31-YDRIES (241°)DRIES
WASBO (12mi, 64°) 3000ft
JABAD (6mi, 139°) 3000ft
BIPKE (7mi, 243°) 3000ft
GEMKE (5mi, 243°) 2000ft
RW31-YFEDEM (33°)FEDEM
DRIES (11mi, 55°) 4000ft
WASBO (12mi, 64°) 3000ft
JABAD (6mi, 139°) 3000ft
BIPKE (7mi, 243°) 3000ft
GEMKE (5mi, 243°) 2000ft
RW31-YJABAD (255°)JABAD
BIPKE (7mi, 243°) 3000ft
GEMKE (5mi, 243°) 2000ft
RW31-YWASBO (243°)WASBO
JABAD (6mi, 139°) 3000ft
BIPKE (7mi, 243°) 3000ft
GEMKE (5mi, 243°) 2000ft
 RNAVGEMKE 2000ft
NYJET (6mi, 243°) 1700ft
MANLL (2mi, 285°) 1200ft
KLGA (5mi, 290°) 57ft
(4676mi, 119°) 700ft
CEPOG (4673mi, 299°) 2000ft
CEPOG (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
APPLE1BACKYVHFright216 (36)°DME 7.0miICAO rules
APPLE1BRANDVHFright238 (58)°2000ft - 17999ft1.0min timed175
APPLE1DAMYRVHFleft237 (57)°6001ft - 14000ftDME 4.0mi210
APPLE1DEPDYVHFright236 (56)°6001ft - 14000ftDME 4.0mi210
APPLE1DQONDBleft233 (53)°6001ft - 14000ft1.0min timed210
APPLE1KERNOVHFright235 (55)°6001ft - 14000ftDME 7.0mi210
APPLE1PROUDVHFleft225 (45)°6001ft - 14000ft1.0min timed210
APPLE1RUUTHVHFleft262 (82)°DME 4.0miICAO rules
APPLE1WNDYLVHFright240 (60)°6001ft - 14000ftDME 4.0mi210
HAARP3CRALYVHFleft44 (224)°< 17999ft1.0min timed210
HAARP3RKANDBleft313 (133)°18000ft - 45000ftDME 10.0miICAO rules
HAARP3VALREVHFright23 (203)°6001ft - 14000ft1.0min timed210
KORRY4BESSIVHFleft224 (44)°1.0min timedICAO rules
KORRY4COLINVHFleft238 (58)°> 18000ft1.5min timedICAO rules
KORRY4EDJERVHFleft224 (44)°1.5min timed210
KORRY4GAREDVHFleft226 (46)°1.0min timedICAO rules
KORRY4HOLEYVHFleft238 (58)°6001ft - 14000ft1.0min timed210
KORRY4PROUDVHFleft225 (45)°6001ft - 14000ft1.0min timed210
KORRY4RBVNDBright248 (68)°6001ft - 14000ft1.0min timed210
MIP4BILEYVHFleft298 (118)°< 14000ft1.0min timedICAO rules
MIP4HARLMVHFright303 (123)°< 14000ft1.0min timedICAO rules
MIP4LIZZIVHFright295 (115)°< 17999ft1.0min timed210
MIP4MIPNDBleft289 (109)°< 60000ft1.5min timedICAO rules
MIP4PROUDVHFleft225 (45)°6001ft - 14000ft1.0min timed210
NOBBI5CMKNDBleft16 (196)°< 17999ft1.0min timedICAO rules
NOBBI5CRALYVHFleft44 (224)°< 17999ft1.0min timed210
NOBBI5NOBBIVHFleft356 (176)°< 17999ft1.0min timedICAO rules
NOBBI5RKANDBleft313 (133)°18000ft - 45000ftDME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
