Airports for X-Plane

Willoughby - Lake County Executive

Airport details

CountryUnited States of America
StateOhio
RegionK5
AirspaceCleveland Ctr
MunicipalityWilloughby
Elevation625ft (190m)
TimezoneGMT -5
Coordinates41.68403, -81.38975
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKLNN
IATA codeLNN
FAA codeLNN

Communication

Lake County Executive CTAF/UNICOM122.725
Lake County Executive CLEVELAND Approach/Departure125.350

Runway info

Runway 5 / 23
 length1532m (5026ft)
 bearing53° / 233°
 width30m (100ft)
 surfaceasphalt
 displ threshold131m (430ft) / 0m (0ft)
Runway 10 / 28
 length1302m (4272ft)
 bearing90° / 270°
 width30m (100ft)
 surfaceasphalt
 displ threshold0m (0ft) / 344m (1129ft)

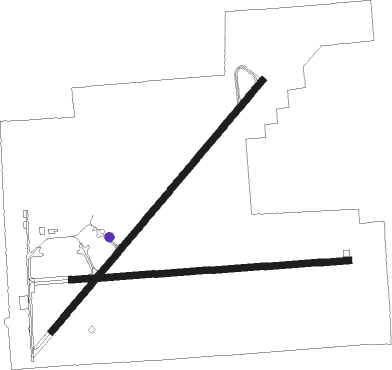

Airport layout - taxiway location C


Taxiway locations

 C  D
Parking locations

 Classic  North  Vector

Nearby beacons

codeidentifierdistbearingfrequency
LQLLAKELAND (WILLOUGHBY) NDB0.499°263
BFTABEY (CLEVELAND) NDB10.7238°248
CXRCHARDON VOR/DME14.2126°112.70
JFNJEFFERSON VOR/DME29.183°115.20
ACOAKRON VOR/DME35.6162°114.40
AKAKRON NDB36.8180°362
YNGYOUNGSTOWN VORTAC38.5116°109
DJBDRYER VOR/DME39.8247°113.60
YNFETCH (YOUNGSTOWN/WARREN) NDB46121°338
BSVBRIGGS VOR/DME56.6183°112.40
UCPCASTLE (NEW CASTLE) NDB59.1124°272

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW05
 MYCAR430mi68°
 AHMET4102mi161°
 CAVVS4107mi218°
 ZAAPA5238mi249°
 GTLKE4195mi266°
RW10
 MYCAR430mi68°
 AHMET4102mi161°
 CAVVS4107mi218°
 ZAAPA5238mi249°
 GTLKE4195mi266°
RW23
 MYCAR430mi68°
 AHMET4102mi161°
 CAVVS4107mi218°
 ZAAPA5238mi249°
 GTLKE4195mi266°
RW28
 MYCAR430mi68°
 AHMET4102mi161°
 CAVVS4107mi218°
 ZAAPA5238mi249°
 GTLKE4195mi266°

STAR starting pointsdistanceinbound heading
ALL
 ROLLN250.824°
 ROKNN367.656°
 BRWNZ438.2102°
 TRYBE417.9297°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05CXR (306°)CXR
WERIS (14mi, 266°) 3100ft
HEVRU (5mi, 306°) 2700ft
RW05FAILS (169°)FAILS
JUBDA (17mi, 225°) 2700ft
HEVRU (5mi, 126°) 2700ft
RW05HEVRU (53°)HEVRU 2700ft
 RNAVHEVRU 2700ft
UBIYA (6mi, 53°) 2100ft
KLNN (5mi, 54°) 664ft
(5020mi, 117°) 1026ft
HILEK (5013mi, 297°) 2300ft
HILEK (turn)
RW10CXR (306°)CXR
OYITI (21mi, 280°) 2900ft
NEVTE (5mi, 0°) 2300ft
RW10FAILS (169°)FAILS
WADIV (10mi, 251°) 2300ft
NEVTE (5mi, 180°) 2300ft
RW10NEVTE (90°)NEVTE 2300ft
 RNAVNEVTE 2300ft
HUSIS (6mi, 90°) 2000ft
KLNN (4mi, 89°) 664ft
(5020mi, 117°) 1026ft
PADIY (5017mi, 297°)
CXR (12mi, 135°) 2900ft
CXR (turn)
RW23CXR (306°)CXR
UROCE (14mi, 5°) 3000ft
HILEK (5mi, 307°) 2300ft
RW23FAILS (169°)FAILS
HUDUG (6mi, 74°) 2300ft
HILEK (5mi, 126°) 2300ft
RW23HILEK (232°)HILEK 2300ft
 RNAVHILEK 2300ft
ULUCA (6mi, 233°) 2000ft
KLNN (5mi, 232°) 660ft
(5020mi, 117°) 1026ft
YACUT (5021mi, 297°)
NEVTE (9mi, 279°) 2300ft
NEVTE (turn)
RW28CXR (306°)CXR
SUVNE (5mi, 23°) 2900ft
WUTUR (5mi, 1°) 2900ft
RW28FAILS (169°)FAILS
OYEPA (14mi, 104°) 2900ft
WUTUR (5mi, 181°) 2900ft
RW28WUTUR (271°)WUTUR 2900ft
 RNAVWUTUR 2900ft
ULIYE (6mi, 270°) 2400ft
KLNN (6mi, 271°) 666ft
(5020mi, 117°) 1026ft
NEVTE (5030mi, 297°) 2300ft
NEVTE (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BRWNZ4BRWNZVHFleft293 (113)°DME 10.0miICAO rules
BRWNZ4DETMRVHFleft282 (102)°DME 10.0miICAO rules
BRWNZ4FRYYEVHFleft284 (104)°DME 10.0miICAO rules
ROKNN3ROKNNVHFright232 (52)°DME 10.0miICAO rules
ROLLN2ROLLNVHFright198 (18)°DME 10.0miICAO rules
TRYBE4DECRRVHFleft120 (300)°DME 10.0miICAO rules
TRYBE4HFNERVHFright78 (258)°DME 10.0miICAO rules
TRYBE4TRYBEVHFleft95 (275)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
