Airports for X-Plane

Lawrenceville - Gwinnett Co Briscoe Fld

Airport details

CountryUnited States of America
StateGeorgia
RegionK7
AirspaceAtlanta Ctr
MunicipalityGwinnett County
Elevation1061ft (323m)
TimezoneGMT -5
Coordinates33.97807, -83.96238
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKLZU
IATA codeLZU
FAA codeLZU

Communication

Gwinnett Co Briscoe Fld ATIS132.275
Gwinnett Co Briscoe Fld CTAF124.100
Gwinnett Co Briscoe Fld UNICOM123.050
Gwinnett Co Briscoe Fld Ground Control121.800
Gwinnett Co Briscoe Fld Tower124.100
Gwinnett Co Briscoe Fld ATLANTA Approach126.975
Gwinnett Co Briscoe Fld ATLANTA Departure126.975

Approach frequencies

ILS-cat-IRW25109.9518.00mi
3° GSRW25109.9518.00mi

Runway info

Runway 7 / 25
 length1828m (5997ft)
 bearing68° / 248°
 width30m (100ft)
 surfaceasphalt
 blast zone45m (148ft) / 45m (148ft)

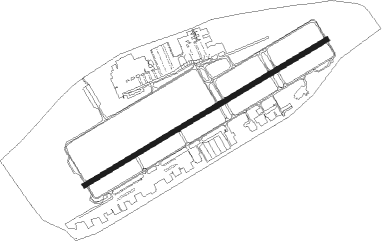

Airport layout


Taxiway locations

 B  C  D  E  F  G  H  J
 V  W  Y  Z
Parking locations

 Air  Aircraft  Atlanta  ATP  EAA  Georgia  Gwinnett  Helipad
 Medway  North  Quest  South  The

Nearby beacons

codeidentifierdistbearingfrequency
TXGWNET (LAWRENCEVILLE) NDB5.567°419
FKVFLOWERY BRANCH (GAINESVILLE) NDB13.814°365
PDKPEACHTREE (ATLANTA) VOR/DME17.8253°116.60
BMWBARROW COUNTY (WINDER) NDB18.797°404
VOFALCOVY (COVINGTON) NDB22.7153°370
DOBDOBBINS (MARIETTA) TACAN27.4263°113
DJDCHERO NDB30.8298°415
ATLATLANTA VORTAC31.5234°116.90
AHNATHENS VOR/DME31.893°109.60
ATCATTA (ATLANTA) NDB35.1240°375
FFCPECAT (ATLANTA) NDB48.3218°316
VVJUNNE (GREENSBORO) NDB50.9109°353
ODFFOOTHILLS (TOCCOA) VOR/DME54.243°113.40
EQQCOWETA COUNTY (NEWNAN) NDB57.3226°234
HRSHARRIS VORTAC57.93°109.80
UMBCULVR (MILLEDGEVILLE) NDB63.8136°380

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
STAR starting pointsdistanceinbound heading
ALL
 DIFFI483.653°
 BOKRT373.159°
 SWTEE259.189°
 BUKHD365.0114°
 DEHAN330.1178°
 WRGNZ338.8334°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07BLEWW (89°)BLEWW
CULTO (7mi, 83°) 4100ft
BOCBA (8mi, 128°) 3000ft
RW07HOTKA (52°)HOTKA
BOCBA (6mi, 16°) 3000ft
 RNAVBOCBA 3000ft
CURAP (6mi, 68°) 2800ft
KLZU (6mi, 68°) 1116ft
(5105mi, 112°) 1462ft
JOKLI (5094mi, 292°) 3000ft
JOKLI (turn)
RW25JOKLI (248°)JOKLI 3000ft
 RNAVJOKLI 3000ft
ATUDE (7mi, 248°) 2800ft
KLZU (6mi, 248°) 1079ft
(5105mi, 112°) 1600ft
JOKLI (5094mi, 292°) 3000ft
JOKLI (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BUKHD3HLNDSVHFright327 (147)°DME 10.0miICAO rules
DEHAN3AWSONVHFleft29 (209)°DME 10.0miICAO rules
DEHAN3TRALZVHFright32 (212)°DME 10.0miICAO rules
DIFFI4LGCNDBright228 (48)°1.0min timedICAO rules
SWTEE2BIZKTVHFleft292 (112)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
