Airports for X-Plane

Orlando - Orlando Intl

Airport details

CountryUnited States of America
StateFlorida
RegionK7
AirspaceJacksonville Ctr
MunicipalityOrlando
Elevation96ft (29m)
TimezoneGMT -5
Coordinates28.43102, -81.30766
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKMCO
IATA codeMCO
FAA codeMCO

Communication

Orlando Intl ATIS (Dep)120.525
Orlando Intl ATIS (Arr)121.250
Orlando Intl UNICOM122.950
Orlando Intl Clearance Delivery134.700
Orlando Intl Ground121.800
Orlando Intl Ground126.400
Orlando Intl Tower118.450
Orlando Intl Tower124.300
Orlando Intl Approach124.800
Orlando Intl Departure124.800

Approach frequencies

ILS-cat-IIIRW36R110.718.00mi
ILS-cat-IIIRW35L110.518.00mi
ILS-cat-IIIRW35R111.1518.00mi
ILS-cat-IIIRW17L110.9518.00mi
ILS-cat-IIRW17R111.7518.00mi
ILS-cat-IRW18R111.918.00mi
3° GSRW18R111.918.00mi
3° GSRW17L110.9518.00mi
3° GSRW35R111.1518.00mi
3° GSRW36R110.718.00mi
3° GSRW35L110.518.00mi
3° GSRW17R111.7518.00mi
Nearby Points of Interest:
J. J. Bridges House
-
Dr. P. Phillips House
-
Orlando Utilities Commission Administration Building
-
Rogers Building
-
Well'sbuilt Hotel
-
Holden-Parramore Historic District
-
Lake Eola Heights Historic District
-
Tinker Field
-
John N. Huttig Estate
-
Colonial Estate
-
Lake Adair-Lake Concord Historic District
-
Rosemere Historic District
-
Lake Ivanhoe Historic Residential District
-
Jack Kerouac House
-
S. Howard Atha House
-
Old Holy Redeemer Catholic Church
-
First United Methodist Church
-
Kissimmee Historic District
-
Osceola County Courthouse
-
Interlachen Avenue Historic District
-
Edward Hill Brewer House
-
Thomas Picton Warlow, Sr., House
-
Robert Bruce Barbour House
-
Comstock-Harris House
-
Winter Park Country Club and Golf Course

Runway info

Runway 18L / 36R
 length3673m (12051ft)
 bearing179° / 359°
 width61m (200ft)
 surfaceconcrete
 blast zone122m (400ft) / 124m (407ft)
Runway 18R / 36L
 length3672m (12047ft)
 bearing179° / 359°
 width61m (200ft)
 surfaceconcrete
 blast zone255m (837ft) / 214m (702ft)
Runway 17R / 35L
 length3059m (10036ft)
 bearing179° / 359°
 width46m (150ft)
 surfaceconcrete
 blast zone123m (404ft) / 122m (400ft)
Runway 17L / 35R
 length2753m (9032ft)
 bearing179° / 359°
 width46m (151ft)
 surfaceconcrete
 blast zone122m (400ft) / 123m (404ft)

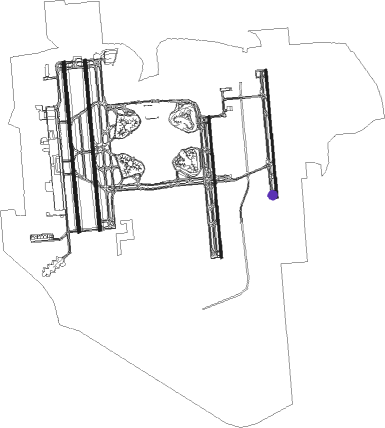

Airport layout - taxiway location N6


Taxiway locations

 18L  35L  A  A1  A2  B  B1  B10
 B2  B4  B5  B6  B7  B9  C  C1
 E  E1  E2  E4  E5  E6  F  G
 G1  H  H1  H10  H2  H3  H4  H5
 H6  H7  H8  H9  J  J1  J2  J3
 J4  K  L  N  N1  N2  N3  N4
 N5  N6  SILVER  Y  Z  Z1
Parking locations

 Atlantic  Cessna  DHL  FedEx  Gate  JetBlue  National  Signature
 Silver  Southwest  Stand  United  UPS

Nearby beacons

codeidentifierdistbearingfrequency
ORLORLANDO VORTAC6.8346°112.20
ORHERNY (ORLANDO) NDB8301°221
COFPATRICK (COCOA) TACAN38.5106°115
MLBMELBOURNE VOR/DME40.5116°115.85
LALLAKELAND VORTAC45.9238°116
OMNORMOND BEACH VORTAC53.313°112.60
TRVTREASURE (VERO BEACH) VORTAC62.6133°117.30
OCFOCALA VORTAC65.9309°113.70

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW17 (ALL)
 CITR1, ORLA432mi58°
 MZULO2150mi70°
 DDANY249mi102°
 FSHUN249mi207°
 LEWRD2212mi262°
 EPCOT264mi280°
 JEEMY288mi352°
 FATHE2170mi357°
RW18 (ALL)
 CITR1, ORLA432mi58°
 MZULO2150mi70°
 DDANY249mi102°
 FSHUN249mi207°
 LEWRD2212mi262°
 EPCOT264mi280°
 JEEMY288mi352°
 FATHE2170mi357°
RW35 (ALL)
 CITR1, ORLA432mi58°
 MZULO2150mi70°
RW35L
 DDANY249mi102°
 FSHUN249mi207°
 LEWRD2212mi262°
 EPCOT264mi280°
 JEEMY288mi352°
 FATHE2170mi357°
RW35R
 DDANY249mi102°
 FSHUN249mi207°
 LEWRD2212mi262°
 EPCOT264mi280°
 JEEMY288mi352°
 FATHE2170mi357°
RW36 (ALL)
 CITR1, ORLA432mi58°
 MZULO2150mi70°
RW36L
 DDANY249mi102°
 FSHUN249mi207°
 LEWRD2212mi262°
 EPCOT264mi280°
 JEEMY288mi352°
 FATHE2170mi357°
RW36R
 DDANY249mi102°
 FSHUN249mi207°
 LEWRD2212mi262°
 EPCOT264mi280°
 JEEMY288mi352°
 FATHE2170mi357°

STAR starting pointsdistanceinbound heading
ALL
 MINEE529.754°
 LEESE335.7132°
 SHREK246.7133°
 BITHO753.3193°
RW17 (ALL)
 JOKRS232.446°
 PRICY131.658°
 JAFAR232.2128°
 GRNCH232.8141°
 SNFLD129.8208°
 ALYNA125.7218°
 GOOFY730.7338°
 RIDES122.9338°
RW18 (ALL)
 JOKRS232.446°
 PRICY131.658°
 JAFAR232.2128°
 GRNCH232.8141°
 SNFLD129.8208°
 ALYNA125.7218°
 RIDES122.9338°
 GOOFY730.7338°
RW35 (ALL)
 JOKRS232.446°
 PRICY131.658°
 JAFAR232.2128°
 GRNCH232.8141°
 SNFLD129.8208°
 ALYNA125.7218°
 RIDES122.9338°
 GOOFY730.7338°
RW36 (ALL)
 JOKRS232.446°
 PRICY131.658°
 JAFAR232.2128°
 GRNCH232.8141°
 SNFLD129.8208°
 ALYNA125.7218°
 RIDES122.9338°
 GOOFY730.7338°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW17LBANYA (204°)BANYA 7000ft
HERVI (10mi, 225°) 4000ft
RW17LBOSCH (184°)BOSCH 6000ft
KAKEY (3mi, 179°) 5000ft
HERVI (3mi, 179°) 4000ft
 RNAVHERVI 4000ft
FONIK (3mi, 179°) 3000ft
SEEDO (2mi, 179°) 2500ft
COCAS (3mi, 179°) 1500ft
JAXES (3mi, 179°) 540ft
KMCO (2mi, 217°) 145ft
(4946mi, 109°) 500ft
PRESK (4937mi, 289°) 3000ft
PRESK (turn) 3000ft
RW17RSACRO (182°)SACRO 4000ft
DALTY (6mi, 179°) 4000ft
 RNAVDALTY 4000ft
ELLAN (3mi, 179°) 3000ft
GLOSI (2mi, 179°) 2500ft
MINCO (3mi, 179°) 1600ft
KMCO (5mi, 188°) 143ft
(4946mi, 109°) 290ft
FOBUK (4945mi, 289°) 3000ft
FOBUK (turn)
RW18LZANTI (177°)ZANTI 4000ft
HABRA (5mi, 179°) 4000ft
 RNAVHABRA 4000ft
GIPNE (3mi, 179°) 3000ft
COBOP (3mi, 179°) 2200ft
NAPPA (5mi, 179°) 560ft
KMCO (2mi, 159°) 147ft
(4946mi, 109°) 500ft
CAMBE (4962mi, 289°) 4000ft
CAMBE (turn)
RW18RHOLOP (176°)HOLOP 5000ft
NAVAL (3mi, 179°) 4000ft
RW18RYAGGO (157°)YAGGO 6000ft
NAVAL (6mi, 107°) 4000ft
 RNAVNAVAL 4000ft
ONNER (3mi, 179°) 3000ft
HAMMY (3mi, 179°) 3000ft
TUFFE (3mi, 179°) 2200ft
KMCO (8mi, 171°) 148ft
(4946mi, 109°) 500ft
CAMBE (4962mi, 289°) 4000ft
CAMBE (turn) 4000ft
RW35LFOBUK (356°)FOBUK 4000ft
RW35LODDEL (338°)ODDEL
FOBUK (9mi, 311°) 4000ft
 RNAVFOBUK 4000ft
FITEM (3mi, 359°) 3000ft
SPURR (4mi, 359°) 1600ft
AMICI (3mi, 359°) 540ft
KMCO (3mi, 344°) 144ft
(4946mi, 109°) 288ft
SACRO (4947mi, 289°) 4000ft
SACRO (turn)
RW35RCRUSE (354°)CRUSE 5000ft
SERAY (3mi, 359°) 4000ft
RW35RHAHNA (340°)HAHNA 6000ft
SERAY (6mi, 315°) 4000ft
 RNAVSERAY 4000ft
FESHA (3mi, 359°) 3000ft
HEWES (4mi, 359°) 1600ft
WOLDI (3mi, 359°) 540ft
KMCO (2mi, 322°) 145ft
(4946mi, 109°) 500ft
PRESK (4937mi, 289°) 3000ft
PRESK (turn) 3000ft
RW36LEXBAN (4°)EXBAN 4000ft
RW36LLORRA (19°)LORRA 7000ft
EXBAN (9mi, 38°) 4000ft
 RNAVEXBAN 4000ft
AMEBE (3mi, 359°) 3000ft
BERDY (4mi, 359°) 1600ft
RUTNE (3mi, 359°) 780ft
KMCO (3mi, 21°) 146ft
(4946mi, 109°) 500ft
DNMOR (4954mi, 289°) 3000ft
DNMOR (turn) 3000ft
RW36RFLOZY (3°)FLOZY 4000ft
RW36RMINEE (54°)MINEE
BOYAB (15mi, 86°) 4000ft
FLOZY (9mi, 63°) 4000ft
 RNAVFLOZY 4000ft
SILKY (3mi, 359°) 3000ft
JAKOR (4mi, 359°) 1600ft
KMCO (6mi, 8°) 147ft
(4946mi, 109°) 500ft
DNMOR (4954mi, 289°) 3000ft
DNMOR (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALYNA1GRDONVHFright19 (199)°DME 10.0miICAO rules
ALYNA1SURFRVHFleft79 (259)°DME 10.0miICAO rules
ALYNA1TIMIEVHFleft19 (199)°DME 10.0miICAO rules
BITHO7LAMMAVHFleft356 (176)°< 17999ft1.0min timedICAO rules
BITHO7OMNVHFleft2 (182)°DME 10.0miICAO rules
GOOFY7BAIRNVHFright162 (342)°< 17999ft1.0min timedICAO rules
GRNCH2ADLYNVHFleft356 (176)°DME 10.0miICAO rules
GRNCH2COAXEVHFleft356 (176)°DME 10.0miICAO rules
GRNCH2ELITEVHFleft321 (141)°DME 10.0miICAO rules
GRNCH2GRNCHVHFright337 (157)°DME 10.0miICAO rules
JAFAR2BITTEVHFright304 (124)°DME 10.0miICAO rules
JAFAR2BRKWLVHFleft354 (174)°DME 10.0miICAO rules
JAFAR2BUULLVHFright339 (159)°DME 10.0miICAO rules
JAFAR2HUNKRVHFright339 (159)°DME 10.0miICAO rules
JAFAR2ILEXXVHFright307 (127)°DME 10.0miICAO rules
JAFAR2JAFARVHFleft343 (163)°DME 10.0miICAO rules
JOKRS2FAZESVHFleft169 (349)°DME 10.0miICAO rules
JOKRS2MOANSVHFleft183 (3)°< 17999ft1.0min timedICAO rules
LEESE3LEESEVHFright309 (129)°1.0min timedICAO rules
LEESE3SHIMMVHFright309 (129)°1.0min timedICAO rules
MINEE5DOWNNVHFleft183 (3)°1.0min timedICAO rules
MINEE5MINEEVHFright240 (60)°< 17999ft1.0min timedICAO rules
MINEE5MOANSVHFleft183 (3)°< 17999ft1.0min timedICAO rules
PRICY1CHIVEVHFright273 (93)°DME 10.0miICAO rules
PRICY1DAAWGVHFright272 (92)°DME 10.0miICAO rules
PRICY1DECKSVHFright276 (96)°DME 10.0miICAO rules
PRICY1DOZESVHFright250 (70)°DME 10.0miICAO rules
PRICY1PRICYVHFright252 (72)°DME 10.0miICAO rules
RIDES1RIDESVHFleft164 (344)°DME 10.0miICAO rules
RIDES1ZALUPVHFright125 (305)°DME 10.0miICAO rules
SHREK2BITTEVHFright304 (124)°DME 10.0miICAO rules
SHREK2WANDDVHFright310 (130)°DME 10.0miICAO rules
SNFLD1GTOUTVHFleft360 (180)°DME 10.0miICAO rules
SNFLD1LPERDVHFright14 (194)°DME 10.0miICAO rules
SNFLD1NOOMNVHFleft2 (182)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
