Airports for X-Plane

Memphis - Memphis Intl

Airport details

CountryUnited States of America
StateTennessee
RegionK7
AirspaceMemphis Ctr
MunicipalityMemphis
Elevation335ft (102m)
TimezoneGMT -6
Coordinates35.04242, -89.97667
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKMEM
IATA codeMEM
FAA codeMEM

Communication

Memphis Intl ATIS127.750
Memphis Intl UNICOM122.950
Memphis Intl DLV125.200
Memphis Intl Ground Control (9/27)121.000
Memphis Intl Ground Control (18L/36R, 18C/36C)121.900
Memphis Intl Ground Control (18R/36L)121.650
Memphis Intl Tower (18L/36R, 18C/36C)119.700
Memphis Intl Tower (18R/36L)128.425
Memphis Intl Tower (9/27)118.300
Memphis Intl Approach (East)125.800
Memphis Intl Approach (West)119.100
Memphis Intl Approach (Final)120.925
Memphis Intl Approach (Final 9/27)126.050
Memphis Intl Departure (East)124.150
Memphis Intl Departure (West)124.650

Approach frequencies

ILS-cat-IIIRW36C110.518.00mi
ILS-cat-IIIRW36R111.3518.00mi
ILS-cat-IIIRW36L108.918.00mi
ILS-cat-IRW18C111.9518.00mi
ILS-cat-IRW18R109.918.00mi
ILS-cat-IRW18L111.1518.00mi
ILS-cat-IRW09109.518.00mi
ILS-cat-IRW27108.718.00mi
3° GSRW36C110.518.00mi
3° GSRW36R111.3518.00mi
3° GSRW18R109.918.00mi
3° GSRW09109.518.00mi
3° GSRW27108.718.00mi
3° GSRW18C111.9518.00mi
3° GSRW18L111.1518.00mi
3° GSRW36L108.918.00mi
Nearby Points of Interest:
Maxwelton
-
St. Mary's Catholic Church (Memphis, Tennessee)
-
Elvis Presley House
-
Greenwood
-
Ashlar Hall
-
Robert M. Carrier House
-
Joseph Newburger House
-
Central Gardens
-
Rowland J. Darnell House
-
Anderson-Coward House
-
High Point Terrace
-
Memorial Park Funeral Home & Cemetery
-
Paisley Hall
-
Evergreen
-
Hunt-Phelan House
-
Delmar-Lema Historic District
-
South Main Arts District
-
Crosstown Concourse
-
Victorian Village
-
Tennessee Brewery
-
Bradford–Maydwell House
-
Mosby-Bennett House
-
John Alexander Austin House
-
William R. Moore Dry Goods Building
-
Toof Building

Runway info

Runway 18C / 36C
 length3397m (11145ft)
 bearing179° / 359°
 width46m (150ft)
 surfaceconcrete
 blast zone122m (400ft) / 122m (400ft)
Runway 18R / 36L
 length2848m (9344ft)
 bearing179° / 359°
 width46m (150ft)
 surfaceconcrete
 blast zone122m (400ft) / 244m (801ft)
Runway 18L / 36R
 length2750m (9022ft)
 bearing179° / 359°
 width46m (150ft)
 surfaceconcrete
 blast zone122m (400ft) / 122m (400ft)
Runway 9 / 27
 length2722m (8930ft)
 bearing92° / 272°
 width46m (150ft)
 surfaceconcrete
 blast zone122m (400ft) / 122m (400ft)

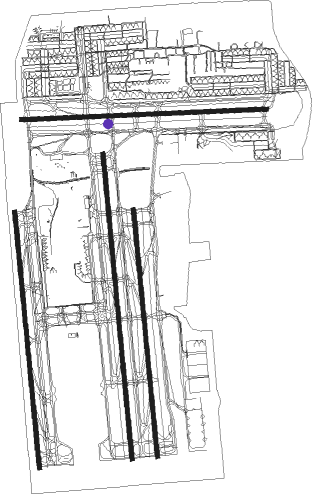

Airport layout - taxiway location S


Taxiway locations

 A  A1  A2  B  C  C1  C2  C3
 C6  C7  C8  D  E  H  J  K
 L  M  M1  M2  M3  M4  M5  M6
 M7  M8  M9  N  P  P1  P2  Q
 R  S  S1  S2  S3  S4  S5  S6
 S7  T  V  V1  V3  Y  Y1  Y2
Parking locations

 Cargo  FedEx  Gate  Juliet  Signature  Tennessee  Total  UPS
 Wilson

Nearby beacons

codeidentifierdistbearingfrequency
MEMMEMPHIS VORTAC1.6193°117.50
HLIHOLLY SPRINGS VORTAC28.7120°112.40
GQEGILMORE VOR/DME30.6301°113
UVTUNNG (OXFORD) NDB43.1152°426
UJMMARVELL (HELENA) VOR/DME44.4236°109.60
JBRJONESBORO VOR/DME58.2324°108.60
DYRDYERSBURG VORTAC66.834°116.80

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
ALL
 ELVIS441mi269°
RW09
 SELPH744mi13°
 CRSON793mi37°
 GENEH745mi54°
 GOETZ744mi77°
 AZONE744mi91°
 BBKNG792mi100°
 GMBUD742mi115°
 OLEMS638mi150°
 PIEPE658mi190°
 BINKY643mi222°
 AUTMN643mi237°
 CHLDR590mi260°
 DUCKZ543mi269°
 ZUMIT552mi278°
 NIKEI545mi297°
 HOTRD544mi312°
 GRRIZ545mi332°
 JTEEE545mi354°
RW18C
 SELPH744mi13°
 CRSON793mi37°
 GENEH745mi54°
 GOETZ744mi77°
 AZONE744mi91°
 BBKNG792mi100°
 GMBUD742mi115°
 OLEMS638mi150°
 PIEPE658mi190°
 BINKY643mi222°
 AUTMN643mi237°
 CHLDR590mi260°
 DUCKZ543mi269°
 ZUMIT552mi278°
 NIKEI545mi297°
 HOTRD544mi312°
 GRRIZ545mi332°
 JTEEE545mi354°
RW18L
 SELPH744mi13°
 CRSON793mi37°
 GENEH745mi54°
 GOETZ744mi77°
 AZONE744mi91°
 BBKNG792mi100°
 GMBUD742mi115°
 OLEMS638mi150°
 PIEPE658mi190°
 BINKY643mi222°
 AUTMN643mi237°
 CHLDR590mi260°
 DUCKZ543mi269°
 ZUMIT552mi278°
 NIKEI545mi297°
 HOTRD544mi312°
 GRRIZ545mi332°
 JTEEE545mi354°
RW18R
 SELPH744mi13°
 CRSON793mi37°
 GENEH745mi54°
 GOETZ744mi77°
 AZONE744mi91°
 BBKNG792mi100°
 GMBUD742mi115°
 OLEMS638mi150°
 PIEPE658mi190°
 BINKY643mi222°
 AUTMN643mi237°
 CHLDR590mi260°
 DUCKZ543mi269°
 ZUMIT552mi278°
 NIKEI545mi297°
 HOTRD544mi312°
 GRRIZ545mi332°
 JTEEE545mi354°
RW27
 SELPH744mi13°
 CRSON793mi37°
 GENEH745mi54°
 GOETZ744mi77°
 AZONE744mi91°
 BBKNG792mi100°
 GMBUD742mi115°
 OLEMS638mi150°
 PIEPE658mi190°
 BINKY643mi222°
 AUTMN643mi237°
 CHLDR590mi260°
 DUCKZ543mi269°
 ZUMIT552mi278°
 NIKEI545mi297°
 HOTRD544mi312°
 GRRIZ545mi332°
 JTEEE545mi354°
RW36C
 SELPH744mi13°
 CRSON793mi37°
 GENEH745mi54°
 GOETZ744mi77°
 AZONE744mi91°
 BBKNG792mi100°
 GMBUD742mi115°
 OLEMS638mi150°
 PIEPE658mi190°
 BINKY643mi222°
 AUTMN643mi237°
 CHLDR590mi260°
 DUCKZ543mi269°
 ZUMIT552mi278°
 NIKEI545mi297°
 HOTRD544mi312°
 GRRIZ545mi332°
 JTEEE545mi354°
RW36L
 SELPH744mi13°
 CRSON793mi37°
 GENEH745mi54°
 GOETZ744mi77°
 AZONE744mi91°
 BBKNG792mi100°
 GMBUD742mi115°
 OLEMS638mi150°
 PIEPE658mi190°
 BINKY643mi222°
 AUTMN643mi237°
 CHLDR590mi260°
 DUCKZ543mi269°
 ZUMIT552mi278°
 NIKEI545mi297°
 HOTRD544mi312°
 GRRIZ545mi332°
 JTEEE545mi354°
RW36R
 SELPH744mi13°
 CRSON793mi37°
 GENEH745mi54°
 GOETZ744mi77°
 AZONE744mi91°
 BBKNG792mi100°
 GMBUD742mi115°
 OLEMS638mi150°
 PIEPE658mi190°
 BINKY643mi222°
 AUTMN643mi237°
 CHLDR590mi260°
 DUCKZ543mi269°
 ZUMIT552mi278°
 NIKEI545mi297°
 HOTRD544mi312°
 GRRIZ545mi332°
 JTEEE545mi354°

STAR starting pointsdistanceinbound heading
ALL
 CONDR341.394°
 HYTHR261.4193°
 MONAA344.5271°
RW09
 HOBRK351.356°
 BRBBQ352.4117°
 BLUZZ349.4233°
 VANZE249.0292°
RW18 (ALL)
 UJM644.456°
 HOBRK351.356°
 BRBBQ352.4117°
 DAWGG247.0118°
 BLUZZ349.4233°
 WLDER945.6233°
 VANZE249.0292°
 LUGOH345.0293°
RW27
 HOBRK351.356°
 BRBBQ352.4117°
 BLUZZ349.4233°
 VANZE249.0292°
RW36 (ALL)
 HOBRK351.356°
 UJM644.456°
 BRBBQ352.4117°
 DAWGG247.0118°
 BLUZZ349.4233°
 WLDER945.6233°
 VANZE249.0292°
 LUGOH345.0293°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09GQE (121°)GQE
ALIDE (18mi, 125°) 2000ft
BUDEE (5mi, 182°) 2000ft
RW09MEM (13°)MEM
BUDEE (11mi, 283°) 2100ft
BUDEE (turn) 2000ft
RW09UJM (56°)UJM
JAMKO (34mi, 49°) 2000ft
BUDEE (5mi, 2°) 2000ft
 RNAVBUDEE 2000ft
FALIX (6mi, 92°) 1700ft
KMEM (5mi, 101°) 305ft
(5404mi, 111°) 557ft
KIMRE (5400mi, 291°)
KEEZE (12mi, 175°) 5000ft
KEEZE (turn) 5000ft
RW18CZLAURI (179°)LAURI 3900ft
RW18CZTUNIE (212°)TUNIE
LAURI (7mi, 261°) 3900ft
RW18CZZOKOR (144°)ZOKOR
LAURI (8mi, 97°) 3900ft
 RNAVLAURI 3900ft
JALDO (6mi, 179°) 2000ft
KMEM (6mi, 179°) 325ft
(5404mi, 111°) 665ft
CEDEN (5404mi, 291°)
KEEZE (6mi, 131°) 5000ft
KEEZE (turn) 5000ft
RW18LZREISE (180°)REISE 4400ft
RW18LZTUNIE (212°)TUNIE
REISE (7mi, 269°) 4400ft
RW18LZZOKOR (144°)ZOKOR
REISE (8mi, 89°) 4400ft
 RNAVREISE 4400ft
RONEE (8mi, 179°) 2000ft
KMEM (6mi, 181°) 338ft
(5404mi, 111°) 900ft
KEEZE (5399mi, 291°) 5000ft
KEEZE (turn) 5000ft
RW18RZMCVEY (176°)MCVEY 4400ft
RW18RZTUNIE (212°)TUNIE
MCVEY (8mi, 269°) 4400ft
RW18RZZOKOR (144°)ZOKOR
MCVEY (7mi, 89°) 4400ft
 RNAVMCVEY 4400ft
ELVIS (8mi, 179°) 2000ft
KMEM (6mi, 172°) 340ft
(5404mi, 111°) 900ft
JEPOB (5419mi, 291°) 5000ft
JEPOB (turn)
RW27COVIM (268°)COVIM 3000ft
 RNAVCOVIM 3000ft
CLBRN (6mi, 272°) 1900ft
KMEM (6mi, 264°) 346ft
(5404mi, 111°) 492ft
AVADE (5405mi, 291°)
GOWRI (15mi, 276°) 5000ft
GOWRI (turn) 5000ft
RW36CHLI (300°)HLI
IHTEM (17mi, 279°) 3000ft
NESBT (7mi, 276°) 3000ft
RW36CMEM (13°)MEM
NESBT (11mi, 176°) 3000ft
NESBT (turn) 3000ft
RW36CUJM (56°)UJM
OWAFO (31mi, 66°) 3000ft
NESBT (8mi, 82°) 3000ft
 RNAVNESBT 3000ft
GINIE (6mi, 359°) 2000ft
KMEM (6mi, 358°) 401ft
(5404mi, 111°) 665ft
LAURI (5404mi, 291°) 3000ft
LAURI (turn)
RW36LHLI (300°)HLI
IHTEM (17mi, 279°) 4000ft
FREAZ (8mi, 269°) 4000ft
RW36LMEM (13°)MEM
FREAZ (12mi, 180°) 4000ft
FREAZ (turn) 4000ft
RW36LUJM (56°)UJM
OWAFO (31mi, 66°) 4000ft
FREAZ (7mi, 89°) 4000ft
 RNAVFREAZ 4000ft
MACEE (4mi, 359°) 3000ft
CADUS (3mi, 359°) 2000ft
KMEM (6mi, 5°) 380ft
(5404mi, 111°) 673ft
SUNRE (5405mi, 291°)
KALIE (14mi, 296°) 5000ft
KALIE (turn) 5000ft
RW36RHLI (300°)HLI
IHTEM (17mi, 279°) 3000ft
HADAN (7mi, 269°) 3000ft
RW36RMEM (13°)MEM
HADAN (12mi, 176°) 3000ft
HADAN (turn) 3000ft
RW36RUJM (56°)UJM
OWAFO (31mi, 66°) 4000ft
HADAN (8mi, 89°) 3000ft
 RNAVHADAN 3000ft
MCGHE (7mi, 359°) 2000ft
KMEM (6mi, 357°) 393ft
(5404mi, 111°) 639ft
HANLO (5404mi, 291°)
OROCU (12mi, 57°) 5000ft
OROCU (turn) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BLUZZ3BNANDBleft80 (260)°DME 15.0miICAO rules
BLUZZ3BWGNDBleft62 (242)°DME 15.0miICAO rules
BLUZZ3CASOTVHFleft26 (206)°DME 15.0miICAO rules
BLUZZ3MRCELVHFright45 (225)°DME 6.0miICAO rules
BLUZZ3SPKERVHFleft48 (228)°DME 15.0miICAO rules
BRBBQ3BEERTVHFright310 (130)°DME 8.0miICAO rules
BRBBQ3BRBBQVHFleft296 (116)°DME 15.0miICAO rules
BRBBQ3IGLOOVHFleft295 (115)°< 60000ftDME 15.0miICAO rules
BRBBQ3MARBIVHFright278 (98)°< 60000ftDME 15.0miICAO rules
BRBBQ3WHOLLVHFleft335 (155)°DME 15.0miICAO rules
CONDR3WUKERVHFleft275 (95)°DME 15.0miICAO rules
DAWGG2ARGNDBleft344 (164)°< 60000ftDME 15.0miICAO rules
DAWGG2BEERTVHFright310 (130)°DME 8.0miICAO rules
DAWGG2FNCHRVHFleft291 (111)°< 60000ftDME 15.0miICAO rules
DAWGG2IGLOOVHFleft295 (115)°< 60000ftDME 15.0miICAO rules
DAWGG2MARBIVHFright278 (98)°< 60000ftDME 15.0miICAO rules
HOBRK3BEAVVVHFright280 (100)°DME 15.0miICAO rules
HOBRK3CPLANVHFright174 (354)°DME 15.0miICAO rules
HOBRK3FAYEEVHFright228 (48)°< 60000ftDME 10.0miICAO rules
HOBRK3HOBRKVHFright230 (50)°DME 15.0miICAO rules
HOBRK3JAMEAVHFright232 (52)°< 17999ftDME 8.0miICAO rules
HYTHR2HUMBOVHFleft12 (192)°< 60000ftDME 15.0miICAO rules
HYTHR2HYTHRVHFleft11 (191)°DME 15.0miICAO rules
LUGOH3CRAMMVHFright102 (282)°DME 10.0miICAO rules
LUGOH3FASONVHFright86 (266)°DME 15.0miICAO rules
LUGOH3LARUEVHFright120 (300)°DME 5.0miICAO rules
LUGOH3MASHHVHFleft102 (282)°DME 7.0miICAO rules
MONAA3GOSEYVHFleft92 (272)°DME 15.0miICAO rules
MONAA3TYMMYVHFleft47 (227)°DME 15.0miICAO rules
UJM6BARFFVHFright228 (48)°< 60000ftDME 8.0miICAO rules
UJM6FAYEEVHFright228 (48)°< 60000ftDME 10.0miICAO rules
UJM6JAMEAVHFright232 (52)°< 17999ftDME 8.0miICAO rules
UJM6TAMMYVHFright232 (52)°< 60000ftDME 8.0miICAO rules
VANZE2CRAMMVHFright102 (282)°DME 10.0miICAO rules
VANZE2ERASEVHFright122 (302)°< 60000ftDME 15.0miICAO rules
VANZE2FASONVHFright86 (266)°DME 15.0miICAO rules
VANZE2LARUEVHFright120 (300)°DME 5.0miICAO rules
WLDER9BNANDBleft80 (260)°DME 15.0miICAO rules
WLDER9CASOTVHFleft26 (206)°DME 15.0miICAO rules
WLDER9LTOWNVHFright45 (225)°< 60000ftDME 6.0miICAO rules
WLDER9MRCELVHFright45 (225)°DME 6.0miICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
