Airports for X-Plane

Milwaukee - General Mitchell Intl

Airport details

CountryUnited States of America
StateWisconsin
RegionK5
AirspaceChicago Ctr
MunicipalityMilwaukee
Elevation723ft (220m)
TimezoneGMT -6
Coordinates42.93689, -87.90021
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKMKE
IATA codeMKE
FAA codeMKE

Communication

General Mitchell Intl ATIS126.400
General Mitchell Intl UNICOM122.950
General Mitchell Intl MILWAUKEE Clearance DEL120.800
General Mitchell Intl MILWAUKEE Ground Control121.800
General Mitchell Intl MILWAUKEE Tower119.100
General Mitchell Intl MILWAUKEE Approach126.500
General Mitchell Intl MILWAUKEE Approach118.000
General Mitchell Intl MILWAUKEE Departure119.650
General Mitchell Intl MILWAUKEE Departure125.350

Approach frequencies

LOCRW25L111.518.00mi
ILS-cat-IIIRW01L110.318.00mi
ILS-cat-IRW19R110.318.00mi
ILS-cat-IRW07R111.518.00mi
3° GSRW19R110.318.00mi
3° GSRW07R111.518.00mi
3° GSRW01L110.318.00mi
Nearby Points of Interest:
Cudahy Chicago and North Western Railway Depot
-
South Milwaukee Passenger Station
-
South Milwaukee Post Office
-
Saint Francis de Sales Seminary
-
Beulah Brinton House
-
Milwaukee Fire Department High Pressure Pumping Station
-
Greendale Historic District
-
American System-Built Homes
-
Jeremiah Curtin House
-
Trimborn Farm
-
Goodwill Industries Building
-
Pittsburgh Plate Glass Enamel Plant
-
Johnston Hall
-
Ward Memorial Hall
-
Grand Avenue Congregational Church
-
Old World Third Street Historic District
-
Milwaukee Girls' Trade and Technical High School
-
Thomas Cook House
-
Valentin Blatz Brewing Company Office Building
-
Wadham's Oil and Grease Company of Milwaukee
-
St. George Melkite Catholic Church
-
Edward J. Dahinden House
-
Pabst Brewery Complex
-
Abraham H. Esbenshade House
-
David W. Howie House

Runway info

Runway 1L / 19R
 length3048m (10000ft)
 bearing10° / 190°
 width61m (200ft)
 surfaceconcrete
 displ threshold91m (299ft) / 240m (787ft)
 blast zone127m (417ft) / 88m (289ft)
Runway 7R / 25L
 length2533m (8310ft)
 bearing76° / 256°
 width46m (150ft)
 surfaceconcrete
 displ threshold0m (0ft) / 132m (433ft)
 blast zone58m (190ft) / 71m (233ft)
Runway 13 / 31
 length1689m (5541ft)
 bearing124° / 304°
 width46m (150ft)
 surfaceasphalt
 displ threshold225m (738ft) / 63m (207ft)
 blast zone0m (0ft) / 99m (325ft)
Runway 7L / 25R
 length1464m (4803ft)
 bearing76° / 256°
 width30m (100ft)
 surfaceasphalt
 blast zone6m (20ft) / 0m (0ft)
Runway 1R / 19L
 length1276m (4186ft)
 bearing10° / 190°
 width46m (150ft)
 surfaceasphalt

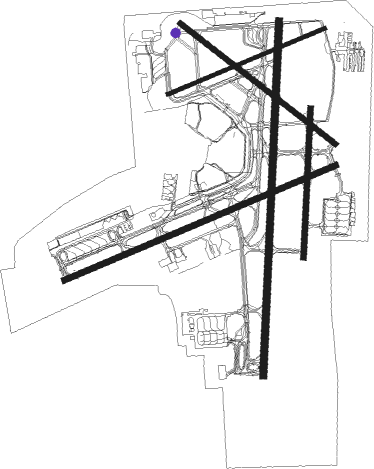

Airport layout - taxiway location C


Taxiway locations

 A  A1  A3  A4  A5  B  C  D
 D1  E  F  F1  F2  G  H  K
 M  N  R  R3  R4  R5  R6  S
 T  V  W  Y
Parking locations

 Air  AvFlight  C10  C11  C12  C14  C15  C18
 C19  C20  C21  C22  C23  C24  C25  C9
 Cargo  D27  D30  D35  D36  D39  D41  D42
 D43  D44  D45  D45A  D46  D47  D48  D51
 D52A  D52B  D53  D54  D55  D56  East  FRE
 Freight  International  Johnson  Signature  Small  West  Wisconsin

Nearby beacons

codeidentifierdistbearingfrequency
HRK(RACINE) DME11.1154°117.70
LJT(MILWAUKEE) DME12322°115.65
RAPASER (RACINE) NDB15.2180°206
BAEBADGER (MILWAUKEE) VOR/DME20295°116.40
ENWDME20.3185°109.20
BUU(BURLINGTON) DME23.1238°114.50
UGWAUKE (CHICAGO/WAUKEGAN) NDB28.7168°379
BJBWEST BEND VOR30.7335°109.80
RYVROCK RIVER (WATERTOWN) NDB38.8286°371
OBKNORTHBROOK VOR/DME43184°113
UNUJUNEAU NDB45.9302°344
FAH(SHEBOYGAN) DME504°110
GCODME56.6180°108.25
OSPOBER (OSHKOSH) NDB63.1325°395

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
ALL
 UECKR661mi155°
 ACCRA561mi187°
RW01 (ALL)
 MKE711mi151°
RW07 (ALL)
 MKE711mi151°
RW13
 MKE711mi151°
RW19 (ALL)
 MKE711mi151°
RW25 (ALL)
 MKE711mi151°
RW31
 MKE711mi151°

STAR starting pointsdistanceinbound heading
ALL
 GOPAC223.877°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW01LBAE (115°)BAE
JUTAX (28mi, 137°) 2700ft
JUTAX (turn) 2700ft
RW01LWIPED (50°)WIPED
JUTAX (9mi, 89°) 2700ft
 RNAVJUTAX 2700ft
CUTMO (6mi, 10°) 2600ft
KMKE (6mi, 8°) 760ft
(5313mi, 116°) 1130ft
BAE (5330mi, 296°) 2900ft
BAE (turn)
RW01RBAE (115°)BAE
HARIR (27mi, 136°) 2700ft
HARIR (turn) 2700ft
RW01RWIPED (50°)WIPED
HARIR (9mi, 86°) 2700ft
 RNAVHARIR 2700ft
FEKAR (7mi, 12°) 2300ft
KMKE (5mi, 4°) 723ft
(5313mi, 116°) 928ft
CUSIT (5311mi, 296°) 2900ft
CUSIT (turn)
RW07LBAE (115°)BAE
CIKEM (15mi, 155°) 2900ft
RW07LWIPED (50°)WIPED
CIKEM (9mi, 346°) 2900ft
 RNAVCIKEM 2900ft
FOGBI (7mi, 76°) 2500ft
HUBAN (2mi, 76°) 1740ft
KMKE (3mi, 89°) 726ft
(5313mi, 116°) 922ft
FETIX (5303mi, 296°) 2900ft
FETIX (turn)
RW07RYBALMS (91°)BALMS 5400ft
HAXUT (6mi, 106°) 3500ft
IRONY (2mi, 91°) 2800ft
RW07RYBONOT (77°)BONOT 4800ft
JANSI (5mi, 76°) 3200ft
IRONY (1mi, 76°) 2800ft
RW07RYHONUR (358°)HONUR 7000ft
GAUSS (2mi, 256°) 6500ft
SNAPS (3mi, 256°) 6000ft
JITNU (turn) 5700ft
CEMAX (3mi, 284°) 4500ft
JANSI (3mi, 25°) 3200ft
IRONY (1mi, 76°) 2800ft
RW07RYZUGUN (125°)ZUGUN 6000ft
HARGU (4mi, 256°) 4900ft
WIDOS (3mi, 217°) 3800ft
IRONY (3mi, 112°) 2800ft
 RNAVIRONY 2800ft
WALUM (3mi, 76°) 1800ft
KMKE (4mi, 80°) 779ft
FAHEY (6mi, 74°)
CULEK (7mi, 40°)
PROOT (4mi, 349°) 3700ft
PROOT (turn)
RW13BAE (115°)BAE
CEXIS (10mi, 103°) 2700ft
RW13ZAMIN (167°)ZAMIN
CEXIS (8mi, 231°) 2700ft
 RNAVCEXIS 2700ft
GUGGE (5mi, 124°) 2300ft
FIKUP (3mi, 124°) 1360ft
KMKE (3mi, 141°) 724ft
(5313mi, 116°) 971ft
DUSAY (5305mi, 296°) 2900ft
DUSAY (turn)
RW19LBAE (115°)BAE
FIBSO (14mi, 74°) 2900ft
CUSIT (6mi, 95°) 2900ft
 RNAVCUSIT 2900ft
DELEY (9mi, 190°) 2500ft
HERUL (3mi, 190°) 1620ft
KMKE (4mi, 196°) 720ft
(5313mi, 116°) 1600ft
BAE (5330mi, 296°) 2900ft
BAE (turn)
RW19RGOMPE (143°)GOMPE
ADELE (11mi, 95°) 2900ft
RW19RHAGIN (233°)HAGIN
ADELE (11mi, 275°) 2900ft
 RNAVADELE 2900ft
OMOGE (7mi, 190°) 2800ft
BAYZE (4mi, 190°) 1540ft
KMKE (4mi, 193°) 725ft
(5313mi, 116°) 2000ft
BAE (5330mi, 296°) 2800ft
BAE (turn)
RW25LYCITKI (255°)CITKI 4600ft
FIKIT (4mi, 256°) 3400ft
FAHEY (3mi, 256°) 2500ft
RW25LYEGGED (270°)EGGED 4300ft
RALTE (4mi, 293°) 3100ft
FAHEY (2mi, 275°) 2500ft
RW25LYOCEBE (300°)OCEBE 6000ft
BUMRE (3mi, 76°) 5000ft
AXIOM (3mi, 38°) 3700ft
FAHEY (3mi, 293°) 2500ft
RW25LYUNWED (179°)UNWED 6000ft
BETTA (4mi, 76°) 4700ft
BOCCI (4mi, 110°) 3500ft
FAHEY (3mi, 214°) 2500ft
 RNAVFAHEY 2500ft
KMKE (6mi, 254°) 717ft
IRONY (7mi, 259°)
HUVED (10mi, 339°)
PROOT (19mi, 81°) 3700ft
PROOT (turn)
RW25LZBRANS (220°)BRANS
CITKI (11mi, 156°) 2900ft
RW25LZFITGU (285°)FITGU
CITKI (11mi, 336°) 2900ft
 RNAVCITKI 2900ft
FAHEY (7mi, 256°) 2500ft
KMKE (6mi, 254°) 717ft
(5313mi, 116°) 973ft
OMTOE (5323mi, 296°)
BAE (15mi, 325°) 2900ft
BAE (turn)
RW25RPROOT (225°)PROOT
FETIX (8mi, 166°) 2900ft
RW25RUHEFY (280°)UHEFY
FETIX (8mi, 336°) 2900ft
 RNAVFETIX 2900ft
JEPSA (5mi, 256°) 2300ft
KMKE (6mi, 249°) 717ft
(5313mi, 116°) 1080ft
CIKEM (5325mi, 296°) 2900ft
CIKEM (turn)
RW31JUVAD (271°)JUVAD
DUSAY (8mi, 231°) 2900ft
RW31ZOLBO (342°)ZOLBO
DUSAY (8mi, 51°) 2900ft
 RNAVDUSAY 2900ft
GERLE (5mi, 304°) 2300ft
KMKE (5mi, 295°) 724ft
(5313mi, 116°) 948ft
CEXIS (5320mi, 296°) 2900ft
CEXIS (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
GOPAC2LEEDNVHFright181 (1)°DME 10.0miICAO rules
GOPAC2ZOWROVHFright273 (93)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
