Airports for X-Plane

Hamilton - Hamilton Muni

Airport details

CountryUnited States of America
StateTexas
RegionK4
AirspaceFt Worth Ctr
MunicipalityHamilton
Elevation1296ft (395m)
TimezoneGMT -6
Coordinates31.66592, -98.14864
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKMNZ
IATA coden/a
FAA codeMNZ

Communication

Hamilton Muni CTAF/UNICOM122.700
Hamilton Muni GRAY Approach/Departure120.075

Runway info

Runway 18 / 36
 length1525m (5003ft)
 bearing190° / 10°
 width23m (75ft)
 surfaceasphalt

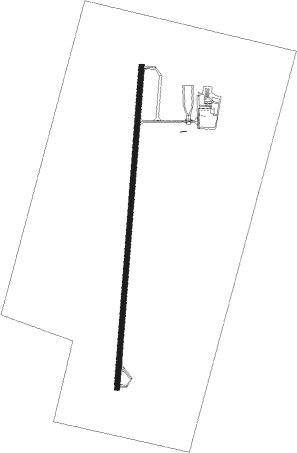

Airport layout


Parking locations

 Ramp

Nearby beacons

codeidentifierdistbearingfrequency
AGJGOOCH SPRINGS VORTAC28.8179°112.50
JENGLEN ROSE TACAN32.729°115
GRKGRAY (FORT HOOD) VOR/DME41.7152°111.80
BWDBROWNWOOD VOR/DME43.4286°108.60
ILIRESH (KILLEEN) NDB44.6146°278
ACTWACO VORTAC44.990°115.30
TPLDME46.1122°110.40
LLOLLANO VORTAC61.6216°108.20

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW18BUILT (93°)BUILT
ULIGY (14mi, 45°) 3600ft
ULIGY (turn) 3600ft
RW18SONET (265°)SONET
MEZXI (22mi, 286°) 3600ft
ULIGY (5mi, 278°) 3600ft
 RNAVULIGY 3600ft
FENIV (7mi, 191°) 2500ft
KUYNU (1mi, 191°) 2040ft
KMNZ (3mi, 190°) 1340ft
(5821mi, 108°) 1555ft
USXEL (5824mi, 288°) 3100ft
USXEL (turn)
RW36AGJ (359°)AGJ
USXEL (19mi, 353°) 3100ft
RW36BUILT (93°)BUILT
USXEL (12mi, 149°) 3100ft
USXEL (turn) 3100ft
 RNAVUSXEL 3100ft
UDOBY (6mi, 10°) 2600ft
ZUBVA (2mi, 10°) 2040ft
KMNZ (3mi, 10°) 1340ft
(5821mi, 108°) 1554ft
ULIGY (5819mi, 288°) 3600ft
ULIGY (turn)
