Airports for X-Plane

Madison - Dane County Regl

Airport details

CountryUnited States of America
StateWisconsin
RegionK5
AirspaceChicago Ctr
MunicipalityMadison
Elevation887ft (270m)
TimezoneGMT -6
Coordinates43.13988, -89.33751
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKMSN
IATA codeMSN
FAA codeMSN

Communication

Dane County Regl ATIS124.650
Dane County Regl UNICOM122.950
Dane County Regl CTAF119.300
Dane County Regl MADISON Clearance DEL121.625
Dane County Regl MADISON Ground Control121.900
Dane County Regl MADISON Tower119.300
Dane County Regl MADISON Approach120.100
Dane County Regl MADISON Departure120.100

Approach frequencies

ILS-cat-IIIRW36110.118.00mi
ILS-cat-IIRW18110.118.00mi
ILS-cat-IRW21111.5518.00mi
3° GSRW21111.5518.00mi
3° GSRW18110.118.00mi
3° GSRW36110.118.00mi
Nearby Points of Interest:
Lake View Sanatorium
-
Robert M. LaFollette House
-
Simeon Mills House
-
Elmside Park Mounds
-
Mills Woods Mound
-
Tenney Park – Yahara River Parkway
-
Sherman Avenue Historic District
-
Marquette Bungalows Historic District
-
Adam and Mary Smith House
-
Louis Hirsig House
-
Bascom B. Clarke House
-
Orton Park Historic District
-
Curtis–Kittleson House
-
George A. Lougee House
-
Adolph H. Kayser House
-
William T. Leitch House
-
Lincoln School
-
Biederstaedt Grocery
-
William Collins House
-
Jenifer-Spaight Historic District
-
Badger State Shoe Company building
-
City Market
-
Timothy C. and Katherine McCarthy House
-
East Dayton Street Historic District
-
Miller House

Runway info

Runway 18 / 36
 length2748m (9016ft)
 bearing183° / 3°
 width46m (151ft)
 surfaceconcrete
 displ threshold122m (400ft) / 301m (988ft)
 blast zone183m (600ft) / 9m (30ft)
Runway 3 / 21
 length2195m (7201ft)
 bearing37° / 217°
 width46m (151ft)
 surfaceconcrete
 displ threshold131m (430ft) / 0m (0ft)
Runway 14 / 32
 length1781m (5843ft)
 bearing128° / 308°
 width46m (151ft)
 surfaceconcrete
 displ threshold146m (479ft) / 0m (0ft)
 blast zone0m (0ft) / 15m (49ft)

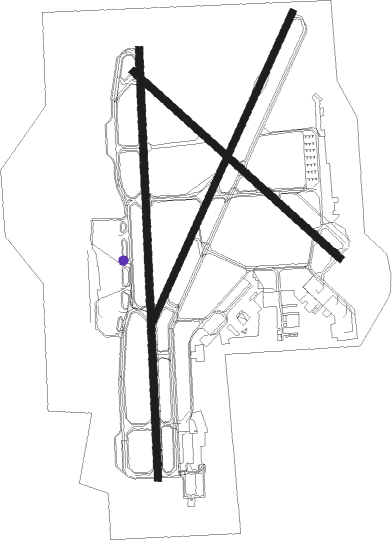

Airport layout - taxiway location L3


Taxiway locations

 A  A1  A3  A4  A5  A6  B  B1
 B3  B4  B6  B7  C  D  E  H
 J  L1  L2  L3  L4  L5
Parking locations

 ANG  Cargo  East  Gate  South  Wisconsin

Nearby beacons

codeidentifierdistbearingfrequency
MSNMADISON VORTAC0.3336°108.60
RYVROCK RIVER (WATERTOWN) NDB26.887°371
DLLDELLS (BARABOO) VORTAC30.9314°117
UNUJUNEAU NDB32.766°344
LNRROCK DME36281°116.05
JVLJANESVILLE VOR/DME36.4158°114.30
RFDDME55.2171°110.80
OSPOBER (OSHKOSH) NDB55.647°395
OSHOSHKOSH VORTAC61.343°116.75
DAFNECEDAH NDB62.7320°233
VOKVOLK (CAMP DOUGLAS) TACAN62.7311°110.40

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03WIROD (37°)WIROD 3600ft
 RNAVWIROD 3600ft
ZUSNA (5mi, 37°) 2700ft
ZEPUD (3mi, 37°) 2600ft
MIBPU (3mi, 37°) 1540ft
KMSN (2mi, 36°) 909ft
(5376mi, 116°) 1060ft
FONUV (5370mi, 296°) 3600ft
FONUV (turn)
RW14MSN (156°)MSN
SIDCO (11mi, 308°) 3200ft
SIDCO (turn) 3200ft
RW14NEGUS (101°)NEGUS
SIDCO (14mi, 83°) 3200ft
RW14WREST (172°)WREST
SIDCO (15mi, 208°) 3200ft
 RNAVSIDCO 3200ft
UFDIM (6mi, 127°) 2500ft
HIREX (3mi, 128°) 1500ft
KMSN (2mi, 133°) 914ft
(5376mi, 116°) 1059ft
CINOT (5367mi, 296°) 3000ft
CINOT (turn)
RW18AYECO (182°)AYECO 3000ft
RW18DLL (134°)DLL
AYECO (22mi, 115°) 3000ft
RW18RANDO (222°)RANDO
AYECO (16mi, 246°) 3000ft
RW18WREST (172°)WREST
AYECO (11mi, 161°) 3000ft
 RNAVAYECO 3000ft
GATNE (4mi, 183°) 2700ft
RUKIY (3mi, 183°) 2500ft
KMSN (5mi, 180°) 916ft
(5376mi, 116°) 1064ft
DEKEY (5377mi, 296°) 3000ft
DEKEY (turn)
RW21FONUV (217°)FONUV 3600ft
 RNAVFONUV 3600ft
HEVUS (5mi, 217°) 2700ft
JAPRO (3mi, 217°) 2500ft
YARUT (3mi, 217°) 1540ft
KMSN (3mi, 218°) 940ft
(5376mi, 116°) 1087ft
WIROD (5383mi, 296°) 3600ft
WIROD (turn)
RW32MSN (156°)MSN
CINOT (14mi, 127°) 3000ft
CINOT (turn) 3000ft
RW32OMONE (9°)OMONE
CINOT (17mi, 53°) 3000ft
RW32WAITS (271°)WAITS
CINOT (23mi, 253°) 3000ft
 RNAVCINOT 3000ft
NUXMU (8mi, 308°) 2600ft
PEKDE (3mi, 308°) 1480ft
KMSN (2mi, 303°) 918ft
(5376mi, 116°) 1232ft
SIDCO (5384mi, 296°) 3200ft
SIDCO (turn)
RW36DEBOW (309°)DEBOW
COBLE (20mi, 292°) 3000ft
DEKEY (6mi, 295°) 3000ft
RW36DEKEY (4°)DEKEY 3000ft
RW36JVL (338°)JVL
OFAGO (17mi, 328°) 3100ft
DEKEY (9mi, 328°) 3000ft
RW36THEBO (63°)THEBO
WENAT (13mi, 113°) 3000ft
DEKEY (6mi, 40°) 3000ft
 RNAVDEKEY 3000ft
FELIL (4mi, 3°) 2700ft
OZMIX (2mi, 3°) 2500ft
ZIMIT (3mi, 3°) 1420ft
KMSN (2mi, 8°) 920ft
(5376mi, 116°) 1062ft
AYECO (5376mi, 296°) 3000ft
AYECO (turn)
