Airports for X-Plane

New Orleans - Armstrong New Orleans Intl

Airport details

CountryUnited States of America
StateLouisiana
RegionK4
AirspaceHouston Oceanic Ctr
MunicipalityKenner
Elevation2ft (1m)
TimezoneGMT -6
Coordinates29.99221, -90.26854
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeKMSY
IATA codeMSY
FAA codeMSY

Communication

Armstrong New Orleans Intl ATIS127.550
Armstrong New Orleans Intl UNICOM122.950
Armstrong New Orleans Intl Clearance DEL126.575
Armstrong New Orleans Intl Ground Control121.900
Armstrong New Orleans Intl Tower119.500
Armstrong New Orleans Intl NEW ORLEANS Approach/Departure125.500
Armstrong New Orleans Intl NEW ORLEANS Approach/Departure133.150

Approach frequencies

LOCRW20111.718.00mi
ILS-cat-IIIRW11109.918.00mi
ILS-cat-IRW29109.918.00mi
ILS-cat-IRW02111.718.00mi
3° GSRW29109.918.00mi
3° GSRW02111.718.00mi
2.8° GSRW11109.918.00mi
Nearby Points of Interest:
Raziano House
-
Kenner Town Hall
-
LaBranche Plantation Dependency
-
Magnolia Lane Plantation
-
Ormond Plantation House
-
Texas and New Orleans 745
-
Homeplace Plantation House
-
Longue Vue House and Gardens
-
Dorvin House
-
L.J. Bernard Hardware Store
-
Fourth Church of Christ, Scientist
-
American Chicle Company Building
-
Odd Fellows Rest Cemetery
-
Huey P. Long Mansion
-
New Canal Light
-
Blue Plate Building
-
Louisiana Coca-Cola Bottling Company Plant
-
Bohn Motor Company Automobile Dealership
-
St. Charles Streetcar Line
-
Parkview Historic District
-
Aldrich–Genella House
-
Gen. Beauregard Equestrian Statue
-
Pitot House
-
St. Peter A.M.E. Church
-
Magnolia Projects

Runway info

Runway 11 / 29
 length3076m (10092ft)
 bearing104° / 284°
 width46m (150ft)
 surfaceconcrete
 displ threshold0m (0ft) / 93m (305ft)
 blast zone122m (400ft) / 38m (125ft)
Runway 2 / 20
 length2140m (7021ft)
 bearing18° / 198°
 width46m (150ft)
 surfaceconcrete
 blast zone183m (600ft) / 183m (600ft)

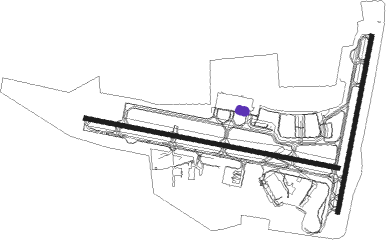

Airport layout - parking location Heli


Taxiway locations

 A  B  C  D  E  F  G  H
 S  T  U  W
Parking locations

 Atlantic  DHL  East  Fedex  Gate  General  Heli  Signature
 SouthWest  West

Nearby beacons

codeidentifierdistbearingfrequency
MSKINTE (NEW ORLEANS) NDB7.1284°338
HRVHARVEY (NEW ORLEANS) VORTAC16.2118°114.10
RQRRESERVE VOR/DME17.5287°110.80
TBDTIBBY (THIBODAUX) VOR/DME35.2240°112
HPANGER (HAMMOND) NDB37.7346°212
PCUPICAYUNE VOR/DME44.143°113.95
LEVLEEVILLE (GRAND ISLE) VORTAC49.8169°113.50
HSHANCO (BAY ST LOUIS) NDB50.461°221
GVBBOGALUSA NDB57.425°353
BTRUNDI (BATON ROUGE) NDB60.3302°284

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
STAR starting pointsdistanceinbound heading
ALL
 OLEDD418.440°
 AWDAD136.3100°
 RYTHM433.0187°
 SLIDD229.6252°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02OLEDD (40°)OLEDD
ROYUL (9mi, 77°) 2000ft
 RNAVROYUL 2000ft
POVVI (7mi, 18°) 2000ft
KMSY (6mi, 8°) 58ft
(5419mi, 108°) 379ft
PEPUE (5417mi, 288°)
SNAKI (18mi, 78°) 3000ft
SNAKI (turn)
RW11-YRQR (107°)RQR
FIGUR (4mi, 117°) 2000ft
RW11-YTBD (60°)TBD
FIGUR (28mi, 38°) 2000ft
 RNAVFIGUR 2000ft
KUSTE (7mi, 103°) 2000ft
WEKTA (5mi, 104°) 500ft
KMSY (2mi, 105°) 59ft
(5419mi, 108°) 204ft
ZUBEL (5411mi, 288°)
SAFES (9mi, 196°) 2000ft
SAFES (turn)
RW11-ZRQR (107°)RQR
FIGUR (4mi, 117°) 2000ft
RW11-ZTBD (60°)TBD
FIGUR (28mi, 38°) 2000ft
 RNAVFIGUR 2000ft
KUSTE (7mi, 103°) 2000ft
KMSY (7mi, 104°) 59ft
ZUBEL (9mi, 103°)
SAFES (9mi, 196°) 2000ft
SAFES (turn)
RW20-YSNAKI (247°)SNAKI 4000ft
RAYOP (16mi, 282°) 4000ft
 RNAVRAYOP 4000ft
JASPO (7mi, 198°) 2000ft
KMSY (7mi, 206°) 50ft
(5419mi, 108°) 249ft
POLIY (5420mi, 288°)
SAFES (8mi, 106°) 2000ft
SAFES (turn)
RW20-ZSNAKI (247°)SNAKI 4000ft
RAYOP (16mi, 282°) 4000ft
 RNAVRAYOP 4000ft
JASPO (7mi, 198°) 2000ft
KMSY (7mi, 206°) 50ft
POLIY (8mi, 190°)
SAFES (8mi, 106°) 2000ft
SAFES (turn)
RW29-YHRV (298°)HRV
HELMT (6mi, 334°) 3000ft
 RNAVHELMT 3000ft
BRRES (5mi, 284°) 2000ft
WIVUR (4mi, 284°) 640ft
KMSY (3mi, 282°) 54ft
(5419mi, 108°) 202ft
LETSE (5423mi, 288°)
RQR (14mi, 287°) 3000ft
RQR (turn)
RW29-ZHRV (298°)HRV
HELMT (6mi, 334°) 3000ft
 RNAVHELMT 3000ft
BRRES (5mi, 284°) 2000ft
KMSY (7mi, 283°) 54ft
LETSE (4mi, 285°)
RQR (14mi, 287°) 3000ft
RQR (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AWDAD1AWDADVHFright273 (93)°1.0min timedICAO rules
OLEDD4TBDNDBright268 (88)°1.0min timedICAO rules
RYTHM4OYSTYVHFright353 (173)°< 17999ft1.0min timedICAO rules
RYTHM4ZYDCOVHFright353 (173)°< 17999ft1.0min timedICAO rules
SLIDD2CLERYVHFright65 (245)°< 17999ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
