Airports for X-Plane

Norfolk - Naval Air Station Norfolk

Airport details

CountryUnited States of America
StateVirginia
RegionK6
AirspaceWashington Ctr
MunicipalityNorfolk
Elevation15ft (5m)
TimezoneGMT -5
Coordinates36.93843, -76.29201
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKNGU
IATA codeNGU
FAA codeNGU

Communication

Naval Air Station Norfolk ATIS118.425
Naval Air Station Norfolk Clearance DEL120.700
Naval Air Station Norfolk CHAMBERS Ground Control121.800
Naval Air Station Norfolk CHAMBERS Tower124.300
Naval Air Station Norfolk CHAMBERS Tower126.375
Naval Air Station Norfolk Approach118.900
Naval Air Station Norfolk Departure125.200

Approach frequencies

ILS-cat-IRW10108.9518.00mi
3° GSRW10108.9518.00mi

Runway info

Runway 10 / 28
 length2544m (8346ft)
 bearing90° / 270°
 width61m (200ft)
 surfaceasphalt
 displ threshold96m (315ft) / 300m (984ft)
 blast zone223m (732ft) / 3m (10ft)

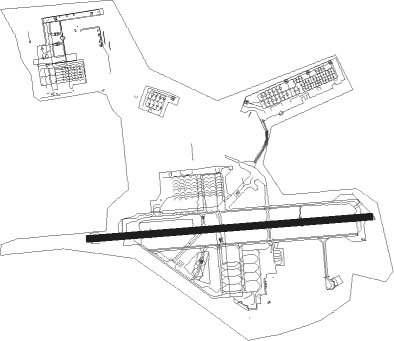

Airport layout


Taxiway locations

 A  F  S
Parking locations

 Gate  Helo  HSC-28  Loading  Norfolk  VAW121  VAW21-1  VAW21-2
 VAW21-3

Nearby beacons

codeidentifierdistbearingfrequency
NGUCHAMBERS (NORFOLK) TACAN0.784°113.95
ORFNORFOLK VORTAC5.2117°116.90
ORINGLE (NORFOLK) NDB6.1157°329
LFILANGLEY (HAMPTON) TACAN9.4335°112.30
NTUOCEANA TACAN14114°116.60
NFECHESAPEAKE TACAN16.2147°108.25
CCVCAPE CHARLES VORTAC28.336°112.20
AKQWAKEFIELD NDB34.1274°274
HCMHARCUM VORTAC36.6321°108.80
FKNFRANKLIN VORTAC37.1253°110.60
LLWWOODVILLE (ELIZABETH CITY) NDB40.5181°254
ECGELIZABETH CITY VOR/DME41.2170°112.50
CVICOFIELD VORTAC43.9226°114.60
HPWHOPEWELL VORTAC45.8295°112

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
STAR starting pointsdistanceinbound heading
ALL
 DRONE230.643°
 TERKS2146.1109°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10HCM (141°)HCM 2300ft
OGTOE (18mi, 188°) 2300ft
NONNU (18mi, 131°) 2300ft
RW10NONNU (90°)NONNU 2300ft
 RNAVNONNU 2300ft
HISAM (5mi, 90°) 1500ft
KNGU (5mi, 89°) 63ft
(4749mi, 116°) 800ft
GLEEP (4740mi, 296°) 3000ft
GLEEP (turn) 4000ft
RW28CCV (216°)CCV 2300ft
ELMER (10mi, 181°) 2300ft
MIMAE (14mi, 195°) 2300ft
RW28SCHOL (247°)SCHOL 2300ft
MIMAE (22mi, 235°) 2300ft
 RNAVMIMAE 2300ft
MESLE (7mi, 270°) 1100ft
KNGU (4mi, 271°) 57ft
(4749mi, 116°) 415ft
NONNU (4759mi, 296°) 3000ft
NONNU (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DRONE2DRONEVHFright233 (53)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
