El Centro - El Centro Naf

Airport details

CountryUnited States of America
StateCalifornia
RegionK2
AirspaceLos Angeles Ctr
MunicipalityCAL Fire San Diego Unit
Elevation-41ft (-12m)
TimezoneGMT -8
Coordinates32.82663, -115.66856
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKNJK
IATA codeNJK
FAA codeNJK

Communication

El Centro NAF El Centro ground121.900
El Centro NAF El Centro Tower119.100
Nearby Points of Interest:
El Centro Main Post Office
-
Calexico Carnegie Library
-
Desert View Tower
-
Algodones Dunes

Runway info

Runway 12 / 30
 length2082m (6831ft)
 bearing130° / 310°
 width61m (200ft)
 surfaceasphalt
Runway 8 / 26
 length2891m (9485ft)
 bearing90° / 270°
 width61m (200ft)
 surfaceconcrete

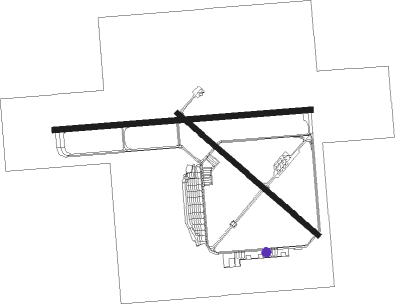

Airport layout - parking location T-45


Parking locations

 AMMO  BLUE  HELICOPTER  MAIN  T-45

Nearby beacons

codeidentifierdistbearingfrequency
NJKEL CENTRO TACAN0.7292°111
IPLIMPERIAL VORTAC9.3116°115.90
MXLMEXICALI VOR/DME24.7114°115
JLIJULIAN VORTAC49.9289°114
TRMTHERMAL VORTAC54.1328°116.20
BLHBLYTHE VORTAC64.950°117.40

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW26ARGUS (282°)ARGUS 3600ft
BEENY (3mi, 269°) 2100ft
RW26BEENY (284°)BEENY 2100ft
 RNAVBEENY 2100ft
BAGSE (8mi, 303°) 1700ft
CUNSA (5mi, 270°) 1100ft
KNJK (4mi, 268°) 4ft
(6687mi, 106°) 500ft
BEENY (6674mi, 286°) 2100ft
BEENY (turn) 4000ft
RW30ARGUS (282°)ARGUS 3600ft
BEENY (3mi, 269°) 2100ft
RW30BEENY (284°)BEENY 2100ft
 RNAVBEENY 2100ft
IPL (7mi, 269°) 1500ft
LAMAW (5mi, 285°) 1100ft
KNJK (4mi, 310°) 8ft
(6687mi, 106°) 500ft
BEENY (6674mi, 286°) 2100ft
BEENY (turn) 4000ft
