San Diego - Miramar Mcas
Airport details
| Country | United States of America |
| State | California |
| Region | K2 |
| Airspace | Los Angeles Ctr |
| Municipality | San Diego |
| Elevation | 478ft (146m) |
| Timezone | GMT -8 |
| Coordinates | 32.86618, -117.12862 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | KNKX |
| IATA code | NKX |
| FAA code | NKX |
Communication
| Miramar MCAS Clearance DEL | 125.975 |
| Miramar MCAS Ground Control | 128.625 |
| Miramar MCAS Tower | 135.200 |
| Miramar MCAS SOCAL Approach | 132.200 |
| Miramar MCAS SOCAL Departure | 132.200 |
| Miramar MCAS SOCAL Departure | 119.600 |
Approach frequencies
| ILS-cat-I | RW24R | 111.15 | 18.00mi |
| 3° GS | RW24R | 111.15 | 18.00mi |

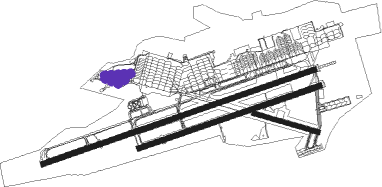

Runway info
Runway 10 / 28  | ||
| length | 852m (2795ft) | |
| bearing | 107° / 287° | |
| width | 60m (197ft) | |
| surface | concrete | |
| Runway 6L / 24R | ||
| length | 3652m (11982ft) | |
| bearing | 78° / 258° | |
| width | 61m (200ft) | |
| surface | concrete | |
| blast zone | 48m (157ft) / 58m (190ft) | |
| Runway 6R / 24L | ||
| length | 2435m (7989ft) | |
| bearing | 78° / 258° | |
| width | 61m (200ft) | |
| surface | concrete | |
| blast zone | 42m (138ft) / 57m (187ft) | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| NKX | MIRAMAR (SAN DIEGO) TACAN | 1.3 | 278° | 109.60 |
| MZB | MISSION BAY (SAN DIEGO) VORTAC | 7 | 229° | 117.80 |
| NZY | NORTH ISLAND (SAN DIEGO) TACAN | 10.7 | 208° | 117 |
| PGY | POGGI (SAN DIEGO) VORTAC | 17.1 | 150° | 116.45 |
| NRS | IMPERIAL BEACH TACAN | 18.1 | 176° | 109.20 |
| TIJ | TIJUANA VOR/DME | 21.4 | 152° | 116.50 |
| OCN | OCEANSIDE VORTAC | 26.7 | 322° | 115.30 |
| NFG | CAMP PENDLETON (OCEANSIDE TACAN | 27.7 | 328° | 111.80 |
| JLI | JULIAN VORTAC | 31.9 | 63° | 114 |
| HDF | HOMELAND (RIVERSIDE) VOR | 54.7 | 356° | 113.40 |
| ELB | EL TORO (SANTA ANA) VOR/DME | 57.2 | 323° | 117.20 |
| TRM | THERMAL VORTAC | 66.7 | 52° | 116.20 |
| SLI | SEAL BEACH (LOS ALAMITOS) VORTAC | 72 | 315° | 115.70 |
Departure and arrival routes
| Transition altitude | 18000ft |
| Transition level | 18000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW06 (ALL) | |||
| VITKO3 | 67mi | 52° | |
| RW24 (ALL) | |||
| LAKEE3 | 67mi | 52° | |
| SWOLF9 | 26mi | 246° | |
| REDIN4 | 15mi | 287° | |
| TINNY4 | 165mi | 302° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW24L | JLI (243°) | JLI 8000ft HERUD (10mi, 234°) 6800ft POCOB (10mi, 234°) 4400ft |
| RNAV | POCOB 4400ft TEBGE (4mi, 258°) 3200ft RAIDE (2mi, 258°) 2600ft OCABO (4mi, 258°) 1460ft NABSE (turn) 1140ft KNKX (2mi, 252°) 523ft (6758mi, 106°) 877ft HUVEL (6761mi, 286°) REDIN (11mi, 296°) 3000ft REDIN (turn) 5000ft | |
| RW24R | JLI (243°) | JLI 8000ft WATOX (10mi, 235°) 6800ft SIMBE (10mi, 235°) 4400ft |
| RNAV | SIMBE 4400ft UYOCA (4mi, 258°) 3200ft CINUS (2mi, 258°) 2600ft FOSEB (4mi, 258°) 1460ft KNKX (3mi, 252°) 528ft (6758mi, 106°) 877ft HOTIG (6761mi, 286°) REDIN (11mi, 296°) 3000ft REDIN (turn) 5000ft |
