Orange Grove - Orange Grove Nalf

Airport details

CountryUnited States of America
StateTexas
RegionK4
AirspaceHouston Oceanic Ctr
MunicipalityJim Wells County
Elevation255ft (78m)
TimezoneGMT -6
Coordinates27.89682, -98.04356
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKNOG
IATA coden/a
FAA codeNOG

Communication

Orange Grove Nalf Tower128.400
Orange Grove Nalf KINGSVILLE Departure119.900

Approach frequencies

ILS-cat-IRW13110.518.00mi
3° GSRW13110.518.00mi
Nearby Points of Interest:
King Ranch
-
John B. Ragland Mercantile Company Building

Runway info

Runway 1 / 19
 length2447m (8028ft)
 bearing16° / 196°
 width61m (200ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)
Runway 13 / 31
 length2441m (8009ft)
 bearing131° / 311°
 width61m (200ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)

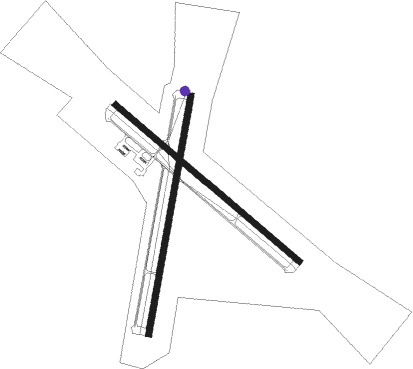

Airport layout - taxiway location C


Taxiway locations
Parking locations

Nearby beacons

codeidentifierdistbearingfrequency
NOGORANGE GROVE TACAN0.1148°133.60
ALIALICE VOR9.5172°114.50
NQIKINGSVILLE TACAN27149°117.80
CRPCORPUS CHRISTI VORTAC31.789°115.50
THXTHREE RIVERS VORTAC36.9350°111.40
NGPTRUAX (CORPUS CHRISTI) TACAN41.7106°114
