Airports for X-Plane

Jacksonville - Albert J Ellis Fld

Airport details

CountryUnited States of America
StateNorth Carolina
RegionK7
AirspaceWashington Ctr
MunicipalityOnslow County
Elevation94ft (29m)
TimezoneGMT -5
Coordinates34.82917, -77.61214
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeKOAJ
IATA codeOAJ
FAA codeOAJ

Communication

Albert J Ellis Fld AWOS 3124.475
Albert J Ellis Fld CTAF/UNICOM123.000
Albert J Ellis Fld WILMINGTON Approach/Departure121.400

Approach frequencies

ILS-cat-IRW05108.718.00mi
3° GSRW05108.718.00mi
Nearby Points of Interest:
Venters Farm Historic District
-
Bank of Onslow and Jacksonville Masonic Temple
-
Eagle Nest
-
Grace Episcopal Church
-
Sanderson House
-
Yopps Meeting House
-
Palo Alto Plantation
-
Foscue Plantation House
-
Bryan-Bell Farm
-
Bryan Lavender House
-
Burgaw Depot
-
Foscue and Simmons Plantations
-
Sloop Point
-
Robert L. Blalock House
-
Baptist Parsonage
-
Cedar Dell
-
Lenoir County Courthouse
-
Kennedy Memorial Home Historic District
-
Harmony Hall
-
Kinston Fire Station-City Hall
-
Queen-Gordon Streets Historic District
-
Kinston Baptist-White Rock Presbyterian Church
-
Mitchelltown Historic District
-
B. W. Canady House
-
American Tobacco Company Prizery

Runway info

Runway 5 / 23
 length2166m (7106ft)
 bearing50° / 230°
 width46m (150ft)
 surfaceasphalt
 blast zone61m (200ft) / 61m (200ft)

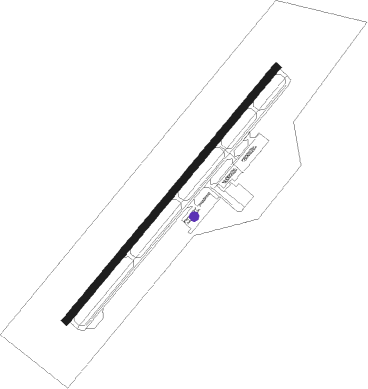

Airport layout - parking location GA3


Parking locations

 GA1  GA2  GA3  GATE1  GATE2  GATE3

Nearby beacons

codeidentifierdistbearingfrequency
OAELLAS (JACKSONVILLE) NDB6.5230°261
NCANEW RIVER TACAN11.2125°115.40
DIWDIXON NDB17.5149°198
ISSTALS (KINSTON) NDB25.2348°276
EWKAFTI (NEW BERN) NDB28.670°362
GMWILZE NDB31.1202°205
ILMWILMINGTON VORTAC31.4209°117
EWNNEW BERN VOR/DME31.567°113.60
ISOKINSTON VORTAC32.66°109.60
GSBSEYMOUR JOHNSON TACAN35.1325°116.50
NKTCHERRY POINT TACAN36.584°112.80
CTZCLINTON NDB37.9281°412
ILAIRLI (WILMINGTON) NDB40.3202°281
RNWCHOCOWINITY NDB47.837°388
AQEALWOOD (GREENVILLE) NDB5415°230
JNJURLY (SMITHFIELD) NDB55.6308°263

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05ILM (29°)ILM
HELNA (17mi, 350°) 2100ft
CUVAL (7mi, 71°) 2100ft
RW05WALLO (98°)WALLO
CUVAL (15mi, 139°) 2100ft
CUVAL (turn) 2100ft
 RNAVCUVAL 2100ft
JUNRA (6mi, 50°) 2100ft
OGOYO (4mi, 50°) 680ft
KOAJ (2mi, 50°) 144ft
(4796mi, 114°) 900ft
CUVAL (4804mi, 294°) 2100ft
CUVAL (turn)
RW23FONPO (230°)FONPO 3100ft
RW23ISO (186°)ISO
ZAMUV (17mi, 174°) 3100ft
FONPO (8mi, 129°) 3100ft
 RNAVFONPO 3100ft
YOTUR (7mi, 230°) 2100ft
ZOTUS (4mi, 230°) 740ft
KOAJ (2mi, 230°) 137ft
(4796mi, 114°) 291ft
CUVAL (4804mi, 294°) 2100ft
CUVAL (turn)
