Airports for X-Plane

Oakland - Metropolitan Oakland Intl

Airport details

CountryUnited States of America
StateCalifornia
RegionK2
AirspaceOakland Ctr
MunicipalityOakland
Elevation4ft (1m)
TimezoneGMT -8
Coordinates37.72126, -122.22115
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKOAK
IATA codeOAK
FAA codeOAK

Communication

Metropolitan Oakland Intl KOAK ATIS133.775
Metropolitan Oakland Intl METRO OAKLAND INTL UNIC122.950
Metropolitan Oakland Intl OAKLAND CLD121.100
Metropolitan Oakland Intl OAKLAND Ground Control NORTH121.900
Metropolitan Oakland Intl OAKLAND Ground Control SOUTH121.750
Metropolitan Oakland Intl OAKLAND Tower SOUTH127.200
Metropolitan Oakland Intl OAKLAND Tower NORTH118.300
Metropolitan Oakland Intl ApproachCH W135.100
Metropolitan Oakland Intl ApproachCH124.525
Metropolitan Oakland Intl ApproachCH125.350
Metropolitan Oakland Intl ApproachCH S135.650
Metropolitan Oakland Intl ApproachCH128.575
Metropolitan Oakland Intl ApproachCH E124.800
Metropolitan Oakland Intl ApproachCH128.325
Metropolitan Oakland Intl ApproachCH134.500
Metropolitan Oakland Intl ApproachCH133.950
Metropolitan Oakland Intl ApproachCH120.900
Metropolitan Oakland Intl Departure W135.100
Metropolitan Oakland Intl Departure E135.400
Metropolitan Oakland Intl Departure N127.000
Metropolitan Oakland Intl Departure NW120.900

Approach frequencies

ILS-cat-IIIRW30108.718.00mi
ILS-cat-IRW12111.918.00mi
ILS-cat-IRW28R109.918.00mi
3° GSRW30108.718.00mi
3° GSRW28R109.918.00mi
2.7° GSRW12111.918.00mi
Nearby Points of Interest:
Masonic Temple and Lodge
-
Park Street Historic Commercial District
-
Peralta Home
-
Alameda Free Library
-
Rancho San Antonio
-
Croll Building
-
San Francisco Bay
-
Alameda High School
-
Alameda Works Shipyard
-
Heinold's First and Last Chance Saloon
-
Women's Athletic Club of Alameda County
-
Meek Mansion
-
Greek Orthodox Church of the Assumption
-
Liberty Hall
-
University High School
-
Moraga Adobe
-
San Francisco–Oakland Bay Bridge
-
USCGC Fir
-
Lydia
-
Maynard Buehler House
-
Thorsen House
-
Berkeley City Club
-
First Unitarian Church
-
Hall of Transportation, Treasure Island
-
Masonic Temple

Runway info

Runway 12 / 30
 length3209m (10528ft)
 bearing124° / 304°
 width46m (151ft)
 surfaceasphalt
 displ threshold0m (0ft) / 35m (115ft)
 blast zone122m (400ft) / 122m (400ft)
Runway 10R / 28L
 length1891m (6204ft)
 bearing108° / 288°
 width46m (151ft)
 surfaceasphalt
 blast zone236m (774ft) / 90m (295ft)
Runway 10L / 28R
 length1660m (5446ft)
 bearing108° / 288°
 width46m (151ft)
 surfaceasphalt
 blast zone120m (394ft) / 81m (266ft)
Runway 15 / 33
 length1030m (3379ft)
 bearing161° / 341°
 width23m (75ft)
 surfaceasphalt
 blast zone0m (0ft) / 15m (49ft)

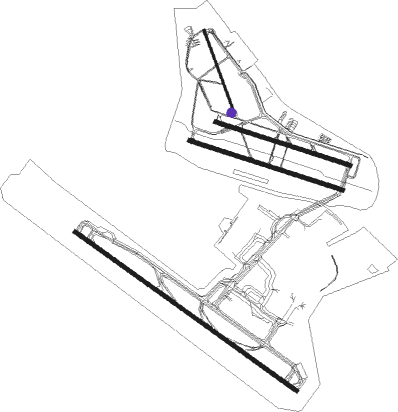

Airport layout - taxiway location 33


Taxiway locations

 33  A  B  C  C1  D  E  F
 G  H  J  K  L  P  R  S
 V  W  W1  W2  W3  W4  W5  W6
 W7
Parking locations

 Aviation  Cargo  Fedex  GA  Gate  General  Kaiser  Landmark
 Surf  Tango  Turner

Nearby beacons

codeidentifierdistbearingfrequency
OAKOAKLAND VOR/DME0.3332°116.80
SFOSAN FRANCISCO VOR/DME9.4236°115.80
SAUSAUSALITO VOR/DME16.4294°116.20
NUQMOFFETT (MOUNTAIN VIEW) TACAN19150°117.60
OSIWOODSIDE VOR/DME19.9190°113.90
CCRCONCORD VOR/DME21.129°117
SJCSAN JOSE VOR/DME24.6141°114.10
LVREIGA (LIVERMORE) NDB25.593°374
SGDSCAGGS ISLAND (NAPA) VORTAC28.4342°112.10
SUUTRAVIS (FAIRFIELD) TACAN3428°116.60
PYEPOINT REYES VOR/DME37.4299°113.70
SACSACRAMENTO VORTAC53.743°115.20
STSROSA DME54.8323°116.15
MCCMC CLELLAN (SACRAMENTO) VOR/DME68.641°109.20

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW10 (ALL)
 SKYL192mi125°
 KATFH395mi138°
RW12
 SKYL192mi125°
 KATFH395mi138°
RW28 (ALL)
 SALAD523mi79°
 SKYL192mi125°
 SUNNE120mi144°
 NUEVO870mi150°
 CNDEL5144mi152°
RW30
 HUSSH263mi68°
 SKYL192mi125°
 SUNNE120mi144°
 NUEVO870mi150°
 CNDEL5144mi152°

STAR starting pointsdistanceinbound heading
ALL
 PIRAT241.354°
 SHARR145.1265°
 PXN691.6305°
RW12
 AANET158.9165°
 BANND255.1268°
 SKIZM258.0301°
RW28 (ALL)
 OAKES255.1268°
 EMZOH324.0293°
RW30
 OAKES255.1268°
 EMZOH324.0293°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10LMICRA (119°)MICRA
COMMO (9mi, 119°) 4000ft
DATTS (5mi, 119°) 3000ft
 RNAVDATTS 3000ft
ENCOL (5mi, 119°) 1800ft
AKEVE (3mi, 118°) 1000ft
JEPAG (3mi, 118°) 201ft
(6904mi, 107°) 409ft
HAYZE (6897mi, 287°) 5200ft
HAYZE (turn)
RW10RMICRA (119°)MICRA
COMMO (9mi, 119°) 4000ft
DATTS (5mi, 119°) 3000ft
 RNAVDATTS 3000ft
ENCOL (5mi, 119°) 1800ft
ALOIN (3mi, 119°) 1000ft
CAXIN (3mi, 119°) 202ft
(6904mi, 107°) 409ft
HAYZE (6897mi, 287°) 5200ft
HAYZE (turn)
RW12-YRAIDR (133°)RAIDR
ALCAT (12mi, 147°) 2700ft
 RNAVALCAT 2700ft
PLAZA (6mi, 124°) 1800ft
ILATE (2mi, 124°) 1080ft
KOAK (4mi, 115°) 64ft
(6903mi, 107°) 209ft
HISIS (6903mi, 287°) 1600ft
DECOT (8mi, 119°) 5400ft
DECOT (turn)
RW12-ZHIRMO (199°)HIRMO 4000ft
FREEM (7mi, 267°) 4000ft
JENAY (3mi, 234°) 3700ft
BEEEJ (1mi, 191°) 3200ft
MNNTY (3mi, 191°) 2400ft
PLAZA (2mi, 154°) 1800ft
RW12-ZNRTHM (127°)NRTHM 5000ft
ALCAT (4mi, 147°) 3600ft
SHNGL (3mi, 124°) 2600ft
PLAZA (3mi, 124°) 1800ft
 RNAVPLAZA 1800ft
KOAK (7mi, 118°) 63ft
(6903mi, 107°) 289ft
HISIS (6903mi, 287°) 1600ft
YICPU (5mi, 124°)
DECOT (3mi, 112°) 5400ft
DECOT (turn) 5400ft
RW28LYBBUBB (278°)BBUBB 5000ft
JUPAP (6mi, 255°) 3700ft
RW28LYCYMBL (292°)CYMBL 5300ft
JUPAP (7mi, 302°) 3700ft
 RNAVJUPAP 3700ft
HEDER (4mi, 288°) 2800ft
VODSY (3mi, 288°) 1900ft
TENIE (3mi, 288°) 1080ft
KOAK (4mi, 284°) 63ft
(6903mi, 107°) 209ft
SOYOK (6905mi, 287°)
SAU (14mi, 294°) 4000ft
SAU (turn)
RW28LZBBUBB (278°)BBUBB 5000ft
JUPAP (6mi, 255°) 3700ft
HEDER (4mi, 288°) 2800ft
RW28LZCYMBL (292°)CYMBL 5300ft
JUPAP (7mi, 302°) 3700ft
HEDER (4mi, 288°) 2800ft
 RNAVHEDER 2800ft
VODSY (3mi, 288°) 1900ft
KOAK (6mi, 286°) 63ft
OPLIE (9mi, 290°)
REBAS (10mi, 3°) 3000ft
REBAS (turn)
RW28RYBBUBB (278°)BBUBB 5000ft
NAGVY (5mi, 249°) 4200ft
RW28RYCYMBL (292°)CYMBL 5300ft
NAGVY (6mi, 307°) 4200ft
 RNAVNAGVY 4200ft
GROVE (3mi, 288°) 3400ft
URZAF (2mi, 288°) 2700ft
NIXDE (2mi, 288°) 2100ft
CUVSA (2mi, 288°) 1500ft
JAPSO (2mi, 288°) 980ft
KOAK (4mi, 281°) 59ft
(6903mi, 107°) 207ft
ZERMO (6908mi, 287°)
REBAS (10mi, 347°) 3000ft
REBAS (turn)
RW28RZBBUBB (278°)BBUBB 5000ft
NAGVY (5mi, 249°) 4200ft
GROVE (3mi, 288°) 3400ft
URZAF (2mi, 288°) 2700ft
NIXDE (2mi, 288°) 2100ft
RW28RZCYMBL (292°)CYMBL 5300ft
NAGVY (6mi, 307°) 4200ft
GROVE (3mi, 288°) 3400ft
URZAF (2mi, 288°) 2700ft
NIXDE (2mi, 288°) 2100ft
 RNAVNIXDE 2100ft
CUVSA (2mi, 288°) 1500ft
KOAK (5mi, 283°) 59ft
ZERMO (6mi, 292°)
REBAS (10mi, 347°) 3000ft
REBAS (turn)
RW30-YFRNNY (306°)FRNNY 4100ft
WUVON (5mi, 304°) 2700ft
RW30-YPARBB (292°)PARBB 4500ft
ZOLUM (4mi, 269°) 3400ft
WUVON (3mi, 276°) 2700ft
 RNAVWUVON 2700ft
MITOE (2mi, 304°) 2000ft
KOAK (7mi, 309°) 64ft
(6903mi, 107°) 209ft
PLAZA (6907mi, 287°)
SAU (10mi, 291°) 4000ft
SAU (turn)
RW30-ZALLXX (267°)ALLXX 5000ft
CRSEN (3mi, 122°) 5000ft
HEPMO (5mi, 206°) 3100ft
MITOE (4mi, 288°) 2000ft
RW30-ZFRNNY (306°)FRNNY 4100ft
WUVON (5mi, 304°) 2700ft
MITOE (2mi, 304°) 2000ft
RW30-ZPARBB (292°)PARBB 4500ft
HEPMO (5mi, 273°) 3100ft
MITOE (4mi, 288°) 2000ft
 RNAVMITOE 2000ft
KOAK (7mi, 309°) 64ft
PLAZA (7mi, 298°)
SAU (10mi, 291°) 4000ft
SAU (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AANET1RAIDRVHFright351 (171)°DME 10.0miICAO rules
EMZOH3MYJAWVHFright124 (304)°DME 11.0miICAO rules
PIRAT2HUNTS0180 (0)°DME timedICAO rules
PIRAT2PASIFVHFleft239 (59)°DME 10.0miICAO rules
PIRAT2PIRATVHFleft239 (59)°DME 10.0miICAO rules
PIRAT2SUPERVHFleft274 (94)°DME 11.0miICAO rules
SHARR1LOCKEVHFright52 (232)°DME 7.0miICAO rules
SHARR1WRAPSVHFright72 (252)°DME 11.0miICAO rules
SKIZM2MYJAWVHFright124 (304)°DME 11.0miICAO rules
WNDSR2WEBRRVHFright339 (159)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
