Airports for X-Plane

Miami - Opa Locka Executive

Airport details

CountryUnited States of America
StateFlorida
RegionK7
AirspaceMiami Oceanic Ctr
MunicipalityMiami-Dade County
Elevation6ft (2m)
TimezoneGMT -5
Coordinates25.90860, -80.27717
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKOPF
IATA codeOPF
FAA codeOPF

Communication

Opa Locka Executive ATIS125.900
Opa Locka Executive CTAF134.675
Opa Locka Executive Clearance DEL119.200
Opa Locka Executive Ground Control120.025
Opa Locka Executive Tower134.675
Opa Locka Executive MIAMI Approach/Departure128.600

Approach frequencies

ILS-cat-IRW12111.5518.00mi
ILS-cat-IRW09L110.518.00mi
ILS-cat-IRW27R111.3518.00mi
3° GSRW12111.5518.00mi
3° GSRW09L110.518.00mi
3° GSRW27R111.3518.00mi
Nearby Points of Interest:
Opa-locka Thematic Resource Area
-
Baird House
-
Opa-locka Company administration building
-
Opa-locka Seaboard Air Line Railway Station
-
Harry Hurt Building
-
Crouse House
-
Sunshine State Arch
-
Hialeah Park Race Track
-
Miami Shores Thematic Resource
-
Clune Building
-
Country Club Estates TR
-
Grand Concourse Apartments
-
Lua Curtiss House II
-
Lua Curtiss House I
-
Millard–McCarty House
-
G. Carl Adams House
-
Hequembourg House
-
Hialeah Seaboard Air Line Railway Station
-
Glenn Curtiss Mansion
-
Bay Shore Historic District
-
Miami City Hospital, Building No. 1
-
Halissee Hall
-
Villa Providence
-
S & S Sandwich Shop
-
St. John's Baptist Church

Runway info

Runway 9L / 27R
 length2441m (8009ft)
 bearing87° / 267°
 width46m (150ft)
 surfaceasphalt
 blast zone61m (200ft) / 61m (200ft)
Runway 12 / 30
 length2074m (6804ft)
 bearing119° / 299°
 width46m (150ft)
 surfaceasphalt
 displ threshold244m (801ft) / 0m (0ft)
 blast zone60m (197ft) / 58m (190ft)
Runway 9R / 27L
 length1311m (4301ft)
 bearing87° / 267°
 width30m (100ft)
 surfaceasphalt

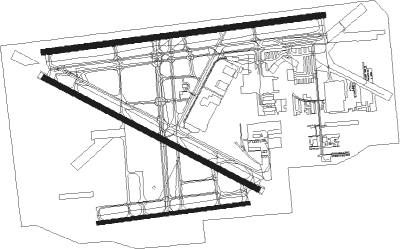

Airport layout


Taxiway locations

 B  C  D  E  F  G  H  J
 N  N1  N6  N8  P  R  S  T
 T2  T3  T8  V  Y  Y1  Y2  Y7
Parking locations

 Air  FBO  National  South  US  Wayman

Nearby beacons

codeidentifierdistbearingfrequency
DHPDOLPHIN (MIAMI) VORTAC7.5213°113.90
FLLFORT LAUDERDALE VOR/DME11.534°114.40
VKZVIRGINIA KEY VOR/DME11.5142°117.10
FXPRAIZ (FT LAUDERDALE) NDB16.6356°221
HSTHOMESTEAD TACAN25.7194°108.20
PBIPALM BEACH VORTAC47.414°115.70
ZBVBIMINI VORTAC54.5102°116.70
PHKPAHOKEE VOR/DME57335°115.40
UTXUNITED NDB60.1357°405

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW09 (ALL)
 FOLZZ1238mi28°
 HUSIL2119mi106°
 MELLZ1132mi148°
 MHITO1167mi230°
 GLADZ1175mi271°
 BNGOS163mi302°
 HURCN1163mi320°
 VACAY190mi338°
 AARPS1153mi342°
RW12
 FOLZZ1238mi28°
 HUSIL2119mi106°
 MELLZ1132mi148°
 MHITO1167mi230°
 GLADZ1175mi271°
 BNGOS163mi302°
 HURCN1163mi320°
 VACAY190mi338°
 AARPS1153mi342°
RW27 (ALL)
 FOLZZ1238mi28°
 HUSIL2119mi106°
 MELLZ1132mi148°
 MHITO1167mi230°
 GLADZ1175mi271°
 BNGOS163mi302°
 HURCN1163mi320°
 VACAY190mi338°
 AARPS1153mi342°
RW30
 FOLZZ1238mi28°
 HUSIL2119mi106°
 MELLZ1132mi148°
 MHITO1167mi230°
 GLADZ1175mi271°
 BNGOS163mi302°
 HURCN1163mi320°
 VACAY190mi338°
 AARPS1153mi342°

STAR starting pointsdistanceinbound heading
ALL
 DVALL345.661°
 BHHIA135.687°
 FROGZ141.090°
 PALMZ266.591°
 FORTL962.7110°
 BLUFI463.8204°
 TARPN139.8206°
 CUUDA134.3217°
 DEKAL735.0275°
 OLAHS142.9278°
 KYAKS148.5278°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09LOKANE (88°)OKANE 1600ft
RW09LWUDIP (101°)WUDIP
OKANE (16mi, 110°) 1600ft
 RNAVOKANE 1600ft
SAZBO (6mi, 87°) 1600ft
ZOLTA (3mi, 87°) 520ft
KOPF (2mi, 94°) 58ft
(4880mi, 108°) 257ft
JOLYN (4875mi, 288°)
JANUS (31mi, 72°) 2000ft
JANUS (turn)
RW12WUDIP (101°)WUDIP
JARNO (17mi, 91°) 1700ft
 RNAVJARNO 1700ft
ZIKNA (5mi, 119°) 1700ft
KOPF (6mi, 117°) 61ft
(4880mi, 108°) 208ft
ADGAY (4877mi, 288°)
JANUS (34mi, 69°) 2000ft
JANUS (turn)
RW27RLONNI (212°)LONNI
TOWES (23mi, 189°) 1700ft
IZROZ (5mi, 208°) 1700ft
 RNAVIZROZ 1700ft
JOLYN (5mi, 267°) 1600ft
KOPF (6mi, 265°) 65ft
(4880mi, 108°) 290ft
SAZBO (4886mi, 288°)
BRBRA (5mi, 308°) 2000ft
BRBRA (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BHHIA1GRACKVHFright224 (44)°DME 12.0miICAO rules
BHHIA1HULKYVHFright226 (46)°DME 10.0miICAO rules
BHHIA1PYREXVHFright225 (45)°DME 10.0miICAO rules
BLUFI4LEBURVHFleft10 (190)°< 17999ftDME 8.0miICAO rules
CUUDA1CHRCHVHFright343 (163)°DME 12.0miICAO rules
CUUDA1COLATVHFleft351 (171)°DME 12.0miICAO rules
CUUDA1COPINVHFleft347 (167)°DME 12.0miICAO rules
CUUDA1MACKLVHFleft29 (209)°DME 10.0miICAO rules
CUUDA1MNNTAVHFright14 (194)°DME 12.0miICAO rules
CUUDA1MUNROVHFright93 (273)°DME 10.0miICAO rules
CUUDA1RAFFTVHFright14 (194)°DME 11.0miICAO rules
CUUDA1WEHOOVHFright14 (194)°DME 10.0miICAO rules
DEKAL7DEKALVHFleft121 (301)°< 60000ftDME 4.0miICAO rules
DEKAL7MENDLVHFright160 (340)°DME 10.0miICAO rules
DEKAL7RAJAYVHFleft298 (118)°DME 10.0miICAO rules
DEKAL7ZBVNDBright122 (302)°< 60000ftDME 8.0miICAO rules
DVALL3CARNUVHFleft217 (37)°< 17999ft1.0min timedICAO rules
DVALL3WEVERVHFright248 (68)°1.0min timedICAO rules
FORTL9BANTYVHFleft282 (102)°DME 8.0miICAO rules
FORTL9FORTLVHFleft302 (122)°DME 4.0miICAO rules
FORTL9RSWNDBright321 (141)°1.0min timedICAO rules
FROGZ1BETTLVHFright325 (145)°DME 10.0miICAO rules
FROGZ1DANSEVHFright344 (164)°DME 10.0miICAO rules
FROGZ1FROGZVHFright319 (139)°DME 10.0miICAO rules
FROGZ1GAWKSVHFleft287 (107)°DME 15.0miICAO rules
FROGZ1HARAPVHFright317 (137)°DME 10.0miICAO rules
FROGZ1MATCYVHFright317 (137)°DME 10.0miICAO rules
OLAHS1IRRISVHFright186 (6)°DME 12.0miICAO rules
OLAHS1RAJAYVHFleft298 (118)°DME 10.0miICAO rules
OLAHS1SOCKIVHFright119 (299)°DME 10.0miICAO rules
OLAHS1SOFARVHFright110 (290)°DME 10.0miICAO rules
OLAHS1WEBABVHFright186 (6)°DME 12.0miICAO rules
OLAHS1ZQANDBright118 (298)°DME 11.0miICAO rules
PALMZ2DUMDYVHFright340 (160)°DME 4.0miICAO rules
PALMZ2PRIVYVHFright281 (101)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
