Airports for X-Plane

Oxford - Waterbury Oxford

Airport details

CountryUnited States of America
StateConnecticut
RegionK6
AirspaceBoston Ctr
MunicipalityOxford
Elevation726ft (221m)
TimezoneGMT -5
Coordinates41.47855, -73.13525
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKOXC
IATA codeOXC
FAA codeOXC

Communication

Waterbury Oxford AWOS 3132.975
Waterbury Oxford CTAF118.475
Waterbury Oxford UNICOM122.700
Waterbury Oxford NEW YORK Clearance DEL135.100
Waterbury Oxford Ground Control121.650
Waterbury Oxford OXFORD Tower118.475
Waterbury Oxford NEW YORK Approach/Departure135.100
Waterbury Oxford NEW YORK Approach/Departure124.075

Approach frequencies

ILS-cat-IRW36109.5518.00mi
3° GSRW36109.5518.00mi

Runway info

Runway 18 / 36
 length1770m (5807ft)
 bearing168° / 348°
 width30m (100ft)
 surfaceasphalt
 displ threshold91m (299ft) / 152m (499ft)

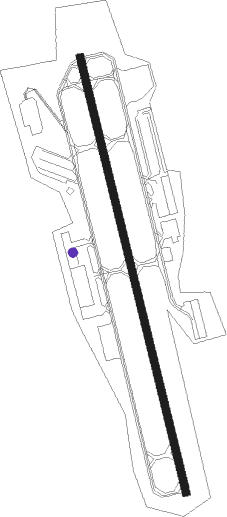

Airport layout - parking location Atlantic


Taxiway locations

 A  B  C  E  G  H
Parking locations

 Atlantic  Northwest  Restaurant  South

Nearby beacons

codeidentifierdistbearingfrequency
HVNHAVEN DME17.1131°109.80
BDRBRIDGEPORT VOR/DME19178°108.80
MADMADISON VOR/DME22.2110°110.40
CMKCARMEL VOR/DME23.3246°116.60
PWLPAWLING (POUGHKEEPSIE) VOR/DME27.2302°114.30
HFDHARTFORD VOR/DME28.175°114.90
IGNKINGSTON VOR/DME32.8285°117.60
CCCCALVERTON VOR/DME36.3149°117.20
SKUSTANWYCK (NEWBURGH) NDB41273°261
DPKDEER PARK VOR/DME41.9194°117.70
FOKSUFFOLK CO (WESTHAMPTON B TACAN44.7142°111
FRFRIKK (FARMINGDALE) NDB44.9206°407
BAFBARNES (WESTFIELD/SPRINGF VORTAC45.132°113
CTRCHESTER VOR/DME49.513°115.10
HTOHAMPTON (EAST HAMPTON) VORTAC49.9124°113.60
CEFWESTOVER(SPRINGFIELD/CHIC TACAN5140°114
LGALA GUARDIA (NEW YORK) VOR/DME53.3227°113.10
PFHPHILMONT (HUDSON) NDB53.4323°272
TEBTETERBORO VOR/DME56.4236°108.40
JFKKENNEDY (NEW YORK) VOR/DME58.3217°115.90
TETORBY (TETERBORO) NDB60.6236°214
CRICANARSIE VOR/DME62.3221°112.30

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
STAR starting pointsdistanceinbound heading
ALL
 BDR1, DENNA227.2122°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW18BISCO (208°)BISCO
WEXNO (7mi, 259°) 3000ft
RW18PWL (122°)PWL
MOONI (15mi, 116°) 3000ft
WEXNO (7mi, 83°) 3000ft
RW18WEXNO (168°)WEXNO 6000ft
WEXNO (turn) 3000ft
 RNAVWEXNO 3000ft
ARQEB (5mi, 168°) 2200ft
GICEN (2mi, 168°) 1580ft
KOXC (3mi, 168°) 777ft
(4651mi, 120°) 1130ft
CUTMA (4647mi, 299°) 2500ft
CUTMA (turn)
RW36BDR (358°)BDR
CUTMA (7mi, 15°) 2500ft
RW36MUVGE (314°)MUVGE
CUTMA (9mi, 280°) 2500ft
RW36ZATMI (168°)ZATMI
CUTMA (16mi, 168°) 2500ft
CUTMA (turn) 2500ft
 RNAVCUTMA 2500ft
DAAVY (6mi, 348°) 2500ft
HUMOM (4mi, 348°) 1300ft
KOXC (2mi, 348°) 742ft
(4651mi, 120°) 971ft
ZATMI (4653mi, 300°) 3000ft
ZATMI (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BDR1LOVESVHFleft336 (156)°1.0min timedICAO rules
DENNA2LOVESVHFleft336 (156)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
