Airports for X-Plane

Portland - Portland Intl

Airport details

CountryUnited States of America
StateOregon
RegionK1
AirspaceSeattle Ctr
MunicipalityPortland
Elevation20ft (6m)
TimezoneGMT -8
Coordinates45.58871, -122.59687
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKPDX
IATA codePDX
FAA codePDX

Communication

Portland Intl KPDX D-ATIS128.350
Portland Intl PORTLAND_INTL UNIC122.950
Portland Intl PORTLAND CLD120.125
Portland Intl PORTLAND Ground Control121.900
Portland Intl PORTLAND Ground Control132.275
Portland Intl PORTLAND Tower123.750
Portland Intl PORTLAND Tower118.700
Portland Intl PORTLAND Approach/Departure118.100
Portland Intl PORTLAND Approach126.900
Portland Intl PORTLAND Departure127.850
Portland Intl PORTLAND Departure124.350

Approach frequencies

LOCRW21108.918.00mi
ILS-cat-IIIRW10R110.518.00mi
ILS-cat-IRW28R111.318.00mi
ILS-cat-IRW28L110.518.00mi
ILS-cat-IRW10L111.318.00mi
3° GSRW28R111.318.00mi
3° GSRW28L110.518.00mi
3° GSRW10R110.518.00mi
3° GSRW10L111.318.00mi
Nearby Points of Interest:
John Stanger House
-
Raymond and Catherine Fisher House
-
Shriners Hospital for Crippled Children
-
Oliver and Margaret Jeffrey House
-
Edward H. and Bertha R. Keller House
-
Zimmerman–Rudeen House
-
Frank C. Barnes House
-
Virgil and Beulah Crum House
-
Tannler–Armstrong House
-
Louis and Elizabeth Woerner House
-
Thomas J. Autzen House
-
Clovelly Garden Apartments
-
Charles Crook House
-
Henry C. and Wilhemina Bruening House
-
Jennie Bramhall House
-
Villa St. Rose
-
Oregon State Bank Building
-
Emerson Apartments
-
William A. Haseltine House
-
Lewis T. Gilliland House
-
Vancouver National Historic Reserve Historic District
-
Wilson–Chambers Mortuary
-
Fred O. Miller House
-
Henry B. Miller House
-
Irvington Tennis Club

Runway info

Runway 10L / 28R
 length2991m (9813ft)
 bearing111° / 291°
 width46m (151ft)
 surfaceasphalt
 displ threshold394m (1293ft) / 165m (541ft)
 blast zone121m (397ft) / 122m (400ft)
Runway 10R / 28L
 length3349m (10988ft)
 bearing111° / 291°
 width45m (148ft)
 surfaceasphalt
 blast zone122m (400ft) / 124m (407ft)
Runway 3 / 21
 length1827m (5994ft)
 bearing55° / 235°
 width45m (148ft)
 surfaceasphalt

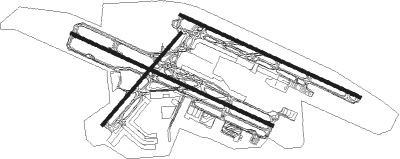

Airport layout


Taxiway locations

 A  A1  A2  A3  A4  A5  A6  B
 B1  B2  B3  B4  B5  B6  B8  C
 C1  C3  C5  C6  C8  E  E2  E3
 E4  E5  E6  F  G  H  J  K
 K1  M  T  V  W
Parking locations

 A1  A10  A11  A12  A13  A14  A2  A3
 A4  A6  A8  A9  Ameriflight  ANG  Atlantic  B1
 B2  B3  C1  C10  C11  C12  C13  C14
 C15  C16  C17  C18  C19  C2  C20  C21
 C22  C23  C3  C4  C5  C6  C7  C8
 C9  Central  D1  D10  D11  D12  D13  D14
 D15  D3  D4  D5  D6  D7  D8  D9
 DHL  E1  E10  E11  E12  E2  E3  E4
 E5  E6  E7  E9  Empire  Flightcraft  Northeast  South
 Southeast  UPS  USAFR

Nearby beacons

codeidentifierdistbearingfrequency
CBUCOLUMBIA (PORTLAND) TACAN0.6270°109.20
BTGBATTLE GROUND VORTAC9.52°116.60
PNDBANKS (PORTLAND) NDB19275°356
UBGNEWBERG VOR/DME21.3238°117.40
SLTURNO (SALEM) NDB46.9206°266
LWGLEWISBURG (CORVALLIS) NDB65.1215°225

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW03
 PTLD259mi217°
RW10 (ALL)
 LAVAA6107mi65°
 WHAMY4184mi121°
 CASCD2117mi144°
 HRMNS539mi162°
 MINNE567mi198°
 PTLD259mi217°
RW21
 PTLD259mi217°
RW28 (ALL)
 PTLD259mi217°
RW28L
 LAVAA6107mi65°
 WHAMY4184mi121°
 CASCD2117mi144°
 HRMNS539mi162°
 MINNE567mi198°
RW28R
 LAVAA6107mi65°
 WHAMY4184mi121°
 CASCD2117mi144°
 HRMNS539mi162°
 MINNE567mi198°

STAR starting pointsdistanceinbound heading
RW10 (ALL)
 TMBRS220.48°
 KRATR221.0198°
 HHOOD427.0275°
RW21
 TMBRS220.48°
 KRATR221.0198°
 HHOOD427.0275°
RW28 (ALL)
 TMBRS220.48°
 KRATR221.0198°
 HHOOD427.0275°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10LYHOGUM (103°)HOGUM
BUXOM (7mi, 86°) 3000ft
RW10LYPITER (124°)PITER
ANINE (9mi, 137°) 4000ft
BUXOM (5mi, 137°) 3000ft
 RNAVBUXOM 3000ft
TRAYL (4mi, 111°) 2900ft
BLAZR (3mi, 111°) 2000ft
KPDX (6mi, 114°) 79ft
(6735mi, 110°) 800ft
BTG (6731mi, 290°) 4200ft
BTG (turn)
RW10LZBUXOM (112°)BUXOM
TRAYL (4mi, 111°) 2300ft
TTIDE (2mi, 111°) 2300ft
BLAZR (turn) 2000ft
RW10LZCIZZL (178°)CIZZL 5000ft
DAYSS (4mi, 291°) 4500ft
RIPPP (3mi, 263°) 3500ft
TTIDE (4mi, 165°) 2300ft
BLAZR (turn) 2000ft
RW10LZMYCRO (74°)MYCRO 5000ft
GAMBE (5mi, 338°) 4000ft
TTIDE (5mi, 61°) 2300ft
BLAZR (turn) 2000ft
RW10LZVOODU (156°)VOODU 5000ft
RIPPP (5mi, 231°) 3500ft
TTIDE (4mi, 165°) 2300ft
BLAZR (turn) 2000ft
 RNAVBLAZR 2000ft
KPDX (6mi, 114°) 79ft
(6735mi, 110°) 800ft
BATYL (6731mi, 290°) 4400ft
BATYL (turn)
RW10RYHOGUM (103°)HOGUM
WETTR (5mi, 82°) 4000ft
RW10RYPITER (124°)PITER
WETTR (13mi, 143°) 4000ft
 RNAVWETTR 4000ft
SAUVI (4mi, 111°) 2900ft
POWLZ (3mi, 111°) 2000ft
JADNU (4mi, 111°) 860ft
KPDX (4mi, 109°) 76ft
(6735mi, 110°) 440ft
MULES (6739mi, 290°) 5000ft
MULES (turn)
RW10RZCIZZL (178°)CIZZL 5000ft
DAYSS (4mi, 291°) 4500ft
CATUL (3mi, 264°) 3500ft
POWLZ (4mi, 167°) 2000ft
RW10RZMYCRO (74°)MYCRO 5000ft
TOWWN (4mi, 331°) 3800ft
MIVUE (3mi, 26°) 2800ft
POWLZ (2mi, 89°) 2000ft
RW10RZSCAPO (111°)SCAPO
WETTR (6mi, 111°) 4000ft
SAUVI (4mi, 111°) 2900ft
POWLZ (3mi, 111°) 2000ft
RW10RZVOODU (156°)VOODU 5000ft
CATUL (5mi, 233°) 3500ft
POWLZ (4mi, 167°) 2000ft
 RNAVPOWLZ 2000ft
KPDX (7mi, 110°) 76ft
(6735mi, 110°) 440ft
MULES (6739mi, 290°) 5000ft
MULES (turn)
RW28LXMAVER (1°)MAVER
WALAP (12mi, 62°) 4000ft
HPSTR (15mi, 18°) 3700ft
RW28LXREEDI (286°)REEDI
HPSTR (5mi, 270°) 3700ft
RW28LXSHAFR (275°)SHAFR 6700ft
REEDI (7mi, 244°) 5700ft
HPSTR (5mi, 270°) 3700ft
 RNAVHPSTR 3700ft
HANAH (4mi, 291°) 2900ft
ADDUM (3mi, 291°) 2000ft
YINUP (2mi, 291°) 1280ft
KPDX (5mi, 293°) 78ft
(6735mi, 110°) 2100ft
UBG (6756mi, 290°) 4000ft
UBG (turn)
RW28LYLIQWD (210°)LIQWD 6000ft
SSSUN (13mi, 162°) 3200ft
CATMI (4mi, 226°) 1900ft
EVIDE (2mi, 266°) 1500ft
RW28LYSHAFR (275°)SHAFR 6700ft
DLILE (5mi, 273°) 5200ft
EJAYE (8mi, 273°) 3000ft
CATMI (3mi, 274°) 1900ft
EVIDE (2mi, 266°) 1500ft
 RNAVEVIDE 1500ft
MUBAE (1mi, 264°)
PULOE (turn)
KPDX (3mi, 294°) 78ft
(6735mi, 110°) 2100ft
UBG (6756mi, 290°) 4000ft
UBG (turn)
RW28LZHPSTR (292°)HPSTR
HANAH (4mi, 291°) 2900ft
ADDUM (3mi, 291°) 2000ft
RW28LZWIDMR (336°)WIDMR 5000ft
DSHUT (6mi, 42°) 3200ft
NOLGE (2mi, 7°) 2500ft
ADDUM (2mi, 308°) 2000ft
 RNAVADDUM 2000ft
KPDX (7mi, 292°) 78ft
(6735mi, 110°) 2100ft
UBG (6756mi, 290°) 4000ft
UBG (turn)
RW28RXMAVER (1°)MAVER
CUKIS (17mi, 46°) 4000ft
NACIY (8mi, 21°) 3700ft
RW28RXREEDI (286°)REEDI
NACIY (6mi, 275°) 3700ft
RW28RXSHAFR (275°)SHAFR 6700ft
REEDI (7mi, 244°) 5700ft
NACIY (6mi, 275°) 3700ft
 RNAVNACIY 3700ft
OMMSI (3mi, 291°) 2900ft
TOLOC (3mi, 291°) 2000ft
WUGPU (2mi, 291°) 1260ft
KPDX (5mi, 288°) 85ft
(6735mi, 110°) 600ft
BTG (6731mi, 290°) 4200ft
BTG (turn)
RW28RYLIQWD (210°)LIQWD 6000ft
SSSUN (13mi, 162°) 3200ft
CATMI (4mi, 226°) 1900ft
DIKKE (1mi, 266°) 1500ft
RW28RYSHAFR (275°)SHAFR 6700ft
DLILE (5mi, 273°) 5200ft
EJAYE (8mi, 273°) 3000ft
CATMI (3mi, 274°) 1900ft
DIKKE (1mi, 266°) 1500ft
 RNAVDIKKE 1500ft
YANNO (1mi, 269°)
HULAB (turn)
KPDX (3mi, 286°) 85ft
(6735mi, 110°) 600ft
BATYL (6731mi, 290°) 4400ft
BATYL (turn)
RW28RZNACIY (290°)NACIY
OMMSI (3mi, 291°) 2900ft
TOLOC (3mi, 291°) 2000ft
RW28RZWIDMR (336°)WIDMR 5000ft
BYKES (6mi, 46°) 3200ft
TOLOC (4mi, 343°) 2000ft
 RNAVTOLOC 2000ft
KPDX (7mi, 289°) 85ft
(6735mi, 110°) 600ft
BATYL (6731mi, 290°) 4400ft
BATYL (turn) 4400ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
HELNS6HELNSVHFleft360 (180)°< 17999ft1.0min timedICAO rules
HHOOD4DUFURVHFleft87 (267)°DME 10.0miICAO rules
HHOOD4JKNOXVHFright75 (255)°DME 10.0miICAO rules
HHOOD4JOTBAVHFleft103 (283)°DME 10.0miICAO rules
HHOOD4LUUNDVHFleft52 (232)°DME 10.0miICAO rules
KRATR2HELNSVHFleft360 (180)°< 17999ft1.0min timedICAO rules
OCITY3MOXEEVHFright163 (343)°1.5min timedICAO rules
OCITY3PORTLVHFright163 (343)°DME 8.0miICAO rules
OCITY3VANTZVHFright163 (343)°1.5min timedICAO rules
TMBRS2GALLOVHFright145 (325)°DME 10.0miICAO rules
TMBRS2MOXEEVHFright163 (343)°1.5min timedICAO rules
TMBRS2PORTLVHFright163 (343)°DME 8.0miICAO rules
TMBRS2SPNSRVHFright168 (348)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
