Airports for X-Plane

Pahokee - Palm Beach County Glades Airport

Airport details

CountryUnited States of America
StateFlorida
RegionK7
AirspaceMiami Oceanic Ctr
MunicipalityPalm Beach County
Elevation15ft (5m)
TimezoneGMT -5
Coordinates26.78503, -80.69336
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKPHK
IATA codePHK
FAA codePHK

Communication

Palm Beach County Glades Airport CTAF/UNICOM122.800

Runway info

Runway 18 / 36
 length1256m (4121ft)
 bearing173° / 353°
 width23m (75ft)
 surfaceasphalt
 displ threshold31m (102ft) / 16m (52ft)
 blast zone17m (56ft) / 0m (0ft)

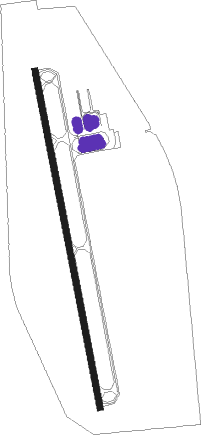

Airport layout - parking location Tie-Down


Parking locations

 Tie-Down

Nearby beacons

codeidentifierdistbearingfrequency
PHKPAHOKEE VOR/DME0.1140°115.40
UTXUNITED NDB20.571°405
PBIPALM BEACH VORTAC33.1100°115.70
LBVLA BELLE VORTAC37.5274°110.40
FXPRAIZ (FT LAUDERDALE) NDB41.7147°221
FPRFORT PIERCE NDB45.425°275
FLLFORT LAUDERDALE VOR/DME51.2143°114.40
TRVTREASURE (VERO BEACH) VORTAC54.713°117.30
DHPDOLPHIN (MIAMI) VORTAC61.9161°113.90

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW18PHK (320°)PHK
WIKIN (11mi, 352°) 1500ft
WIKIN (turn) 1500ft
 RNAVWIKIN 1500ft
SETUE (6mi, 173°) 1500ft
KPHK (5mi, 173°) 71ft
(4907mi, 108°) 342ft
PASAE (4905mi, 288°) 2000ft
PASAE (turn)
RW36HEDLY (335°)HEDLY
PASAE (4mi, 287°) 1500ft
RW36PHK (320°)PHK
PASAE (11mi, 173°) 1500ft
PASAE (turn) 1500ft
RW36THNDR (48°)THNDR
PASAE (11mi, 97°) 1500ft
PASAE (turn) 1500ft
 RNAVPASAE 1500ft
HOREP (6mi, 353°) 1500ft
KPHK (5mi, 353°) 71ft
(4907mi, 108°) 416ft
WIKIN (4909mi, 288°) 2000ft
WIKIN (turn)
