Airports for X-Plane

Chicago/prospect Heights/wheeling - Chicago Executive

Airport details

CountryUnited States of America
StateIllinois
RegionK5
AirspaceChicago Ctr
MunicipalityProspect Heights
Elevation645ft (197m)
TimezoneGMT -6
Coordinates42.11428, -87.90153
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKPWK
IATA codePWK
FAA codePWK

Communication

Chicago Executive ATIS124.200
Chicago Executive Clearance DEL124.700
Chicago Executive Ground Control121.700
Chicago Executive Tower119.900
Chicago Executive CHICAGO Approach120.550
Chicago Executive CHICAGO Departure120.550

Approach frequencies

ILS-cat-IRW16109.7518.00mi
3° GSRW16109.7518.00mi

Runway info

Runway 16 / 34
 length1526m (5007ft)
 bearing152° / 332°
 width46m (151ft)
 surfaceasphalt
 blast zone166m (545ft) / 90m (295ft)
Runway 12 / 30
 length1347m (4419ft)
 bearing112° / 292°
 width23m (75ft)
 surfaceasphalt
 displ threshold90m (295ft) / 135m (443ft)
Runway 6 / 24
 length1122m (3681ft)
 bearing70° / 250°
 width15m (49ft)
 surfaceconcrete
 displ threshold113m (371ft) / 384m (1260ft)

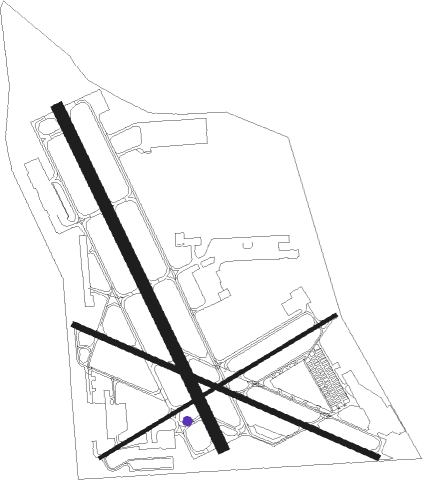

Airport layout - taxiway location L4


Taxiway locations

 A  B  C  D  E  K  K2  K3
 K5  L  L1  L2  L3  L4  L5  Y
 Z
Parking locations

 Atlantic  Customs  Dog  GA  Hangar  Hawthorne  NE  Signature
 SW

Nearby beacons

codeidentifierdistbearingfrequency
OBKNORTHBROOK VOR/DME6.8335°113
GCODME7.2180°108.25
UGWAUKE (CHICAGO/WAUKEGAN) NDB21.416°379
DPADUPAGE (CHICAGO) VOR/DME24.1243°108.40
MXKEDZI (CHICAGO) NDB24.3150°248
ENWDME29.1356°109.20
RAPASER (RACINE) NDB34.10°206
BUU(BURLINGTON) DME38.8325°114.50
JOTJOLIET VOR/DME38.8216°112.30
CGTCHICAGO HEIGHTS VORTAC39.1151°114.20
HRK(RACINE) DME39.18°117.70
GYGARIE (GARY) NDB41.4133°236
EONPEOTONE VORTAC50.9173°113.20
LJT(MILWAUKEE) DME60352°115.65
DTGDWIGHT NDB63.5209°344

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW12
 MONKZ5183mi160°
 JORJO593mi190°
RW16
 MONKZ5183mi160°
 JORJO593mi190°
RW30
 MONKZ5183mi160°
 JORJO593mi190°
RW34
 MONKZ5183mi160°
 JORJO593mi190°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16FILLZ (117°)FILLZ
HIGUH (8mi, 74°) 2500ft
RW16HIGUH (152°)HIGUH 2500ft
RW16OYFAM (196°)OYFAM
HIGUH (8mi, 254°) 2500ft
 RNAVHIGUH 2500ft
PAMME (6mi, 152°) 2300ft
FUGIO (3mi, 152°) 1320ft
KPWK (3mi, 151°) 695ft
(5312mi, 116°) 1200ft
DEERE (5299mi, 296°) 2100ft
DEERE (turn)
