Airports for X-Plane

Racine - Batten Intl

Airport details

CountryUnited States of America
StateWisconsin
RegionK5
AirspaceChicago Ctr
MunicipalityRacine
Elevation671ft (205m)
TimezoneGMT -6
Coordinates42.76117, -87.81392
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKRAC
IATA codeRAC
FAA codeRAC

Communication

Batten Intl CTAF/UNICOM123.075
Batten Intl MILWAUKEE Approach/Departure120.150

Approach frequencies

ILS-cat-IRW04108.718.00mi
3° GSRW04108.718.00mi
Nearby Points of Interest:
Lincoln School
-
No. 4 Engine House
-
Karel Jonas House
-
Racine Depot
-
Hansen House (Racine, Wisconsin)
-
McClurg Building
-
Chauncey Hall Building
-
Old Main Street Historic District
-
Rickeman Grocery Building
-
Kaiser's
-
Mitchell Lewis Building
-
Badger Building
-
St. Luke's Episcopal Church, Chapel, Guildhall, and Rectory
-
Racine Elks Club, Lodge No. 252
-
Racine County Courthouse
-
George Bray Neighborhood Center
-
Memorial Hall
-
Uptown Theater
-
George Murray House
-
Eli R. Cooley House
-
Chauncey Hall House
-
Johnson Wax Headquarters
-
Thomas P. Hardy House
-
Racine College
-
South Milwaukee Post Office

Runway info

Runway 4 / 22
 length2006m (6581ft)
 bearing46° / 226°
 width30m (100ft)
 surfaceconcrete
 displ threshold224m (735ft) / 119m (390ft)
Runway 14 / 32
 length1347m (4419ft)
 bearing125° / 305°
 width30m (100ft)
 surfaceasphalt
 displ threshold246m (807ft) / 0m (0ft)

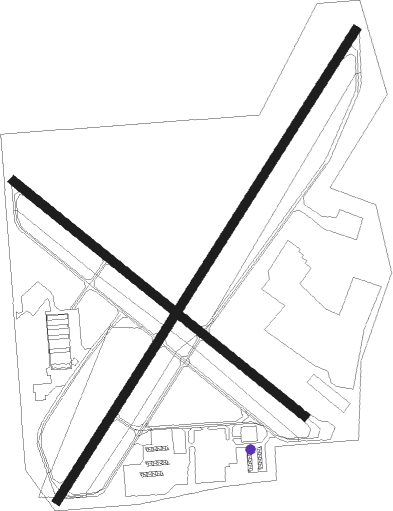

Airport layout - parking location GA3


Parking locations

 GA1  GA2  GA3  GA4

Nearby beacons

codeidentifierdistbearingfrequency
HRK(RACINE) DME0321°117.70
RAPASER (RACINE) NDB6227°206
ENWDME11216°109.20
UGWAUKE (CHICAGO/WAUKEGAN) NDB17.8178°379
BUU(BURLINGTON) DME21.9262°114.50
LJT(MILWAUKEE) DME23.1327°115.65
BAEBADGER (MILWAUKEE) VOR/DME29.7307°116.40
OBKNORTHBROOK VOR/DME32.9194°113
BJBWEST BEND VOR41.9335°109.80
GCODME46.2187°108.25
RYVROCK RIVER (WATERTOWN) NDB47294°371
UNUJUNEAU NDB55.9307°344
DPADUPAGE (CHICAGO) VOR/DME57.4212°108.40

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
ALL
 UECKR649mi156°
 ACCRA551mi194°

STAR starting pointsdistanceinbound heading
ALL
 GOPAC226.795°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04BRAVE (278°)BRAVE
PASQO (26mi, 256°) 2600ft
JENFO (4mi, 299°) 2600ft
RW04VEENA (83°)VEENA
JENFO (16mi, 108°) 2600ft
 RNAVJENFO 2600ft
UCLID (6mi, 45°) 2600ft
KRAC (6mi, 45°) 713ft
(5309mi, 116°) 988ft
PUYAF (5306mi, 296°)
MOXUE (9mi, 119°)
PASQO (18mi, 241°) 2600ft
PASQO (turn)
RW22BRAVE (278°)BRAVE
SAXON (19mi, 305°) 2300ft
SAXON (turn) 2300ft
 RNAVSAXON 2300ft
PUYAF (6mi, 226°) 2300ft
KRAC (5mi, 226°) 721ft
(5309mi, 116°) 949ft
UCLID (5312mi, 296°)
VEENA (18mi, 274°) 3000ft
VEENA (turn)
RW32BRAVE (278°)BRAVE
VOFGO (13mi, 256°) 2300ft
RW32OBK (14°)OBK
IGFIR (24mi, 35°) 2300ft
VOFGO (5mi, 52°) 2300ft
 RNAVVOFGO 2300ft
SAYMU (6mi, 305°) 2300ft
KRAC (5mi, 305°) 698ft
(5309mi, 116°) 1060ft
CIRIP (5311mi, 296°)
VEENA (20mi, 258°) 3000ft
VEENA (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
GOPAC2LEEDNVHFright181 (1)°DME 10.0miICAO rules
GOPAC2ZOWROVHFright273 (93)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
