Airports for X-Plane

Riverside - Riverside Muni

Airport details

CountryUnited States of America
StateCalifornia
RegionK2
AirspaceLos Angeles Ctr
MunicipalityRiverside
Elevation814ft (248m)
TimezoneGMT -8
Coordinates33.95175, -117.44760
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKRAL
IATA codeRAL
FAA codeRAL

Communication

Riverside Muni ATIS128.800
Riverside Muni Ground Control121.700
Riverside Muni Tower121.000
Riverside Muni SOCAL Approach135.400
Riverside Muni SOCAL Departure135.400

Approach frequencies

ILS-cat-IRW09110.918.00mi
3° GSRW09110.918.00mi

Runway info

Runway 9 / 27
 length1647m (5404ft)
 bearing101° / 281°
 width30m (100ft)
 surfaceasphalt
Runway 16 / 34
 length871m (2858ft)
 bearing178° / 358°
 width15m (50ft)
 surfaceasphalt

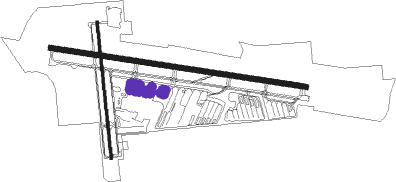

Airport layout - parking location Transient


Taxiway locations

 A  B  C  D  E  F  G  H
 J  K  L
Parking locations

 Aris  CAP  Commemorative  FBO  FSS  Helicopter  Ramp  Riverside
 Transient  Western

Nearby beacons

codeidentifierdistbearingfrequency
RALRIVERSIDE VOR0.2327°112.40
PDZPARADISE (ONTARIO) VORTAC4.5248°112.20
SBPETIS (SAN BERNARDINO) NDB7.438°397
RIVMARCH (RIVERSIDE) TACAN9105°113
HDFHOMELAND (RIVERSIDE) VOR16.7124°113.40
POMPOMONA VORTAC18.5290°110.40
ELBEL TORO (SANTA ANA) VOR/DME21.7226°117.20
SLISEAL BEACH (LOS ALAMITOS) VORTAC31.9254°115.70
VCVVICTORVILLE VOR/DME38.65°109.05
NFGCAMP PENDLETON (OCEANSIDE TACAN40.7175°111.80
OCNOCEANSIDE VORTAC42.7178°115.30
LAXLOS ANGELES VORTAC49269°113.60
PMDPALMDALE VORTAC50.9318°114.50
SXCSANTA CATALINA VORTAC59.6239°111.40
JLIJULIAN VORTAC65133°114
HECHECTOR VORTAC70.449°112.70

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
STAR starting pointsdistanceinbound heading
ALL
 ZIGGY712.8223°
 SETER517.1279°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09PIRRO (101°)PIRRO
JASER (10mi, 101°) 3300ft
RW09POM (110°)POM
JASER (7mi, 128°) 3300ft
RW09PRADO (85°)PRADO
JASER (7mi, 53°) 3300ft
 RNAVJASER 3300ft
EXPAM (7mi, 101°) 2500ft
KRAL (6mi, 102°) 801ft
(6755mi, 106°) 1092ft
JIKUB (6752mi, 286°)
HDF (14mi, 130°) 6000ft
HDF (turn)
RW27BANDS (276°)BANDS
CUGVI (9mi, 272°) 8600ft
WENVA (7mi, 272°) 5100ft
PAYIG (3mi, 281°) 4100ft
 RNAVPAYIG 4100ft
LAYEY (3mi, 281°) 3100ft
KRAL (7mi, 280°) 868ft
(6755mi, 106°) 1218ft
ICIYE (6758mi, 286°)
PRADO (14mi, 261°) 4000ft
PRADO (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
SETER5JLINDBleft108 (288)°1.5min timedICAO rules
ZIGGY7PETISVHFright76 (256)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
