Airports for X-Plane

Red Bluff - Red Bluff Muni

Airport details

CountryUnited States of America
StateCalifornia
RegionK2
AirspaceOakland Ctr
MunicipalityRed Bluff
Elevation352ft (107m)
TimezoneGMT -8
Coordinates40.15530, -122.25243
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKRBL
IATA codeRBL
FAA codeRBL

Communication

Red Bluff Muni ASOS120.775

Runway info

Runway 15 / 33
 length1658m (5440ft)
 bearing165° / 345°
 width30m (100ft)
 surfaceasphalt
 blast zone46m (151ft) / 0m (0ft)

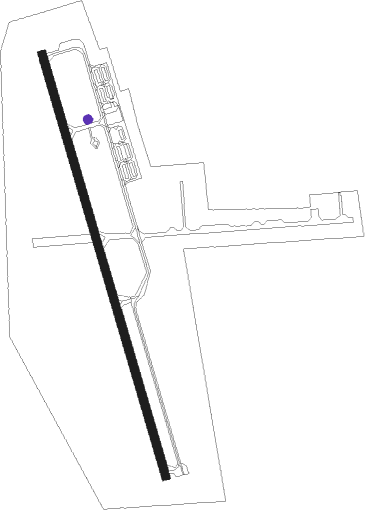

Airport layout - parking location Helo


Taxiway locations

 A
Parking locations

 Commercial  Helo  Transient

Nearby beacons

codeidentifierdistbearingfrequency
RBLRED BLUFF VORTAC3.4164°115.70
RDDREDDING VOR/DME21354°108.40
UKKEARN (UKIAH) NDB69.8228°371

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW15BEIRA (156°)BEIRA
AXHEC (8mi, 141°) 4500ft
RW15ITMOR (203°)ITMOR
AXHEC (17mi, 233°) 4500ft
RW15RBL (344°)RBL
AXHEC (19mi, 344°) 4500ft
AXHEC (turn) 4500ft
 RNAVAXHEC 4500ft
GEBXA (10mi, 165°) 2000ft
VEBCU (3mi, 165°) 1020ft
KRBL (2mi, 163°) 387ft
(6851mi, 108°) 597ft
TOWAN (6854mi, 288°) 3500ft
TOWAN (turn)
RW33GONGS (334°)GONGS
TOWAN (10mi, 316°) 3500ft
RW33HENLE (36°)HENLE
IMYIB (7mi, 92°) 5800ft
TOWAN (6mi, 92°) 3500ft
RW33RBL (344°)RBL
TOWAN (14mi, 165°) 3500ft
TOWAN (turn) 3500ft
 RNAVTOWAN 3500ft
VIJIX (11mi, 345°) 2000ft
KRBL (6mi, 345°) 384ft
(6851mi, 108°) 602ft
PUVGE (6849mi, 288°)
HOMAN (10mi, 53°) 4000ft
HOMAN (turn)
